6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
54
2 Servicing work on timing chain end

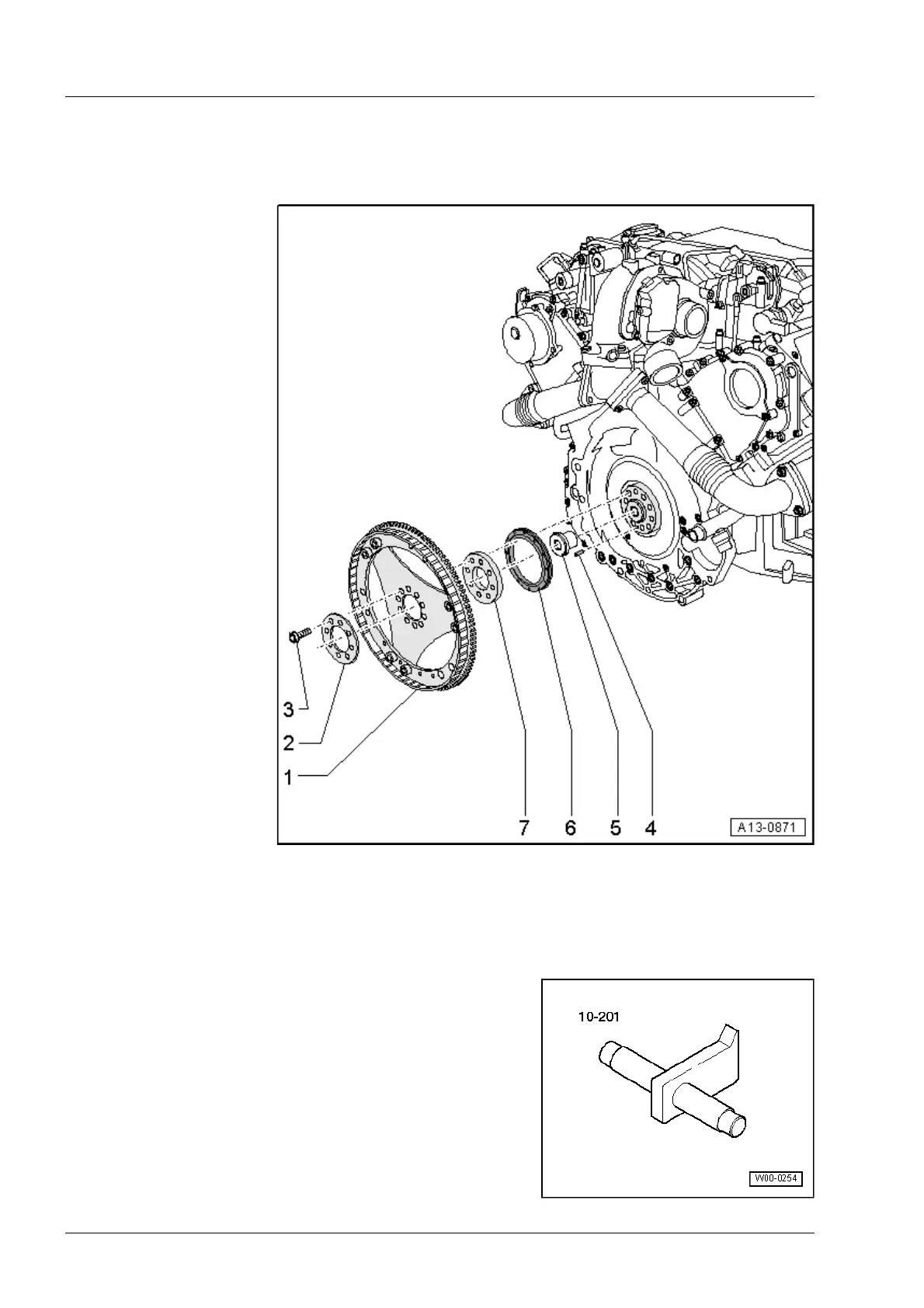

2.1 Drive plate - exploded view of components
1- Drive plate
" Removing and in-
stalling ⇒ page 54
2- Washer
" Thickness 3.4 mm
3- 30 Nm + 90° (
1
/
4
turn)
further
" Renew
4 - Dowel sleeve
5 - Centring sleeve for
torque converter
6 - Crankshaft oil seal (on
timing chain end)
" Removing and in-
stalling ⇒ page 55
7- Shim
" Thickness 1.5 mm
2.2 Removing and installing drive plate
Special tools and workshop equipment required
♦ Counterhold tool -10-201-
