6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
4 Dismantling and assembling pistons and conrods
99
6

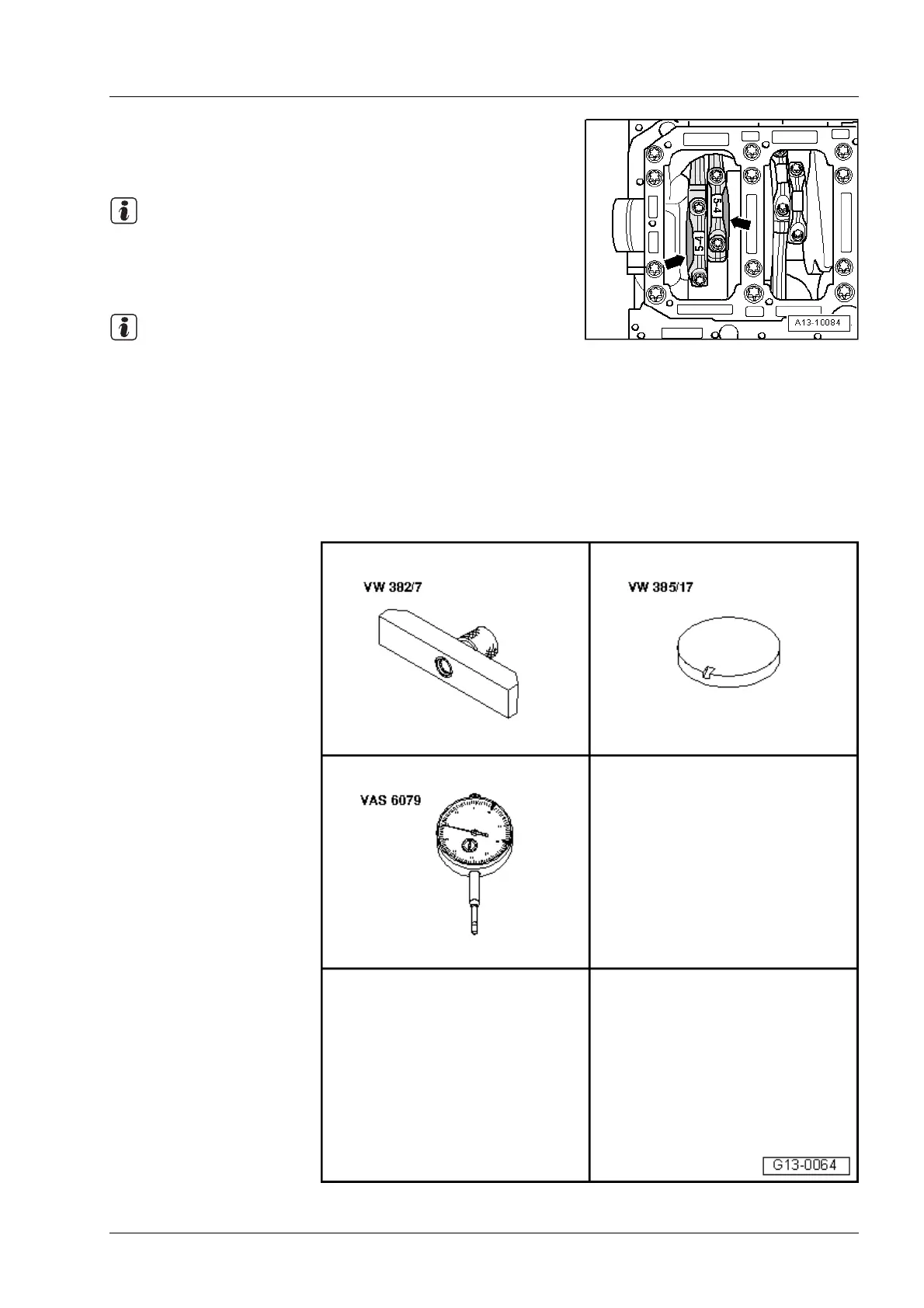

Conrod installation position
The larger contact shoulder on the conrod -arrows- faces to-
wards the adjacent main bearing.
Illustration shows front pair of conrods.
4.2 Checking piston projection at “TDC”
Piston projection at “TDC” must be measured when install-
ing new pistons or a short engine. Depending upon piston
projection, install the corresponding cylinder head gasket
according to the table below:
If the measured values for piston projection are not the
same for all pistons, use the highest value to determine the
correct gasket size.
The cylinder head gasket must be determined separately
for each cylinder bank.
Special tools and workshop
equipment required
-VW 382/7- from meas-
uring tool -VW 382-
-VW 385/17- from uni-
versal measuring tool
-VW 385-
Dial gauge -VAS 6079-
Note
Note
