6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 15 – Cylinder head, valve gear
6
108

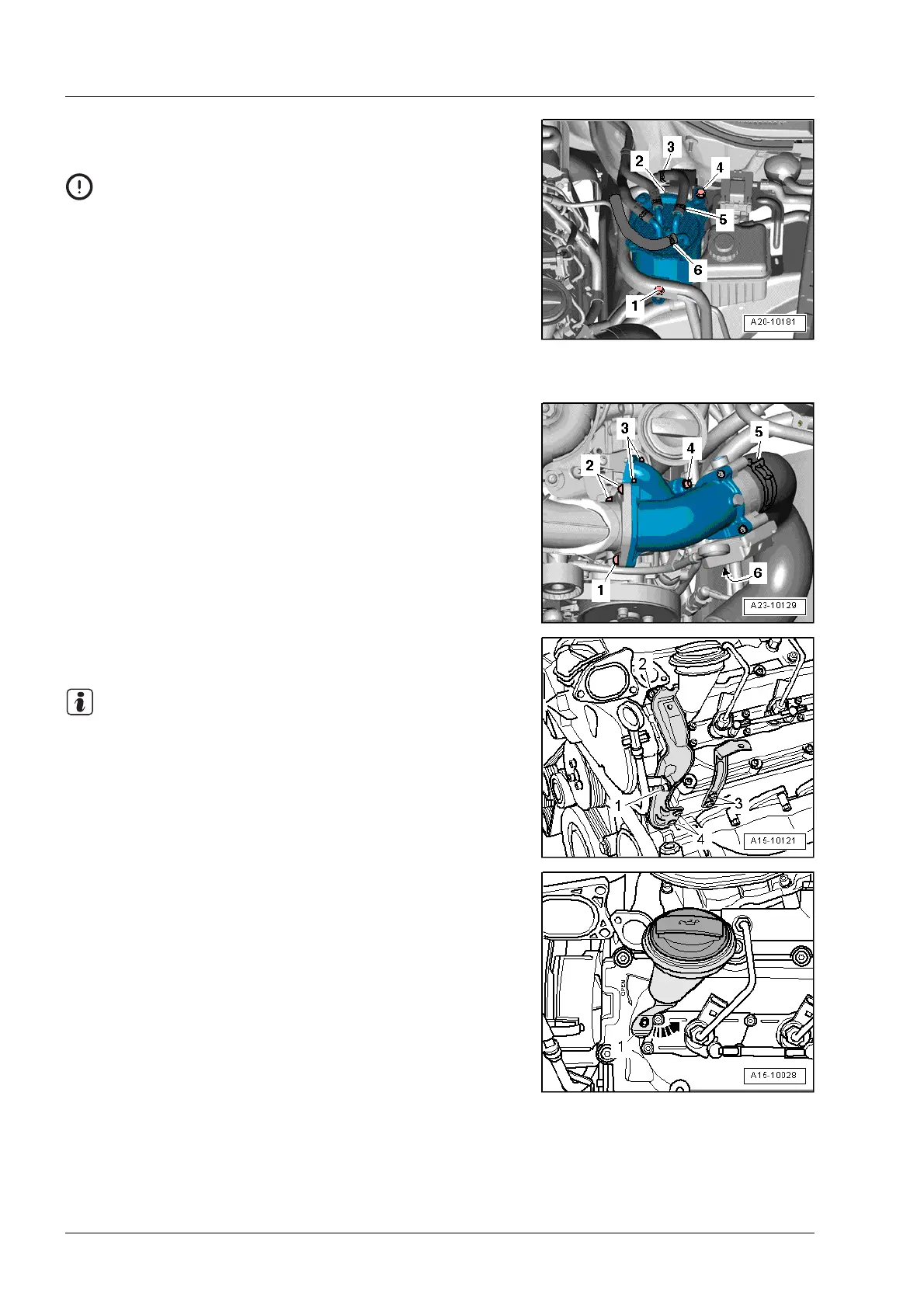

– Lay a clean cloth under the separating points to catch es-
caping fuel.
– Detach fuel supply hose -6- from fuel filter.
– Detach fuel hose going to fuel cooler at the connections
marked -3- and -5-.
– Remove bolts -1- and -2- and nut -4-.
– Move fuel lines at bulkhead clear and lay aside fuel filter
with fuel hoses connected.
– Detach air intake hose -5- from throttle valve module
-J338-.
– Unplug electrical connector -6- at throttle valve module
-J338-.
– Remove bolts -1 … 4- and remove intake connecting pipe
together with throttle valve module -J338-.
– Remove bolts -1, 2, 4- and detach bracket for intake con-
necting pipe from cylinder head.
Disregard -item 3-.
– Remove oil filler neck. To do so, lift tab -1- and turn oil filler
neck anti-clockwise -arrow-.
Caution!
Observe rules for cleanliness when working on the injection
system ⇒ page 2.
Note
