6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
1 Removing and installing cylinder head
111
6
• The injectors must be completely undamaged. To remove
the old copper seal from the injector, clamp the seal care-
fully in a vice so that it is just held between the jaws with-
out turning. Then carefully pull and twist the injector out
of the copper seal by hand.
• When an injector is renewed, also renew the injector pipe
and clamping piece at the same time.
• Used injectors and injector pipes may only be re-installed
on the same cylinder.
– Install injectors.
– Tighten union nuts on high-pressure pipes hand-tight ini-
tially.
– Ensure that high-pressure pipes are not under tension.

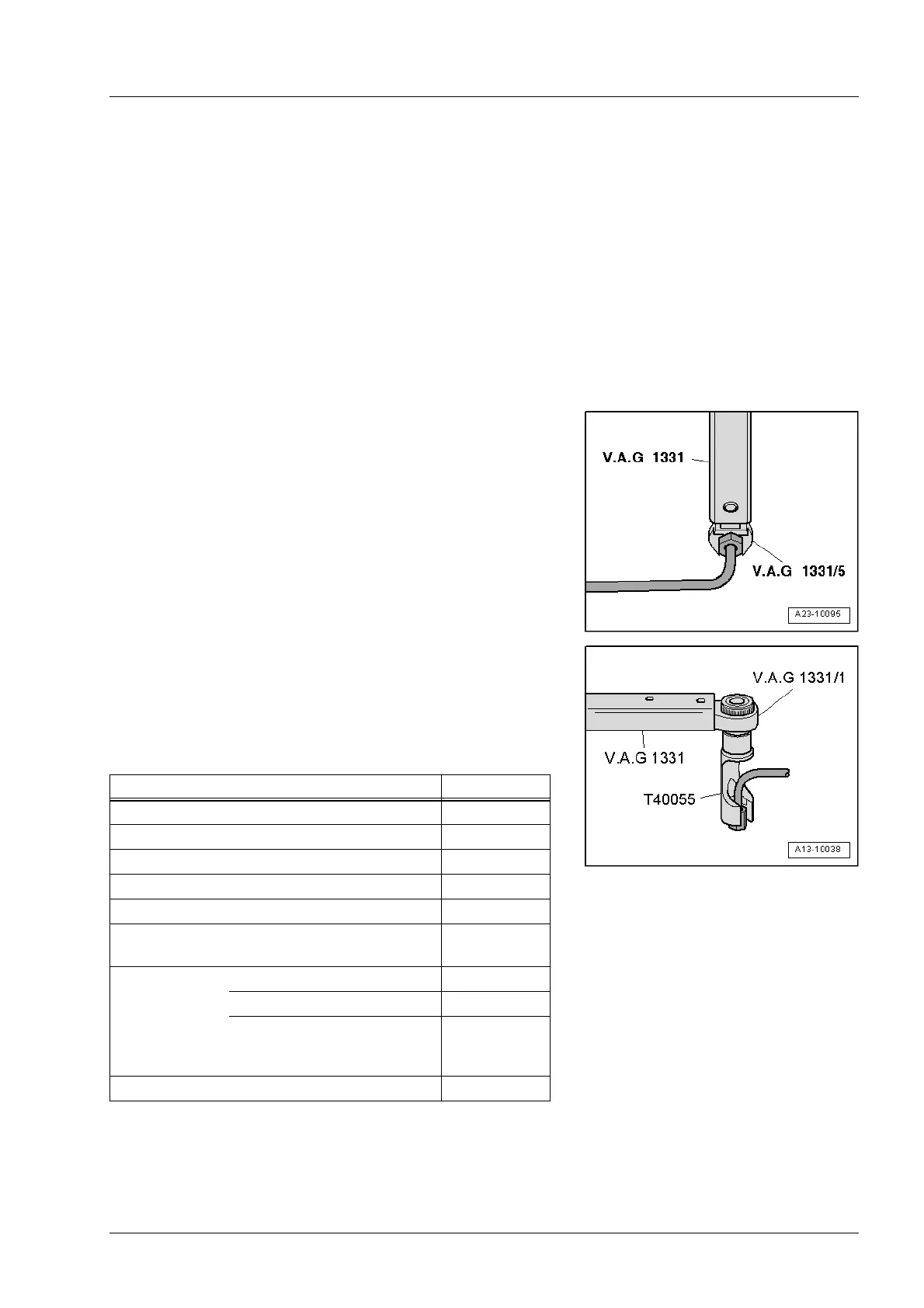

– To tighten unions of high-pressure pipes at rail elements,
use torque wrench -V.A.G 1331- with tool insert, AF 19
-V.A.G 1331/5-.
– To tighten unions of high-pressure pipe at high-pressure
pump, use torque wrench -V.A.G 1331- with ratchet
-V.A.G 1331/1- and socket, 17 mm -T40055-.
– Check fuel system for leaks ⇒ page 3.
Tightening torques
Component Nm
Cylinder head cover to cylinder head 9
Injector in cylinder head 9
Cover for injector to cylinder head 5
High-pressure pipes 25
Bracket for wiring harness to cylinder head 9
Bracket for intake connecting pipe to cylin-
der head
9
Throttle valve
module -J338-
with intake
connecting
pipe to:
intake manifold 9
bracket 9
connecting pipe for me-
chanical exhaust gas recir-
culation valve
9
Hose clips (13 mm wide) 5.5
