6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
1 Removing and installing cylinder head
113
6

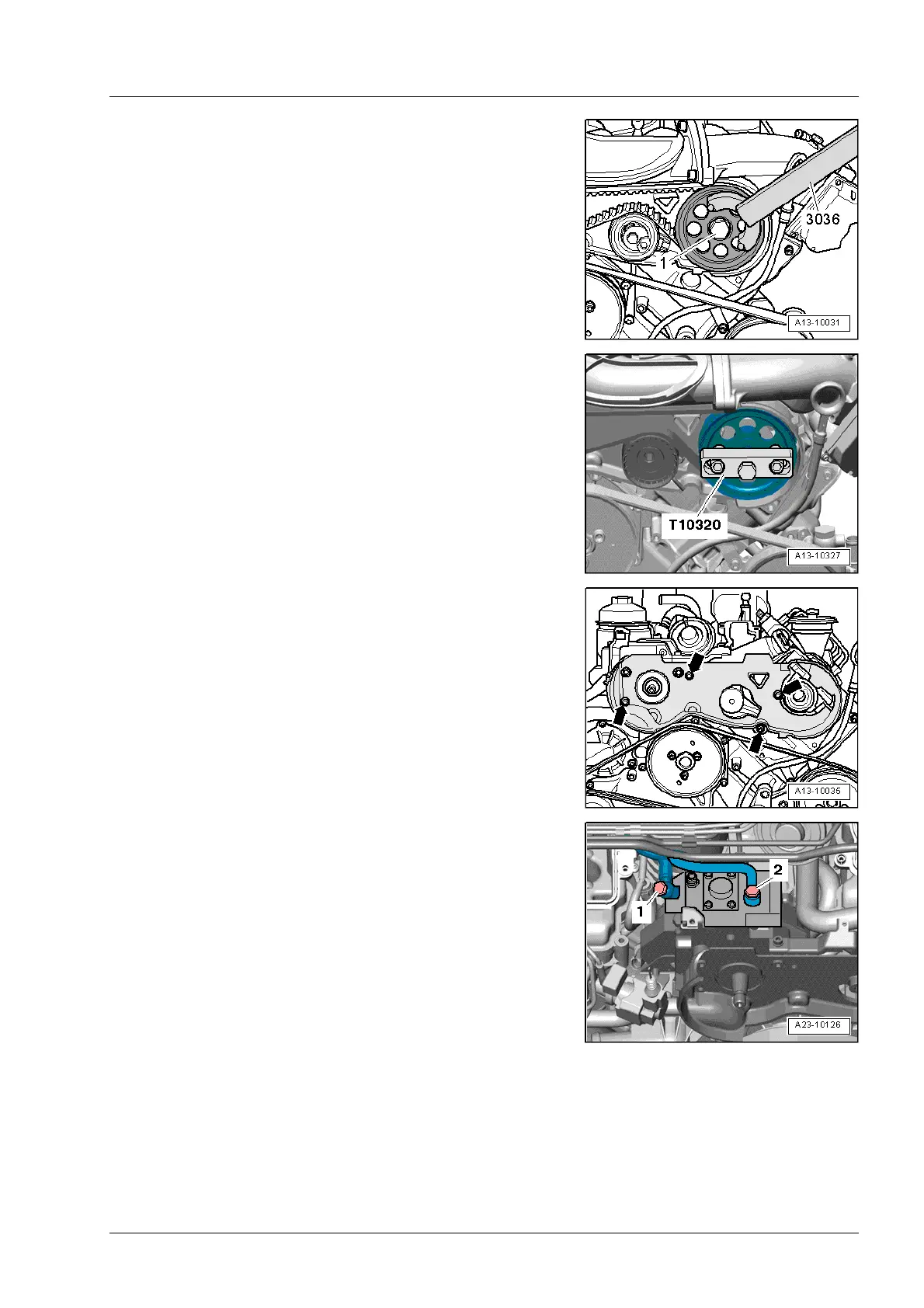

– Loosen central bolt -1- for toothed belt drive sprocket ap-
prox. 2 turns using counterhold tool -3036-.
– Use puller -T10320- to pull off toothed belt drive sprocket.
– Take off toothed belt drive sprocket together with toothed
belt.
– Remove bolts -arrows- and detach toothed belt cover
(rear).
Cylinder head (right-side):
– Disconnect fuel supply line -2- and fuel return line -1- from
high-pressure pump and move lines clear to the side.
Continuation for both sides:
– Remove intake manifold (top section) ⇒ Rep. Gr. 23.
– Remove bottom section of intake manifold (left or right)
⇒ Rep. Gr. 23.
