6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 15 – Cylinder head, valve gear
6
126

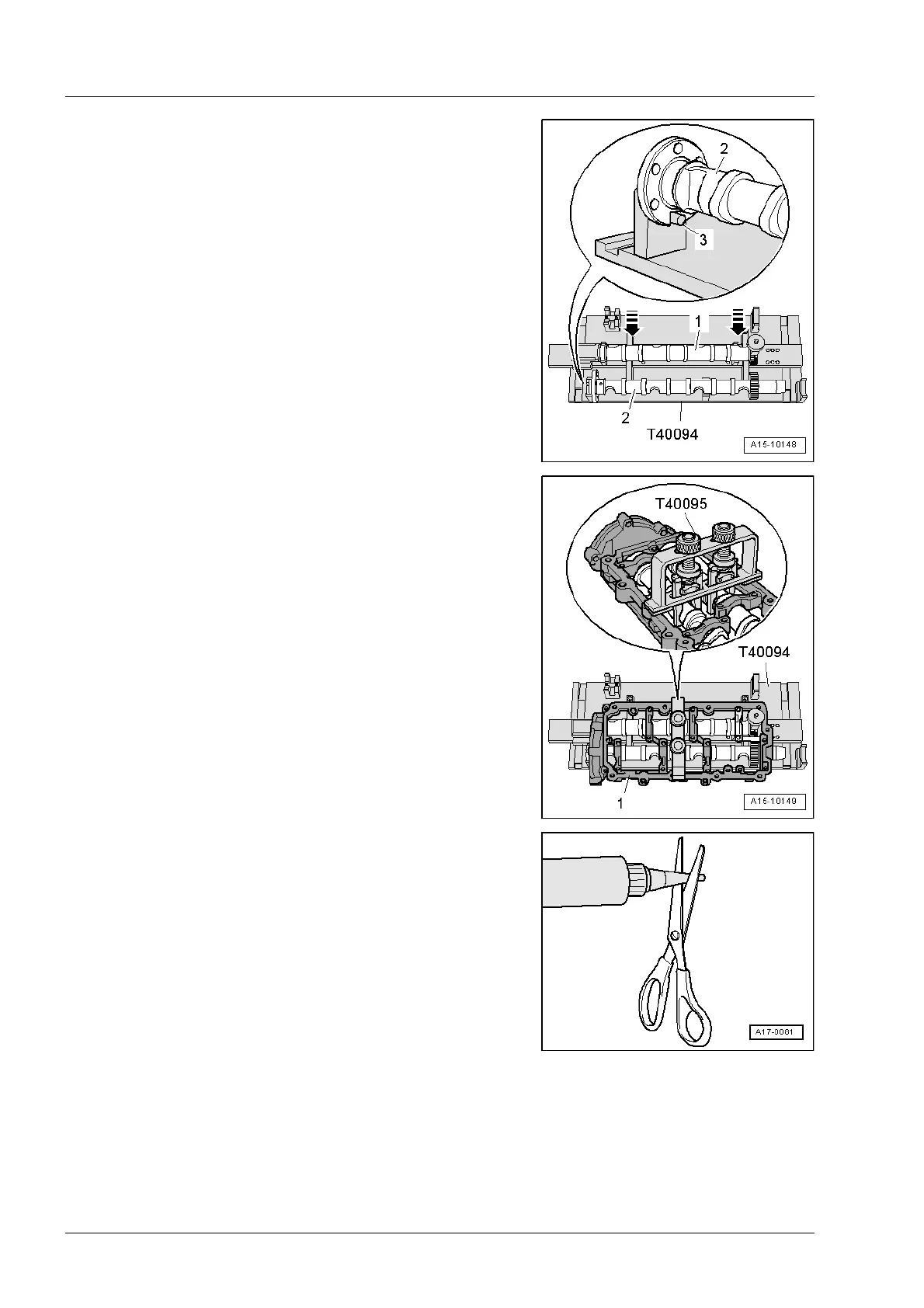

– Place inlet camshaft -2- in camshaft insert tool -T40094-.
• The locating pin -3- must engage in the slot on the cam-
shaft.
– Slide exhaust camshaft -1- towards inlet camshaft until
gear teeth engage.
– Fit retaining frame -1- onto camshafts.
• All camshaft bearings must be seated on the camshafts.
– Attach bracket -T40095- to camshafts (align arms of
bracket as required and tighten knurled nuts).
• Note the different shapes for inlet and exhaust camshaft.
– Cut off nozzle of tube at front marking (∅ of nozzle approx.
1.5 mm).
