Audi Q7 2007 Workshop Manual

Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
38
15 - 22 Nm
16 - Poly V-belt pulley for coolant pump
" Counterhold with 2-hole pin wrench -3212- when loosening and tightening ⇒ Fig..
" Installation position: marking “vorne” (front) faces in direction of travel.
17 - 9 Nm
18 - Coolant pump
" Removing and installing ⇒ page 167
19 - Idler roller for poly V-belt
" Note installation position
20 - 22 Nm
21 - Bracket for idler roller
22 - 22 Nm
23 - Power steering pump
" Removing and installing ⇒ Rep. Gr. 48
24 - Poly V-belt pulley for power steering pump
" Counterhold with 2-hole pin wrench -3212- when loosening and tightening ⇒ Fig..
" Installation position: marking “vorne” (front) faces in direction of travel.
25 - 22 Nm
26 - Seal
" Renew
27 - Bracket for ancillaries
28 - 40 Nm
29 - 25 Nm
30 - Air conditioner compressor
" Do not unscrew or disconnect refrigerant hoses or pipes.
" Removing and installing ⇒ Rep. Gr. 87
" When installing check dowel sleeves ⇒ item 31
31 - Dowel sleeve
" 2 x
" Check for correct seating in bracket
32 - 25 Nm
33 - Poly V-belt tensioner
" Removing and installing ⇒ page 40
34 - 40 Nm
" Bolt strength rating 10.9
35 - Vibration damper
" With poly V-belt pulley
" Removing and installing ⇒ page 40

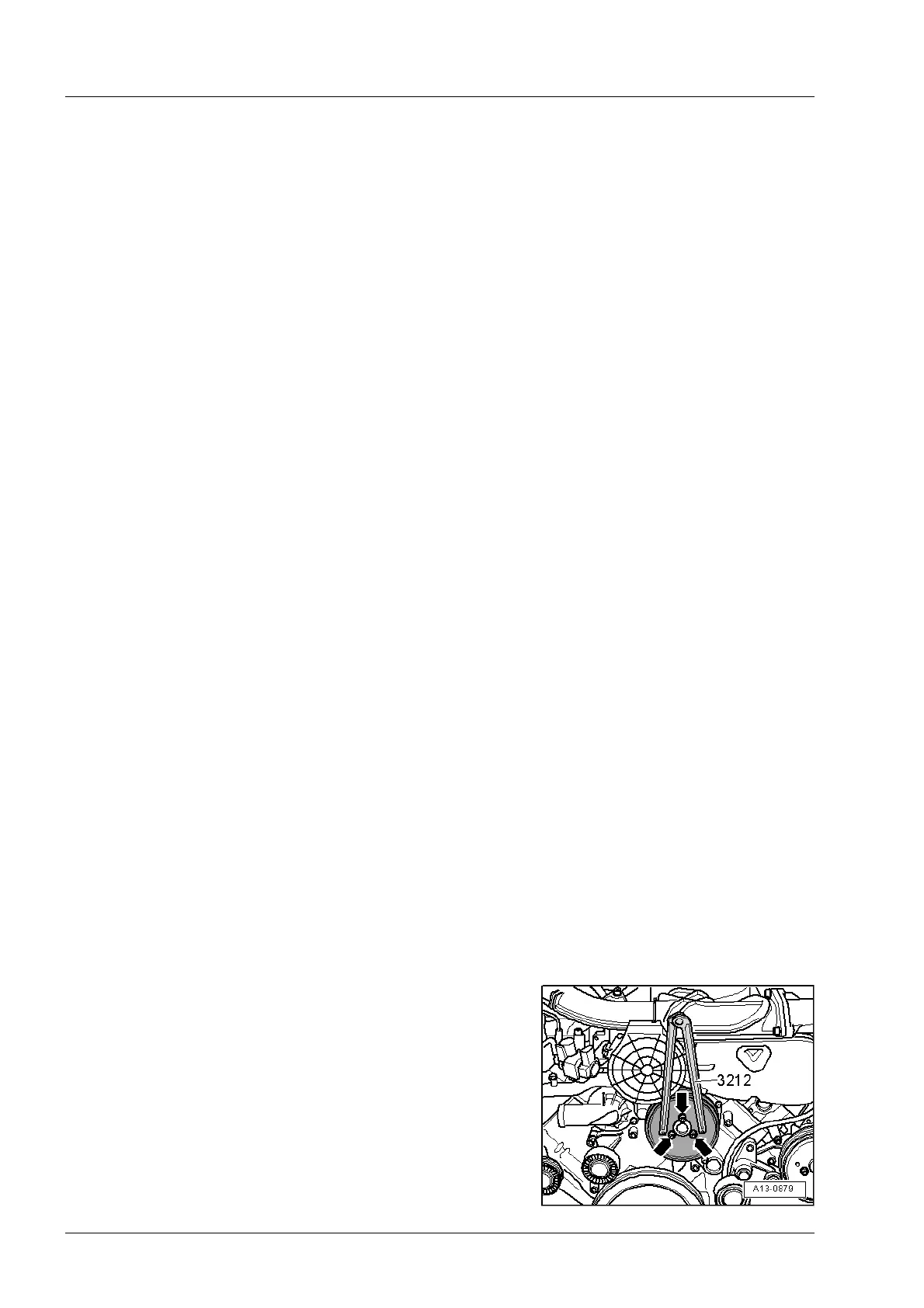

Loosening poly V-belt pulley for coolant pump
• Poly V-belt removed.
– Counterhold using pin wrench -3212- when loosening
bolts -arrows- on poly V-belt pulley for coolant pump.
