6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
70

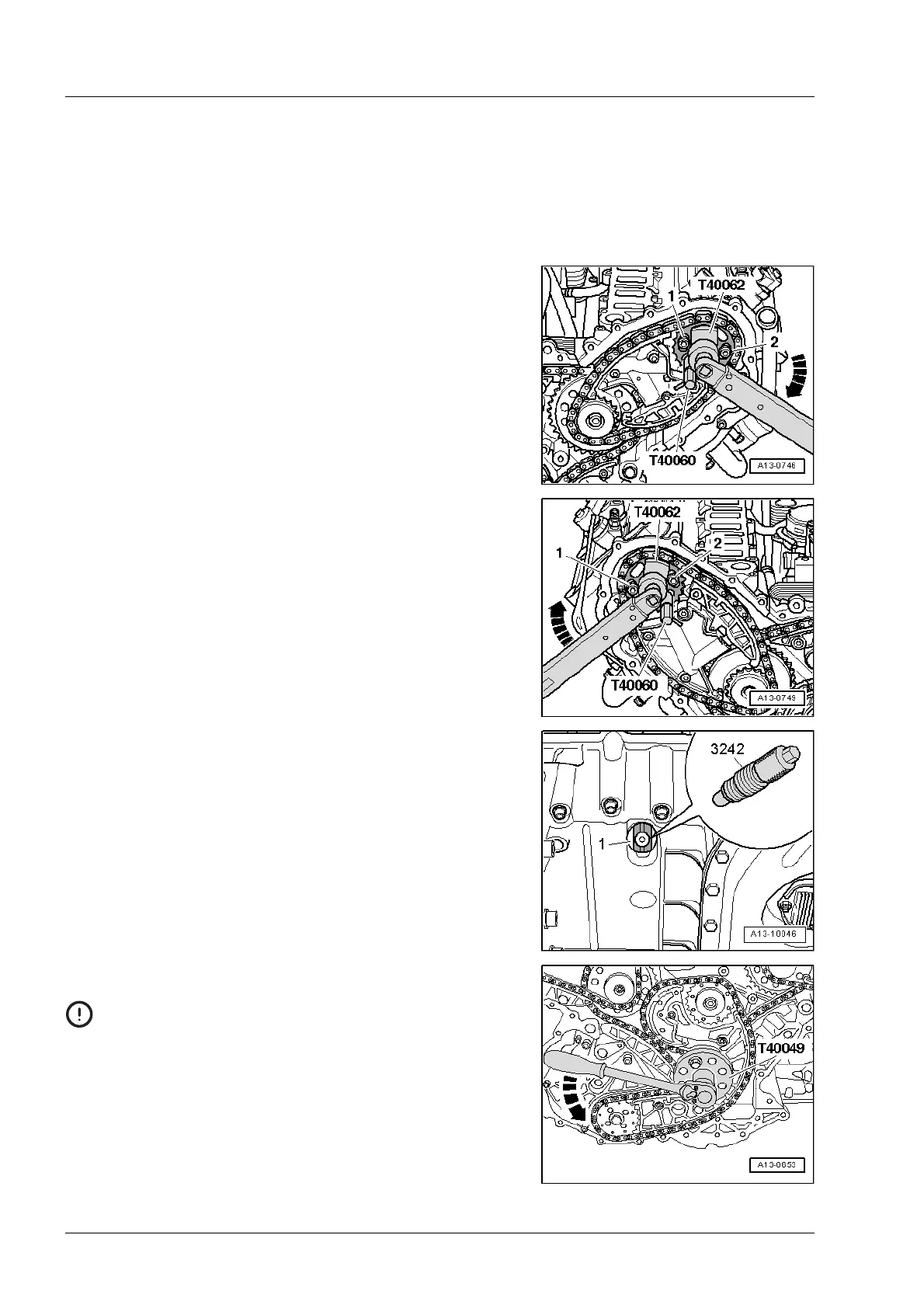

– Lock camshaft (right-side) with locking pin -T40060-.
• The side pin -arrow- on the locking pin -T40060- must be
in line with the imaginary line between the locking pin and
the centre of the camshaft.
– Pull drill bit -3- out of locating hole; this releases the chain
tensioner (right-side).
– Using a torque wrench and adapter -T40062-, apply a
torque of 30 Nm to camshaft sprocket (right-side) in the di-
rection indicated (-arrow-). Maintain this torque for the fol-
lowing step.
– Tighten bolts -1- and -2-.
– Take off adapter -T40062- and pull out locking pin
-T40060-.
– Tighten remaining bolts for sprocket (right-side).
– Using a torque wrench and adapter -T40062-, apply a
torque of 15 Nm to camshaft sprocket (left-side) in the di-
rection indicated (-arrow-). Maintain this torque for the fol-
lowing step.
– Tighten bolts -1- and -2-.
– Take off adapter -T40062- and pull out locking pin
-T40060-.
– Tighten remaining bolts for sprocket (left-side).
– Remove locking pin -3242-.
Checking valve timing
– Using adapter -T40049-, turn crankshaft two rotations in
normal direction of rotation -arrow- until crankshaft is just
before “TDC” again.
Caution!
Do not rotate crankshaft in opposite direction of engine rota-
tion.
