User's Manual 8. Performing Advanced Operations
Version 3.0.4 111 445HD IP Phone
8.1.6.2 Manually Connecting the Phone with the BToE PC Application
Here's how to manually connect the phone with the BToE PC application.
To connect the two:
1. Open the AudioCodes BToE Connect screen: Click the BToE client icon placed on your
taskbar after installation.

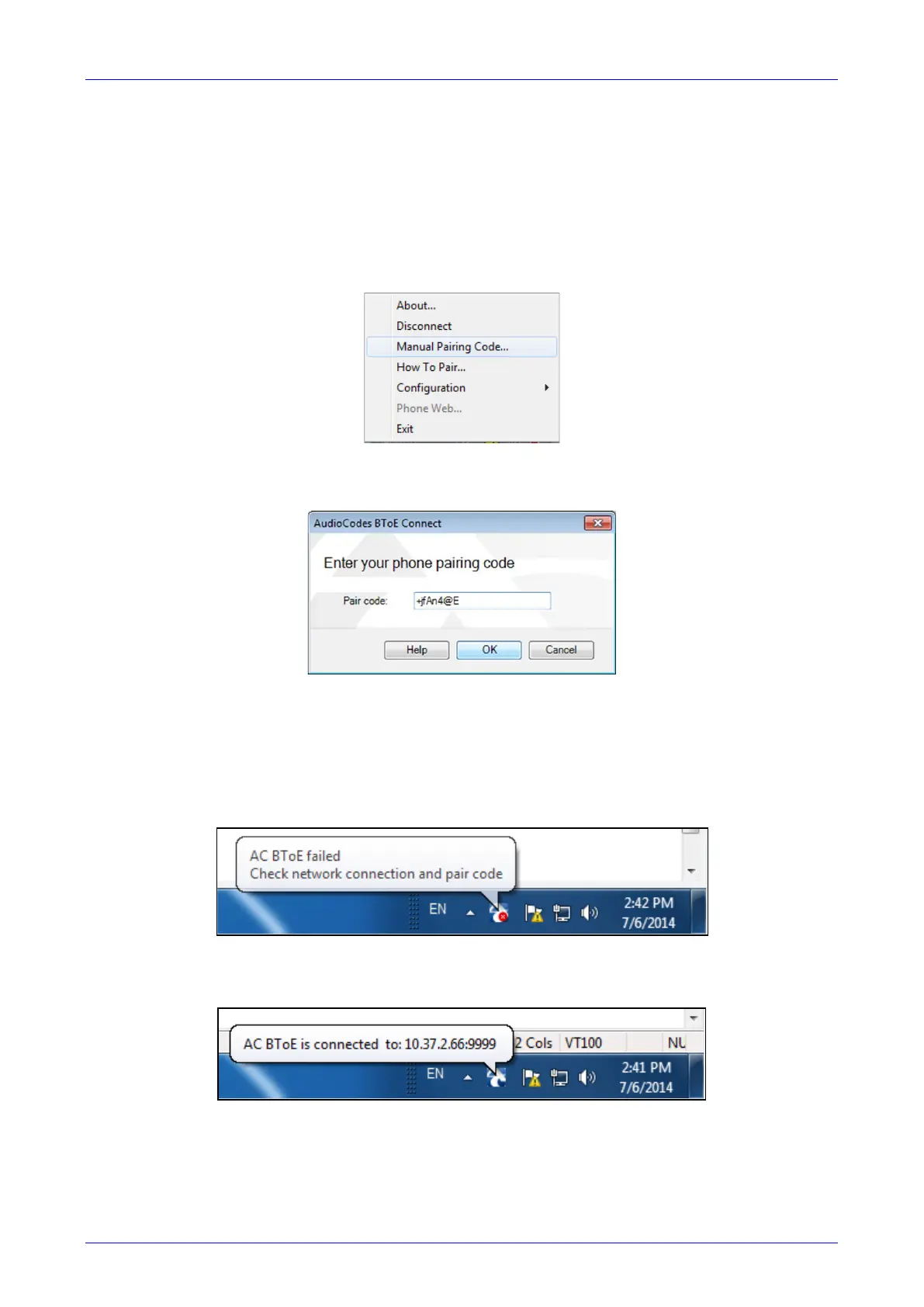

Figure 8-18: Popup Menu
2. Select the Phone Pairing option
Figure 8-19: Phone Pairing
3. In the 'Type the pair code' screen, enter the pair code that you generated as shown in
Section 8.1.6.1; the OK button is activated after 8 characters are entered.
3. Click the OK button; BToE is activated.
4. If a communication error occurs or the wrong pair code was entered, the following icon
indication appears:
Figure 8-20: AC BToE Failed Indication
5. When BToE is successfully connected, view the following icon indication:
Figure 8-21: AC BToE is Connected Indication
6. When BToE is in 'Connected' state, the popup menu shows the Disconnect menu item and
the Phone Pairing menu item is deactivated:
