User's Manual 6. Customizing the Phone
Version 3.0.4 69 445HD IP Phone
when there's an incoming / outgoing paging call.
4. In the ‘Key Label’ field, enter a name for the programmable key-paging dial to be displayed
in the phone's screen.
5. In the 'Multicast Address' field, enter the paging group's multicast IP address.
Default: 224.0.1.0. For phones to be in a group, all must be configured with the identical
multicast address.
6. In the 'Multicast Port' field, enter the group's port. Default: 8888. For phones to be in a group,
all must be configured with the identical port.
7. Save the configuration.
6.18 Configuring a Programmable Key as a Key Event
Any of the six programmable keys located on either side of the phone screen can be configured
as a Key Event. A Key Event can be Dialed Calls, Missed Calls, Received Calls, Directory, DnD,

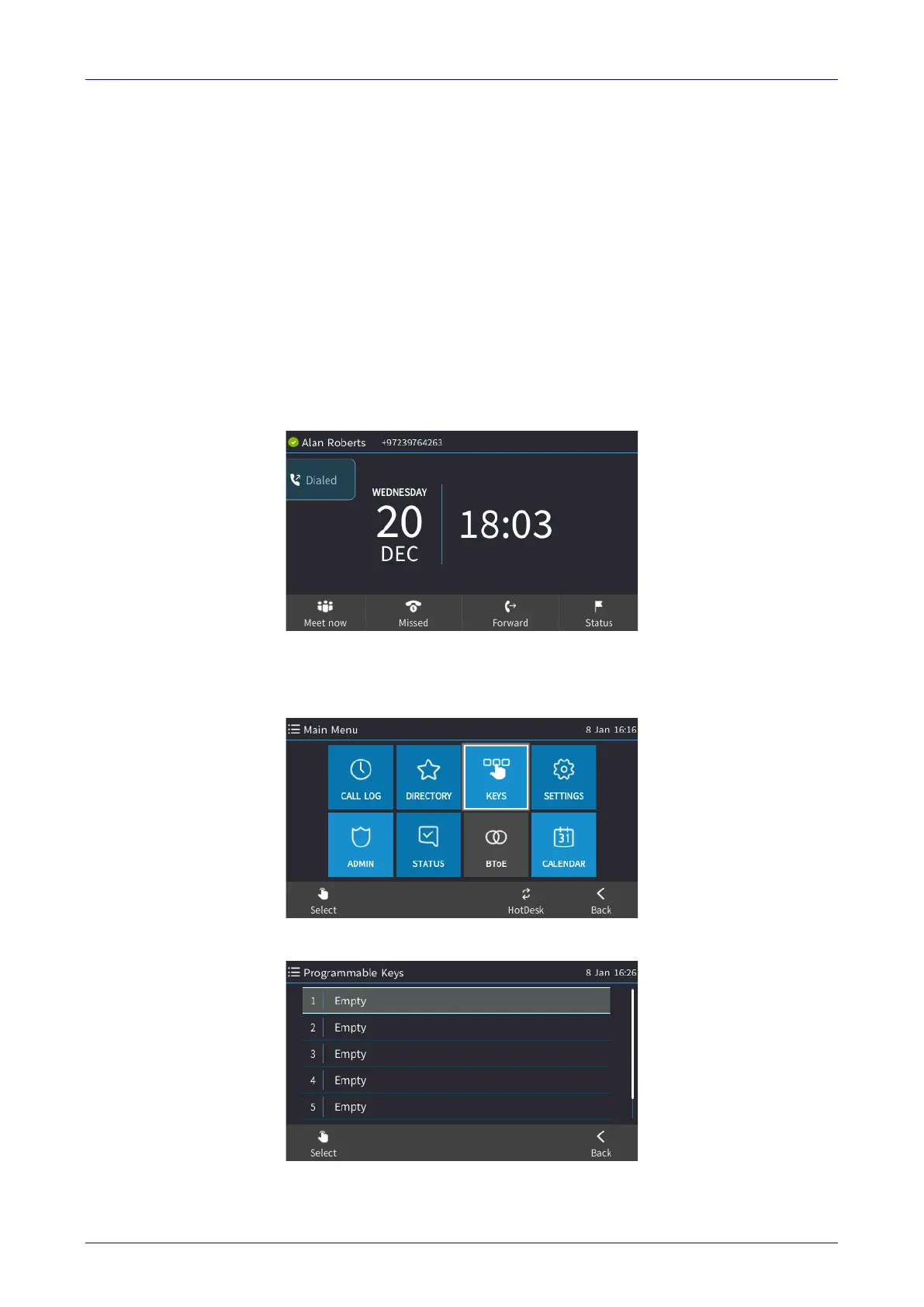

All and Forward The figure below, for example, shows a programmable key configured as a
‘Dialed’ Key Event. Pressing the key directly opens the Dialed Calls screen.
To configure a programmable key as a Key Event:
1. Long-press any of the six programmable keys located on either side of the phone screen or
press the MENU key > Keys.
2. Select Programmable Keys and then select an 'Empty' Programmable Key.
