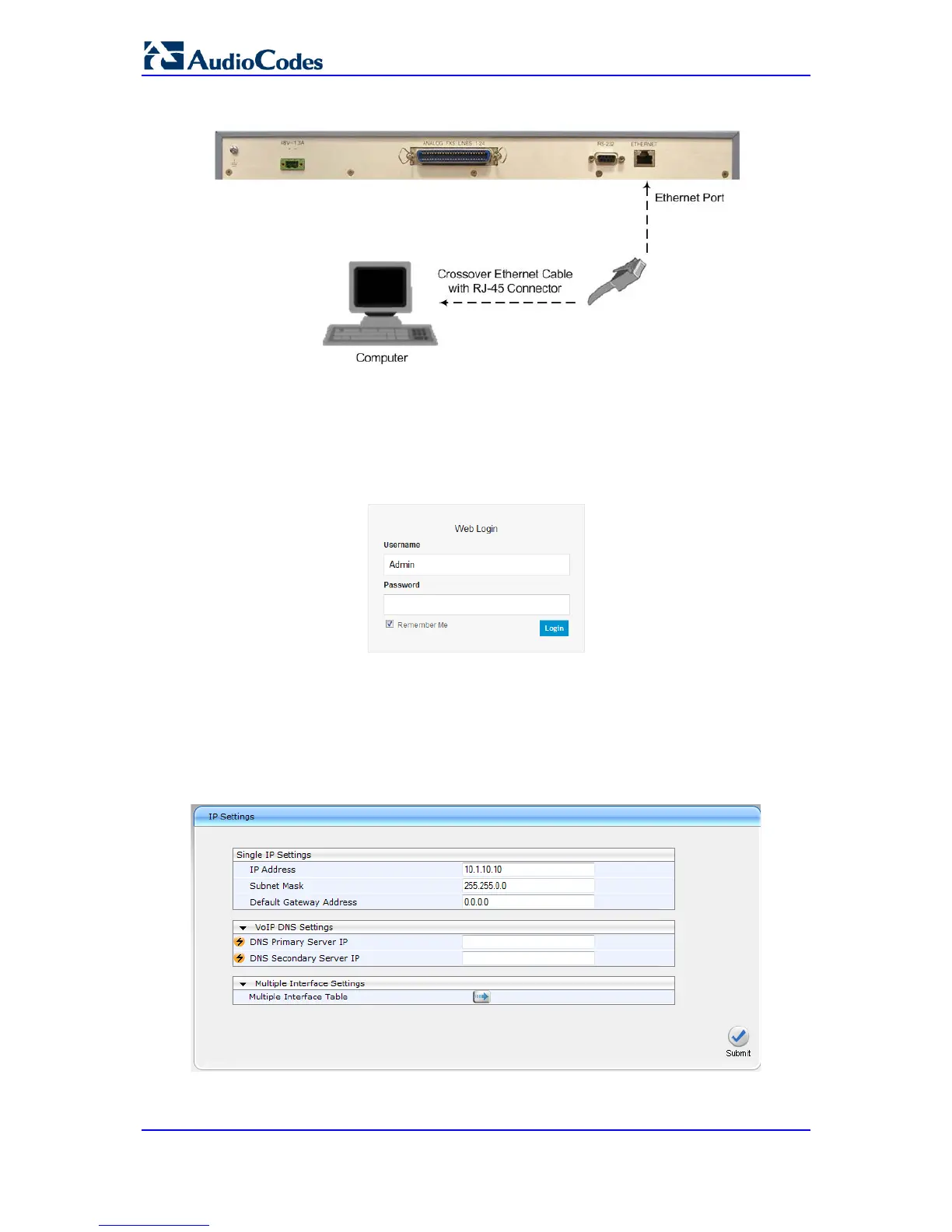

Figure 2-2: MP-124 LAN Connection to PC for Initial Connectivity
3. Change the IP address and subnet mask of your computer to correspond with the
default IP address and subnet mask of the device.
4. Access the Web interface:
a. On your computer, start a Web browser and in the URL address field, enter the
default IP address of the device; the Web interface's Login screen appears:
Figure 2-3: Web Login Screen
b. In the 'Username' and 'Password' fields, enter the default login user name
("Admin" - case-sensitive) and password ("Admin" - case-sensitive), and then
click Login; the device's Web interface is accessed.
5. Change the default IP address to one that corresponds with your network:
a. Open the Multiple Interface Table page (Configuration tab > VoIP menu >
Network submenu > IP Settings).
Figure 2-4: IP Settings Page (Single Network Interface)
b. Select the 'Index' radio button corresponding to the "OAMP + Media + Control"
application type, and then click Edit.
To Next Page
