Version 6.6 295 MP-11x & MP-124

User's Manual 26. Overview

26.2.2 SAS Routing in Emergency State

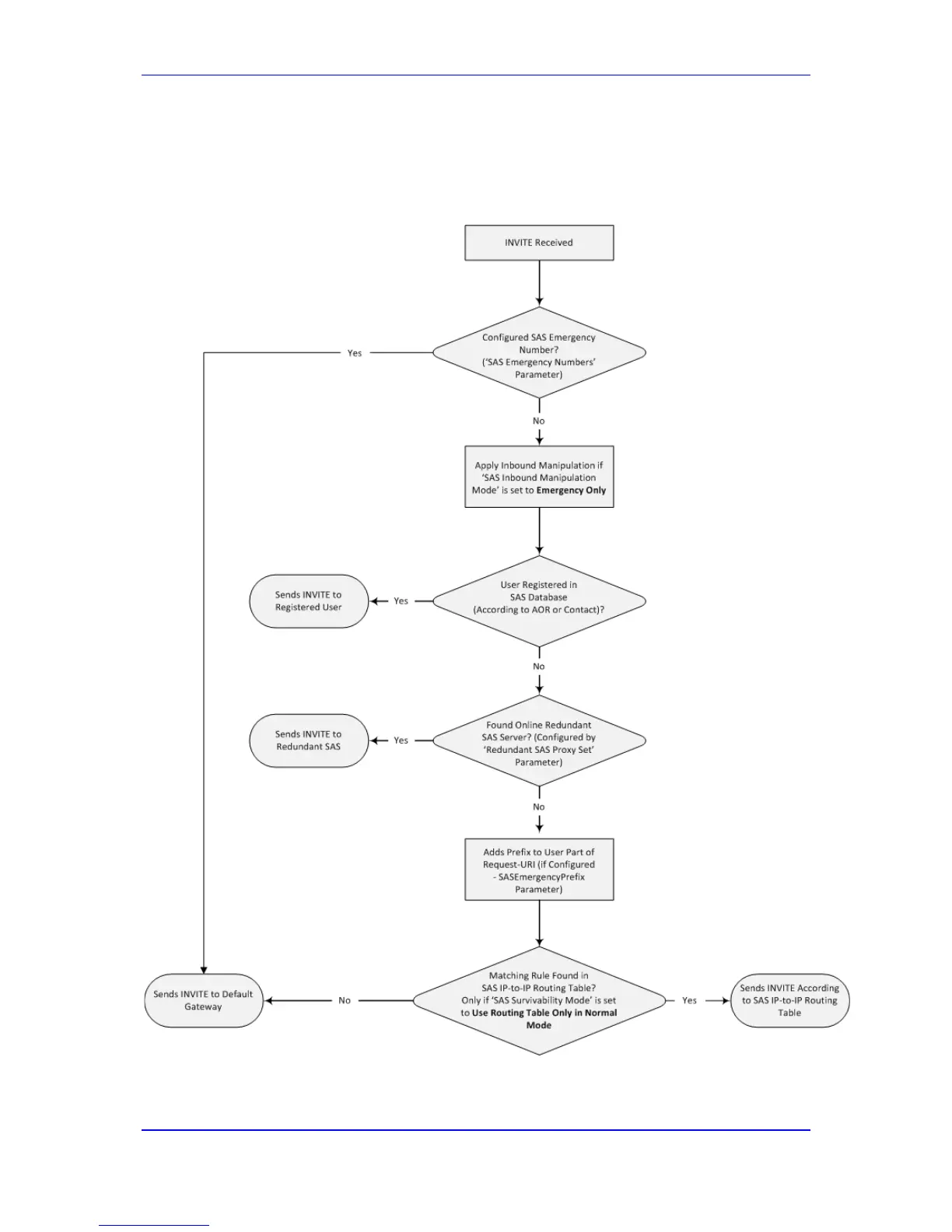

The flowchart below shows the routing logic for SAS in emergency state:

Figure 26-7: Flowchart for SAS Emergency State
