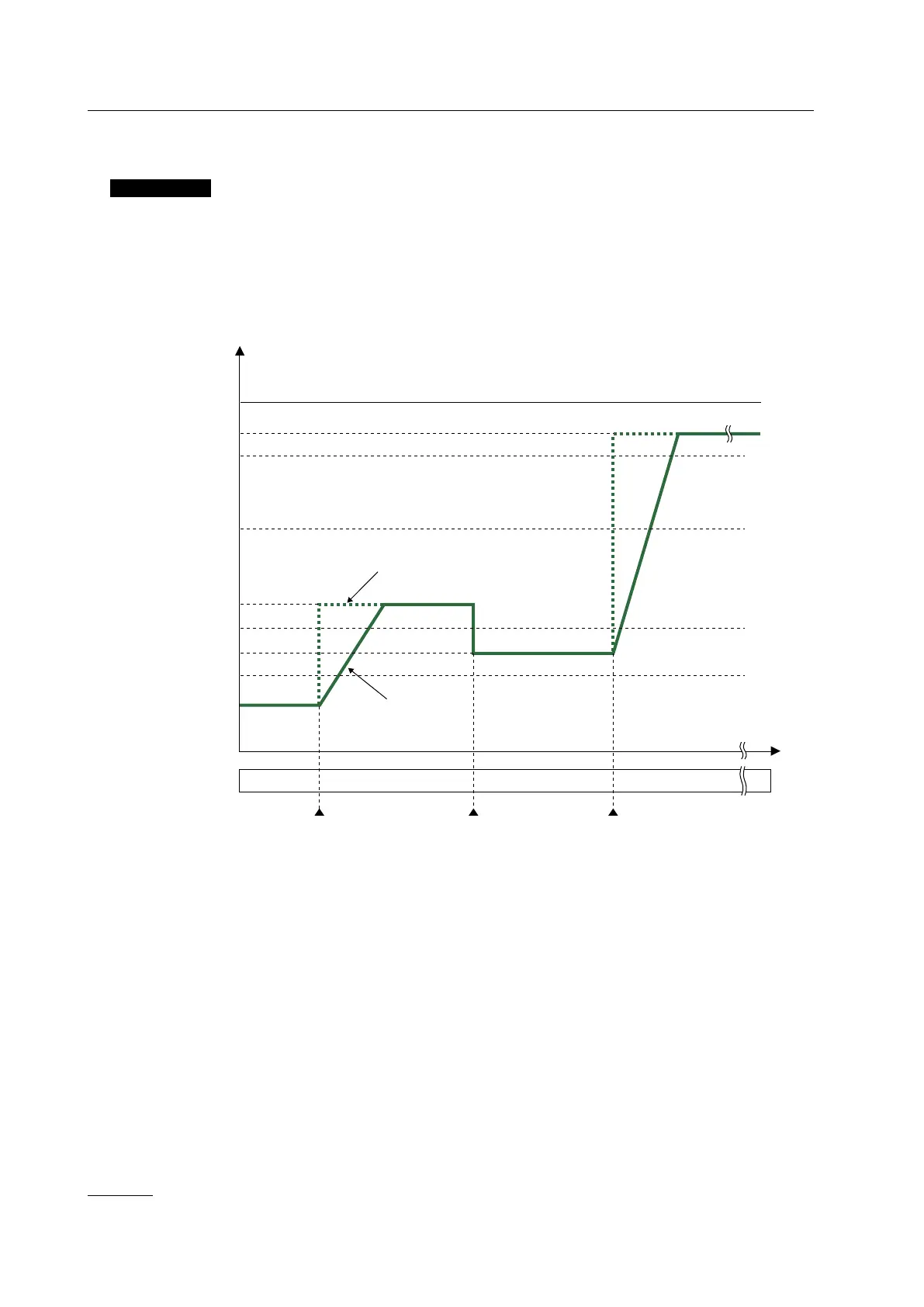

6.4.4 Switching PID According to Target SP
Description





SP
250ºC
100ºC
350ºC
800ºC
Target SP is
changed from
100ºC to 350ºC
Target SP is
changed from
350ºC to 250ºC
Target SP is
changed from
250ºC to 800ºC
Reference point 4
(PID of group 5)
(PID of group 4)
(PID of group 3)
(PID of group 2)
(PID of group 1)
Time
PID of group 1 PID of group 3 PID of group 2 PID of group 5
Reference point 3
Target SP
Current SP
Reference point 2
Reference point 1
Maximum value of
PV input range
Minimum value of
PV input range
PID No. to be selected



Chapter 6: Control Mode Settings
