Chapter 4: Operation Monitoring and Control
4.1 Monitoring and Control of Operation Displays
4.1.1 Operation Display Transitions in Single-loop Control, Cascade Primary-
loop Control, Cascade Secondary-loop Control, Loop Control for Backup,
and Loop Control with PV-hold Function.

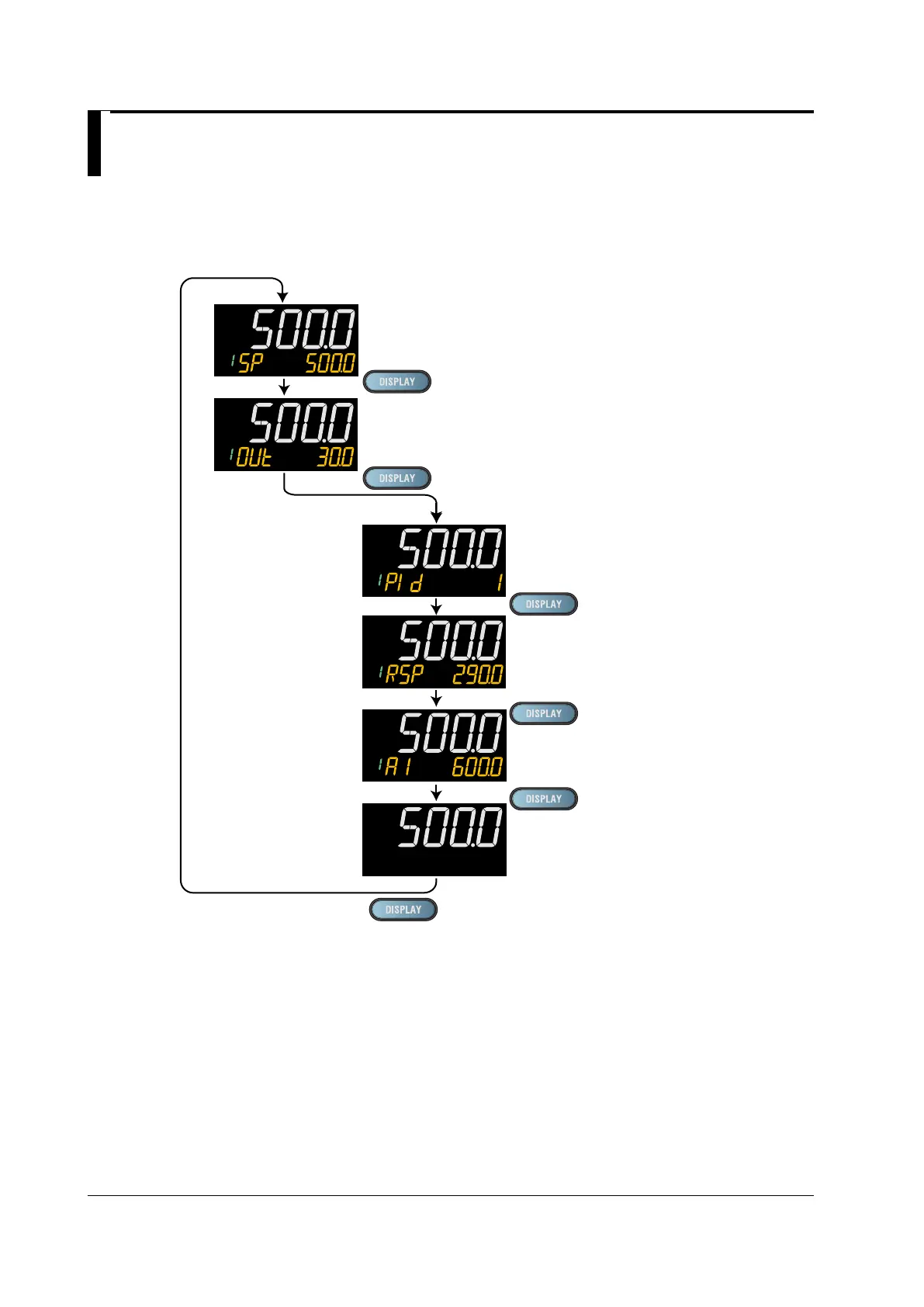

SP Display (SP can be changed.)
OUT Display (OUT can be changed in MAN mode.)
PID Number Display (display only)
(Factory default: non-display)
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
PV only Display
(Factory default: non-display)
Auxiliary analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input,
RSP: RSP analog input (E1-terminal area)
