4-4
PPC Manual Revision 1
Chapter 4: Operation Monitoring and Control

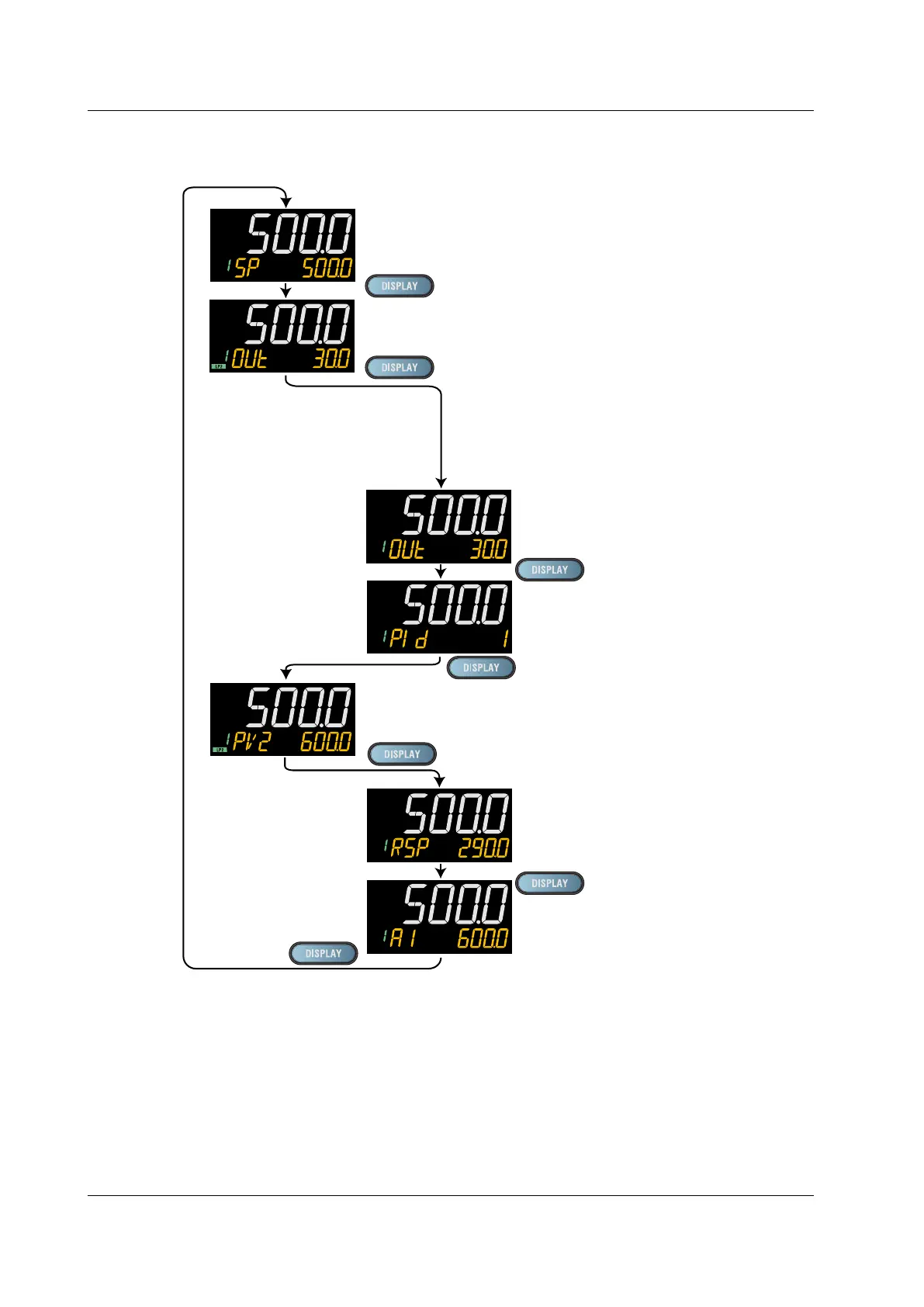

4.1.3 Operation Display Transitions in Cascade Control
Program Pattern Number Display (Display only)
Parameter RMS = PROG
PV display: Loop-1 PV
Loop-1 SP Display (SP can be changed.)
PV display: Loop-1 PV
Loop-2 OUT Display (display only)
PV display: Loop-1 PV
LP2 lamp is lit.
Loop-1 PID Number Display (display only)
(Factory default: non-display)
PV display: Loop-1 PV
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.)
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
Loop-1 OUT Display (display only)
(Factory default: non-display)
PV display: Loop-1 PV
Setpoint display: Loop-1 OUT
Loop-1/Loop-2 PV Display (display only)
PV display: Loop-1 PV
Setpoint display: Loop-2 PV
LP2 lamp is lit.
Auxiliary analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input,
RSP: RSP analog input (E1-terminal area)
