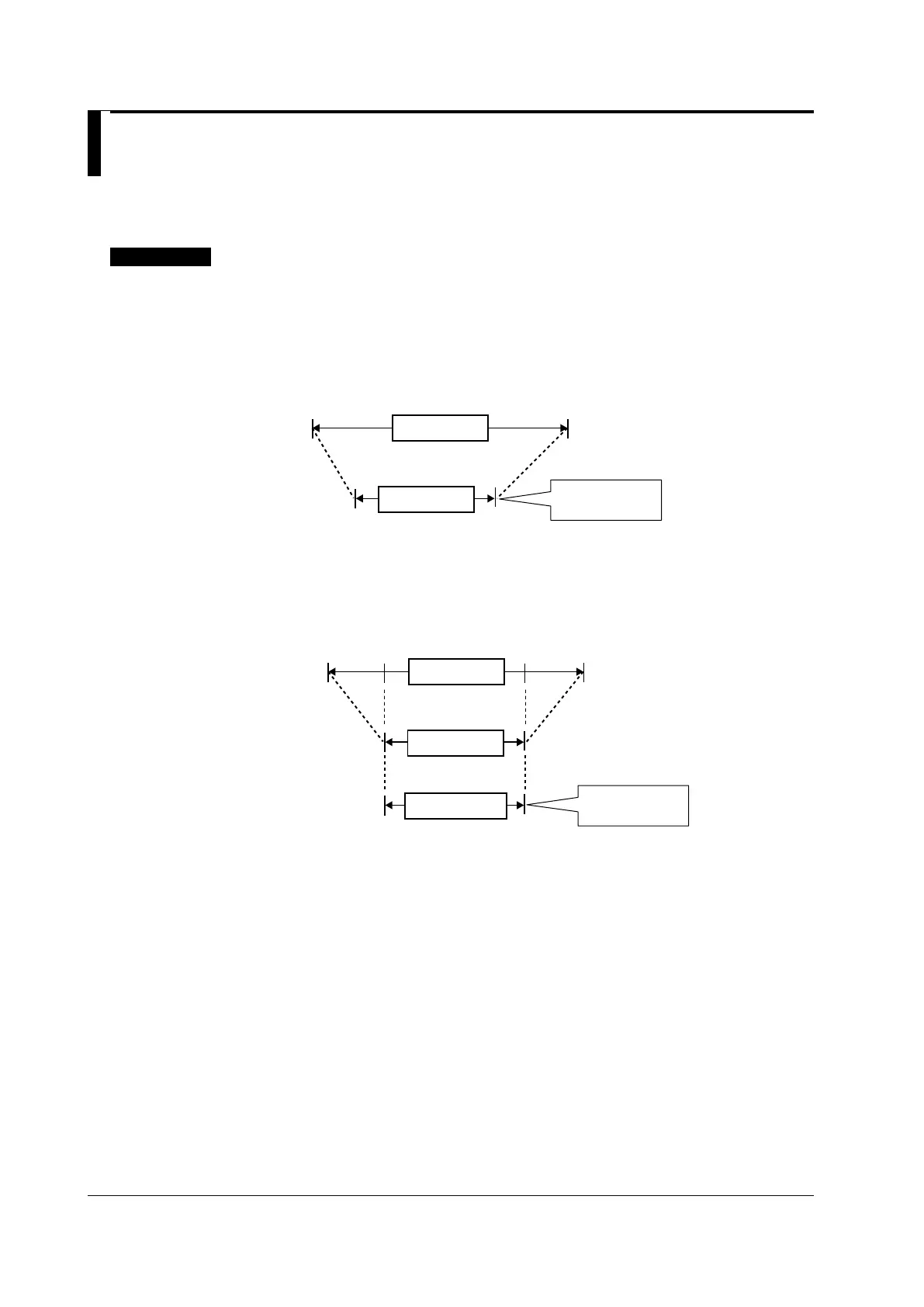

Chapter 5: Input Setting Functions
5.1 Setting Functions of PV Input and Remote
Auxiliary Analog Input
5.1.1 Setting Input Type, Unit, Range, Scale, and Decimal Point Position
Description
Example of Temperature Input
Minimum value of PV input range
Input type
RL = 0.0°C RH = 800.0°C
Maximum value of PV input range
Set a range to be
controlled.
PV input range
Example of Voltage and Current Inputs
Minimum value of PV input scale
1 V 5 V
(input signal)
SL = 0.0 m³/h SH = 50.0 m³/h
Maximum value of PV input scale
2 V 4 V
RL = 2.000
RH = 4.000
RH = 5.000
PV input scale
Input type
Set a range to be
controlled.
PV input range
To Next Page
