AVENTICS | Marex 3D | R417003094–BDL–001–AA 29
English
Refer to the assembly instructions of the Joystick Type 531
for further information. See also chapter 1.2, Required and
additional documentation, on page 6.
4.3.1.2 Keypad and indicators
The Joystick Type 531 provides a keypad for the operation. The
keypad includes the following keys and indicators:

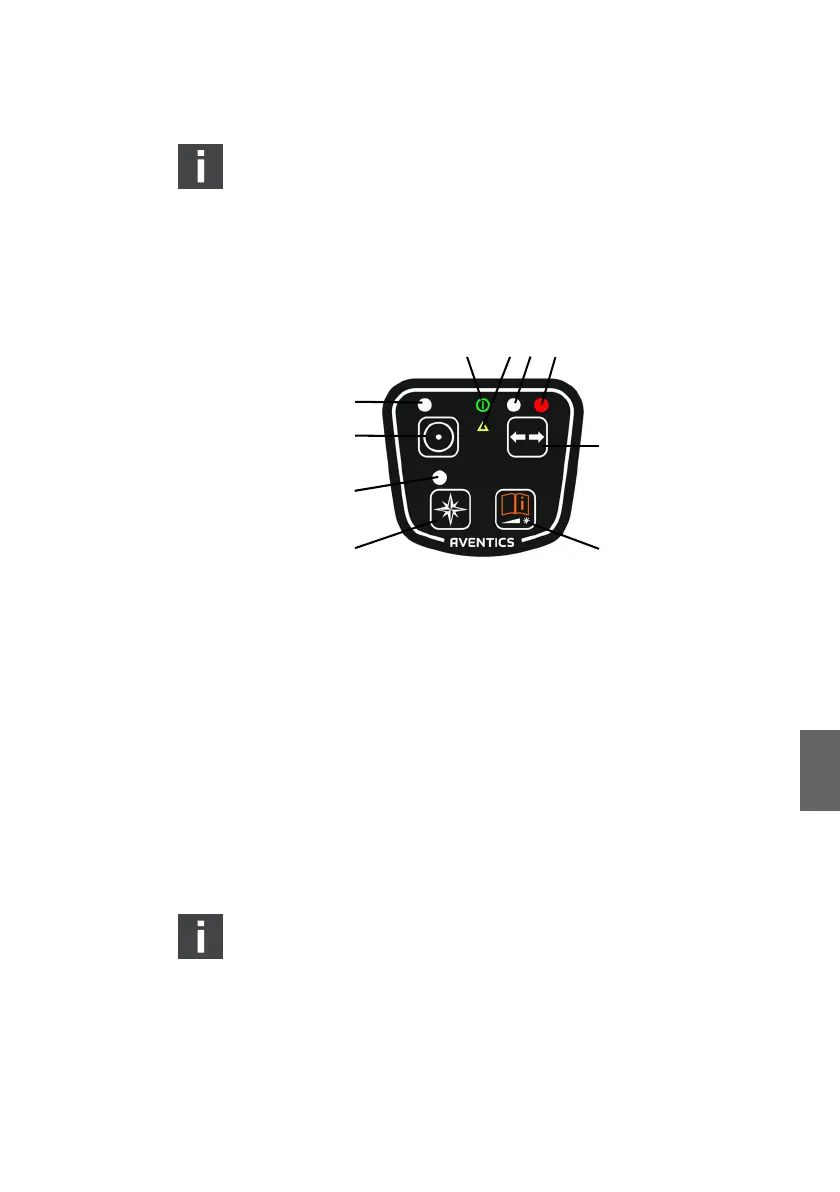

Fig. 2: Keypad of the Joystick type 531
All indicators (except for the joystick status indicator) are visible
only in the illuminated state. The same applies for the booklet
symbol on key 11.
6 Joystick status indicator
7 System error indicator
8 Thruster operation indicator
9 Thruster alarm indicator
10 Thruster key
11 Dimming key with booklet symbol
12 Heading key
13 Heading status indicator
14 Command key
15 Command indicator
6
7
8
9
10
11
12
13
14
15
