About this product
32 AVENTICS | Marex 3D | R417003094–BDL–001–AA

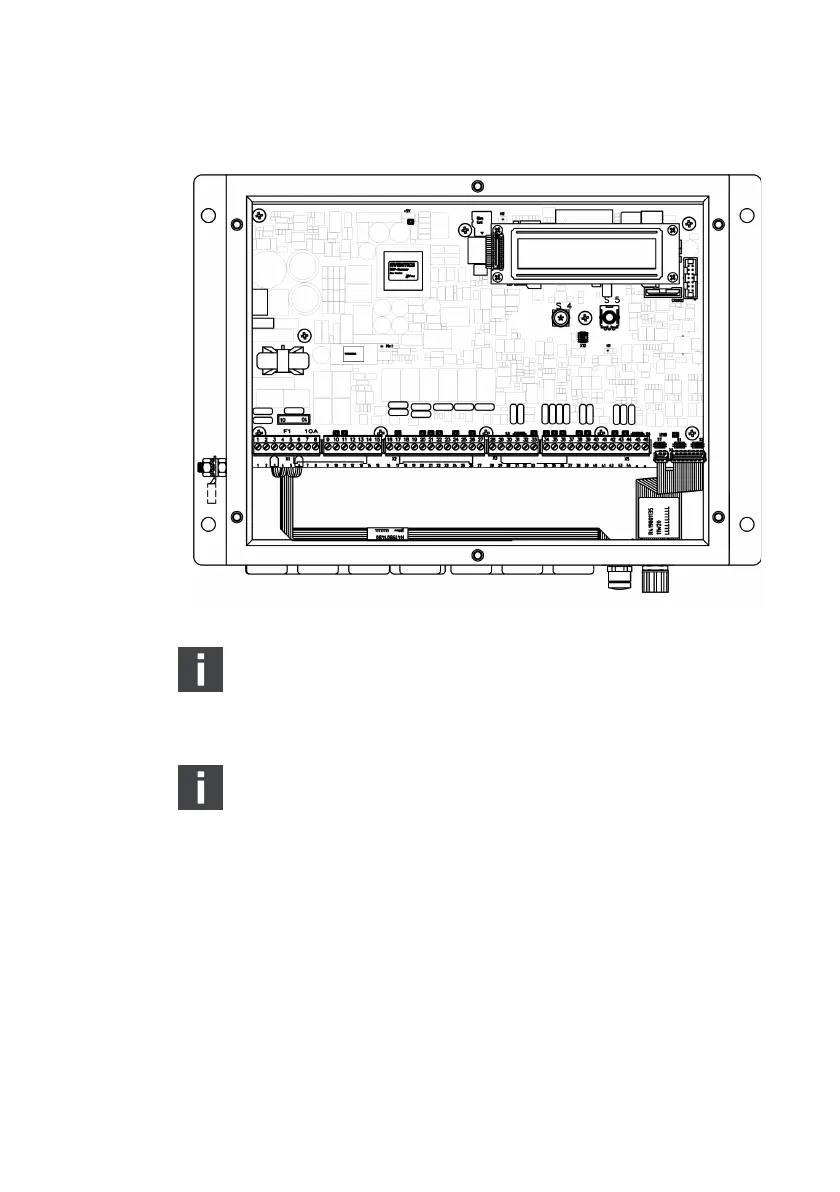

Fig. 4: Top view of the board without cover
Refer to chapter 5.3, Establishing the electrical
connections, on page 39 for information on the connections.
See also chapter 1.2, Required and additional
documentation, on page 6.
Operating voltage: The 3D Controller operates with 24V DC
(+30%/-25 %) or 12 V DC (+30%/-20%). The supply and the
feeder of the 3D Controller must be designed in such a way
that in case of short current peaks up to 15 A the voltage at
the device remains within the given limits.
4.3.2.1 Grounding
The 3D Controller must be grounded by ensuring proper contact
of the fastening lugs and the vessel ground at the mounting
points. If this is not possible, grounding must be ensured by
ground bolts.
O Refer to chapter 5.3.1, Connecting the 3D Controller, on page
39 for instructions on grounding.
