Installation
AVENTICS | Marex 3D | R417003094–BDL–001–AA 45
English

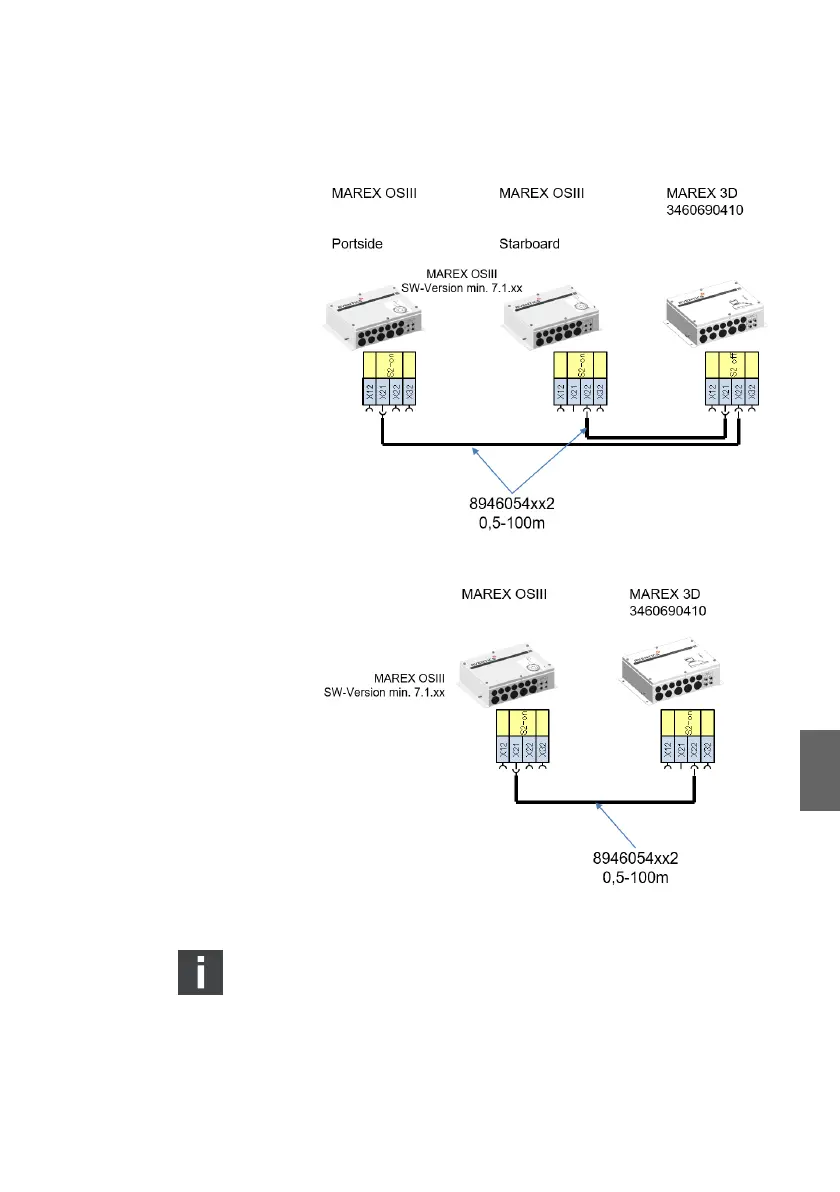

Fig. 18: Connection diagram for Marex OS III with twin engines
Fig. 19: Connection diagram for Marex OS III with single engine
Different setting of terminating resistor:
With Marex OS single engine systems, dip switch S2 at the
3D Controller must be set to "on".
