5.3.5.2 Connecting Side Power thrusters with S-Link
Side-Power thrusters can be controlled using either analog and
digital in- and outputs (fig. 27) or a connection to the NMEA2000
bus line. If the 3D Controller is integrated as a participant on the
NMEA2000 bus, an S-link gateway is required for the
connection.
Thrusters and Marex remote controls have different operating
voltages. An S-Link interface cable must be applied between the
3D Controller and the S-link gateway.
O Refer to chapter 9, Accessories, on page 92 for information
on the S-Link interface cable..

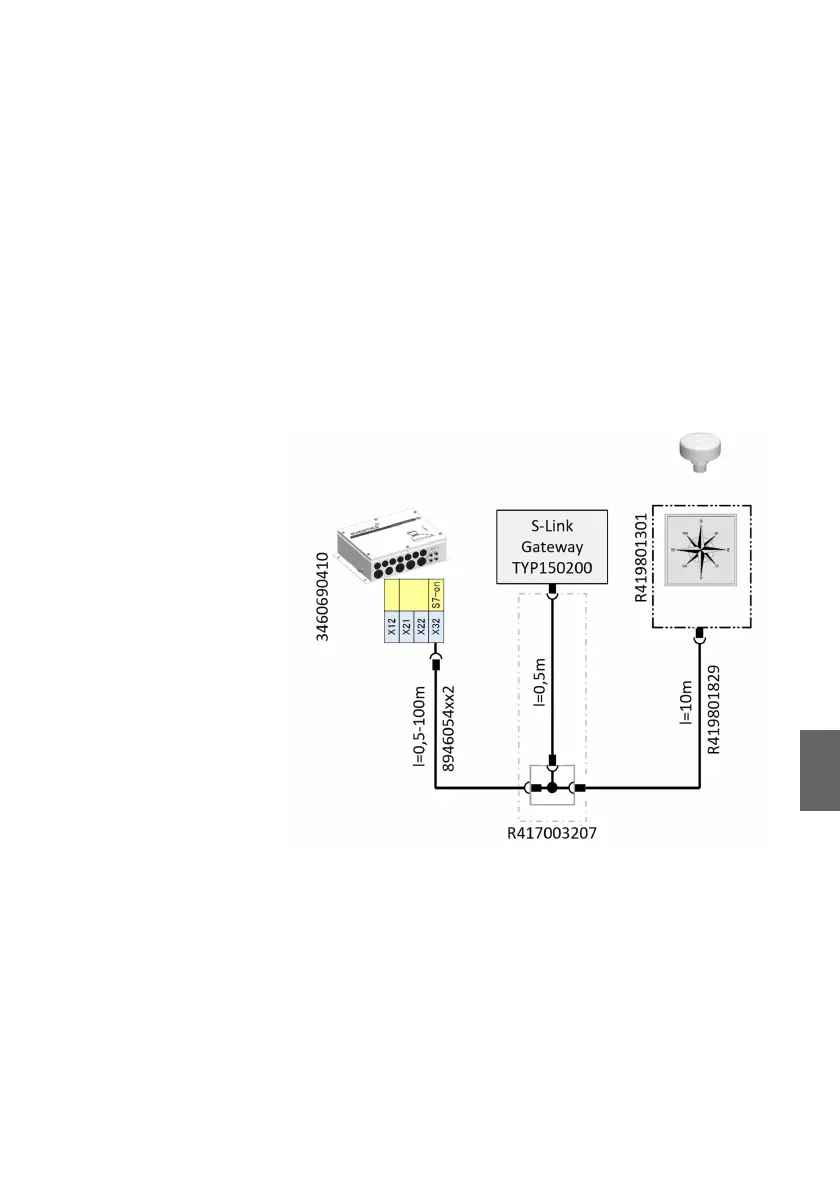

Fig. 31: Connection of SidePower thrusters via S-Link including a
heading sensor
