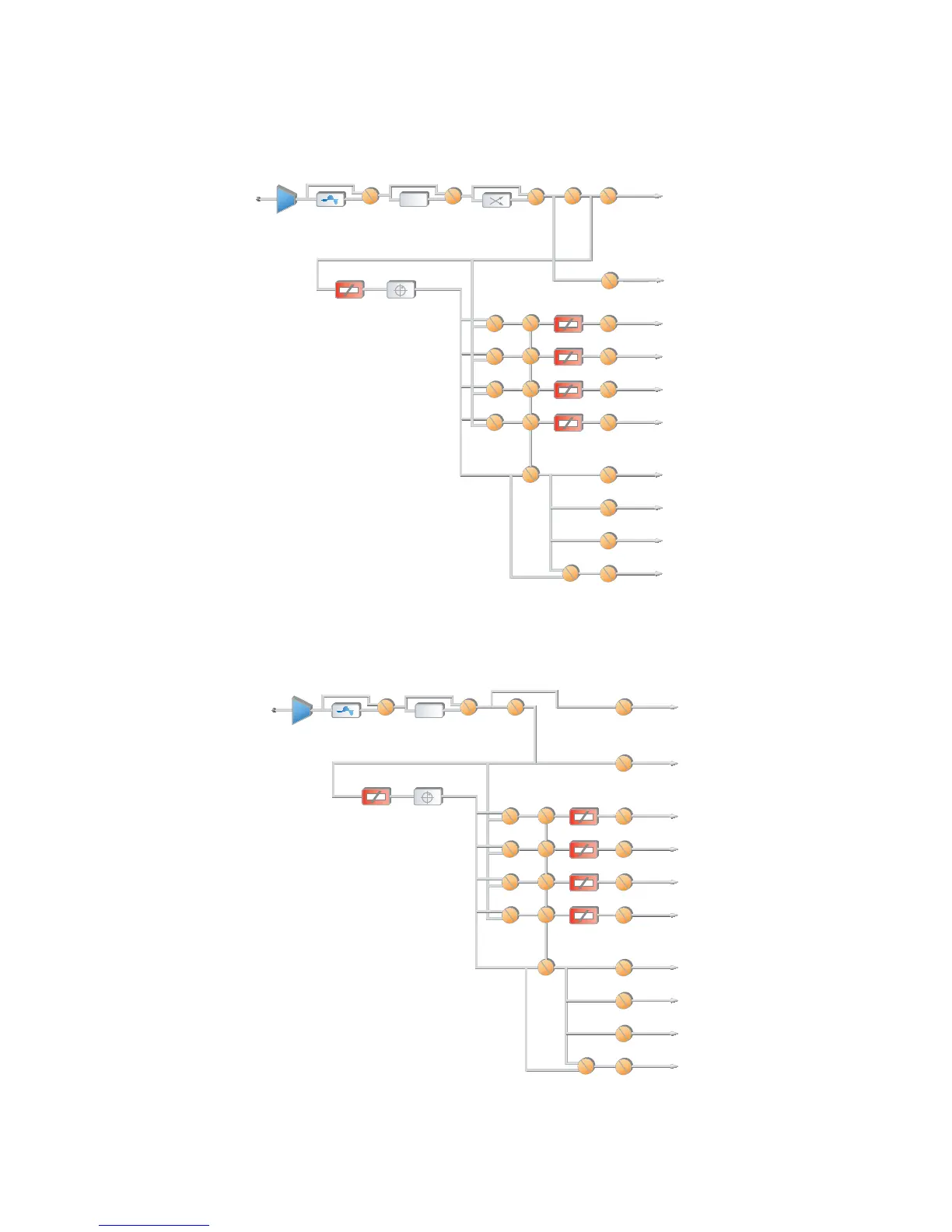

Line Input Channel Block
LINE
SOURCE
EQ / DYN
PHASE
Ø
MODE
PRE FDR
PRE FDR
PRE FDR
PRE FDR ON
AUX 1
Σ AUX SEND 1
AUX 1
AUX 2
Σ AUX SEND 2
AUX 2
AUX 3
Σ AUX SEND 3
AUX 3
AUX 4
Σ AUX SEND 4
AUX 4
PRE ON
Σ PROGRAM 1
PGM 1
Σ PROGRAM 2
Σ PROGRAM 3
Σ PROGRAM 4
PGM 4
FADER PAN
PGM 3
PGM 2
JOIN TALK TO X MIX
Σ TALK TO X
MUTE PREVIEW
Σ PREVIEW
HI, MID, LO EQ NORMAL
INVERT LEFT
INVERT RIGHT
INVERT BOTH
STEREO
LEFT
RIGHT
SUM L+R
Operator Microphone Channel Block
PRE ON
Σ PROGRAM 1
PGM 1
Σ PROGRAM 2
Σ PROGRAM 3
Σ PROGRAM 4
PGM 4
PGM 3
PGM 2
HOST
MICROPHONE
SOURCE
EQ / DYN
PHASE
Ø
PRE FDR
PRE FDR
PRE FDR
PRE FDR ON
AUX 1
Σ AUX SEND 1
AUX 1
AUX 2
Σ AUX SEND 2
AUX 2
AUX 3
Σ AUX SEND 3
AUX 3
AUX 4
Σ AUX SEND 4
AUX 4
PVW
Σ PREVIEW
FADER PAN
TALK TO X MIX
Σ TALK TO X
MUTE
HI, MID, LO EQ
COMPRESSOR
DE-ESSER
NOISE GATE
NORMAL
INVERT
