4: Element Operations • 61
©2008 Axia Audio — Rev. 3.0

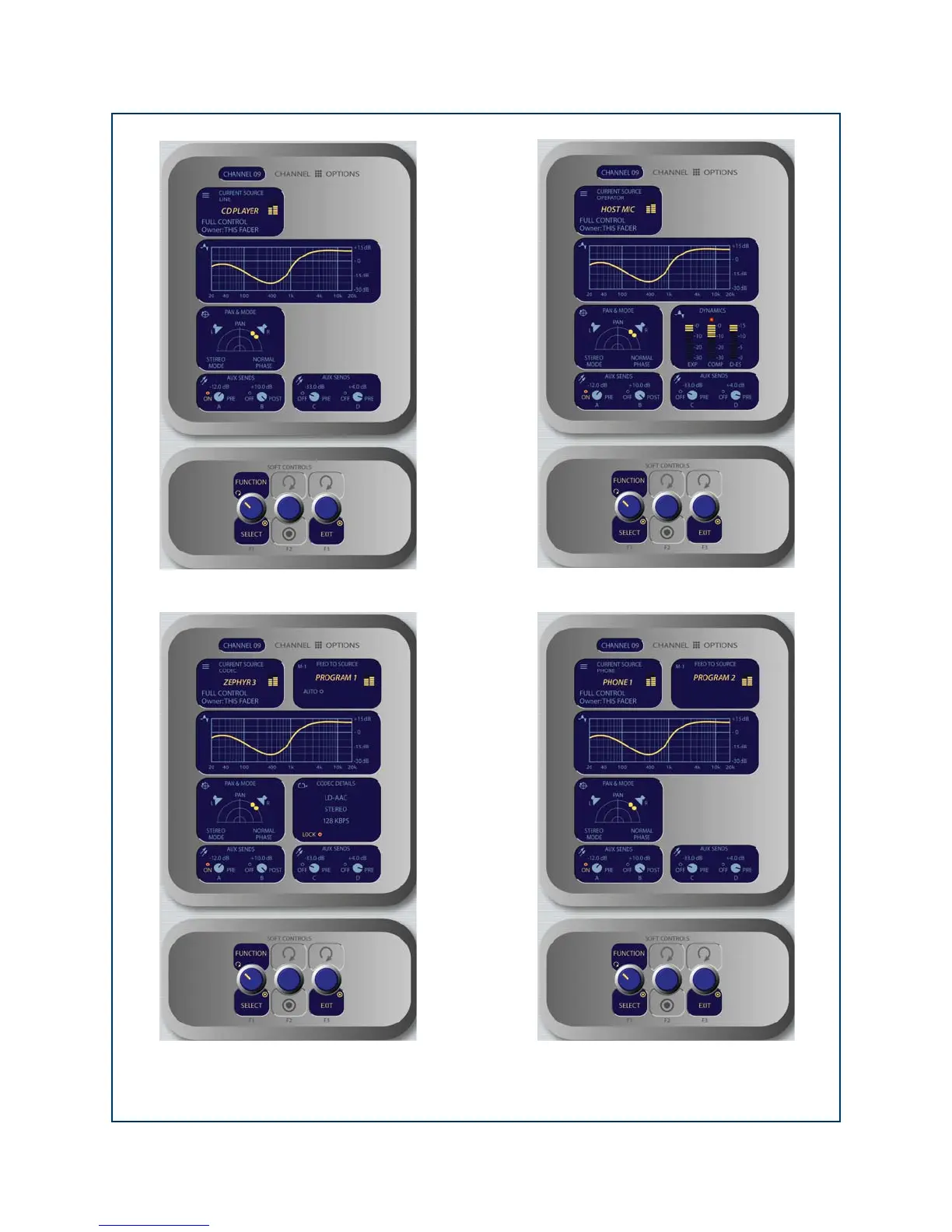

Figure 4-23: Channel Options screens for the Monitor + 2-Fader Module. Information displayed differs based on the type
of source currently assigned to the active fader. Clockwise from top left: Line Source Channel Options screen, Mic
Source Channel Options screen, Phone Source Channel Options screen, Codec Source Channel Options screen.
