which can operate Talk to... functions from a
remote producer’s panel. It also mutes CR moni-
tors when On.
CR Guest is used for any other guest mic in the
control room. Its associated logic port mutes the
CR monitors when On. It can have an individual
headphone feed.
Studio Guest is used for any mic located in a
separate studio. Its logic mutes the Studio moni-
tors when On. It can have an individual head-
phone feed.
Line is used for any line input audio source, ana-
log or digital. A GPIO logic port can be used to
provide machine start/stop pulses if desired.
Phone defines this source as a hybrid or broad-
cast phone system input. Summed mono mix-mi-
nus provided.
Codec marks this source as a codec. Dual-mono
mix-minus provided; one PA feed + one talent
feed with talkback.
Computer Player defines this source as origi-
nating from a PC. Associated GPIO logic can be
used to send start/stop signals to a playout sys-
tem.
About Telos Phone System Modes: Telos
TWOx12, Nx12 and Series 2101 broadast phone
systems work in two different modes: US Mode
and Euro Mode.
In US Mode, one of the phone system’s hy-
brids is assigned to a console faders, and tak-
ing a caller to air is accomplished by using a
switching control to select a line on that hybrid
and turning its fader ON.
In Euro Mode, the swiching control is not used;
instead, each line from the phone system is per-
manently assigned to a separate fader, which
may be turned ON or OFF at will.
Element supports both US and Euro modes. The
next few settings are used for setting up the
desired style of phone operation.
The next 4 options are used for EURO mode only:
PHONE HYBRID IP: If this source is a Telos Nx12,
TWOx12, Series 2101 or Telos TWO and you will be
operating in Euro mode, enter the IP address of the
phone system.
»
»
»
»
»
»
•

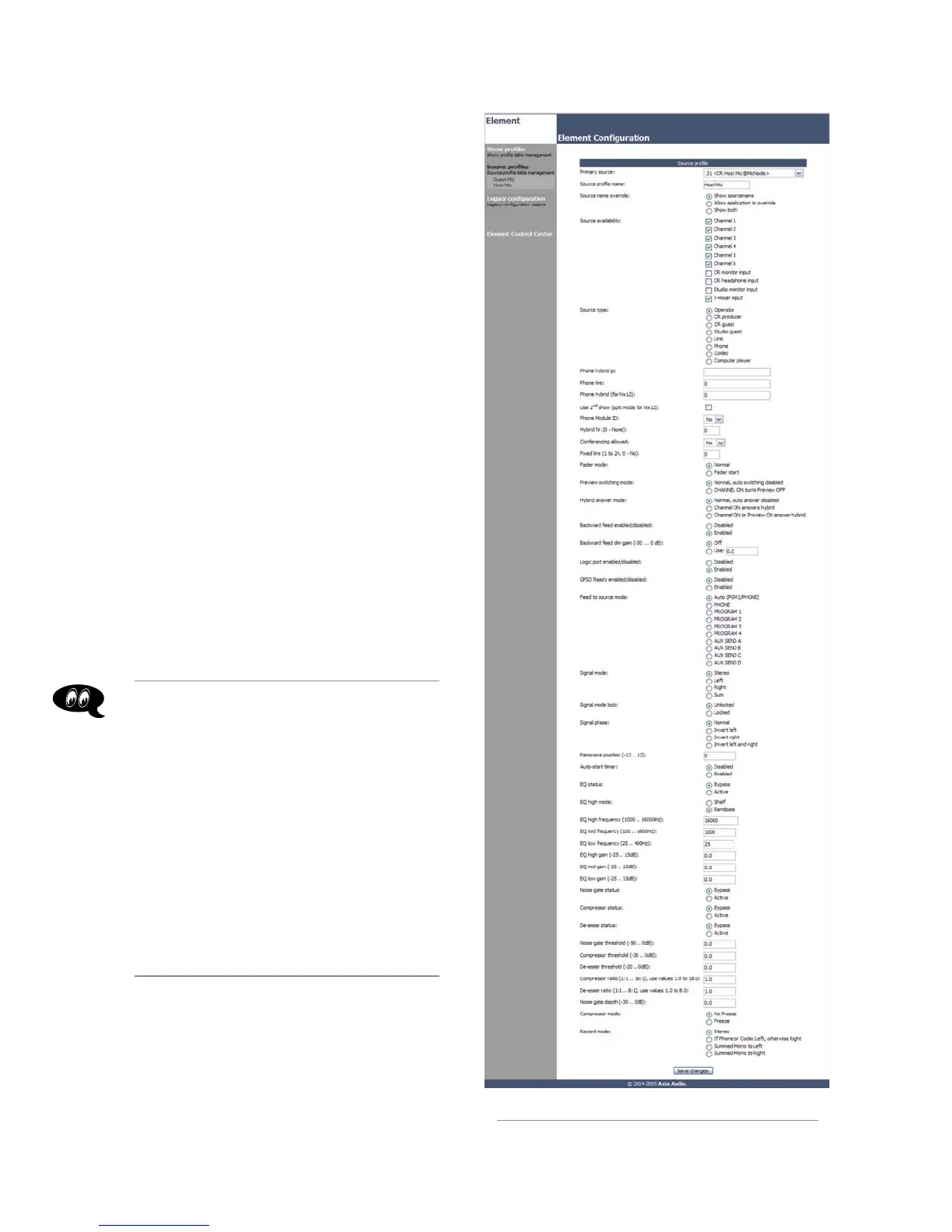

Figure 2-1: Source Prole options (yes, there are a lot!)
