DECS-200 BESTCOMS Software 5-15

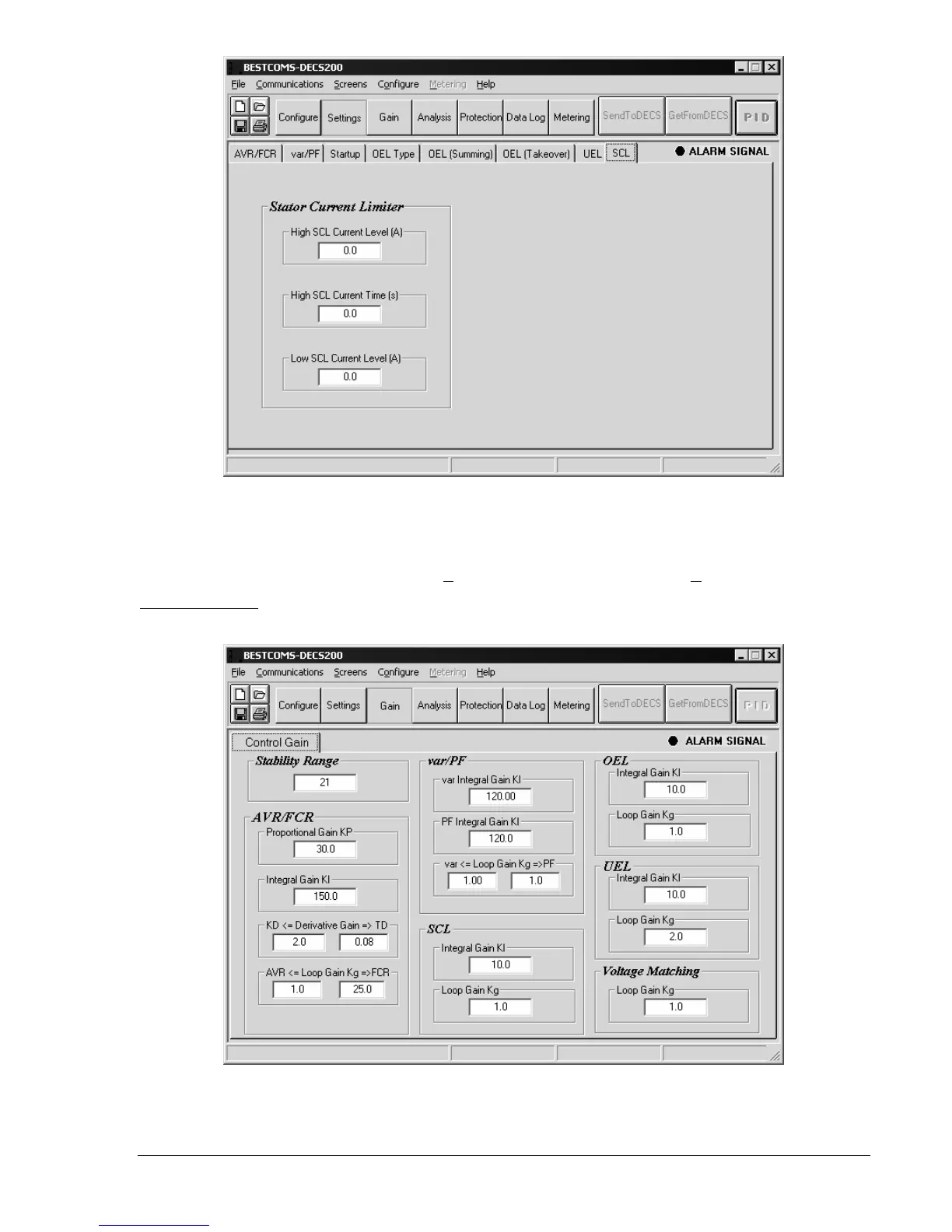

Figure 5-19. Setting Adjustments Screen, SCL Tab
Control Gain
The Control Gain screen consists of a single tab labeled Control Gain. To view the Control Gain screen,
click the Gain button on the tool bar or click S
creens on the menu bar and click Control Gain.
Control Gain Tab
Control Gain tab settings are illustrated in Figure 5-20 and described in the following paragraphs.
Figure 5-20. Control Gain Screen
Stability Range.
Entering a value from 1 to 20 selects one of 20 predefined stability setting groups for
exciter field applications. Table 5-1 lists the stability settings for each of the 20 predefined groups.
Entering 21 enables the PID function and allows the user to optimize the stability settings. The PID
To Next Page
