Basler DECS-200 - Setting Adjustments and Mode Configuration

6-4 Setup DECS-200

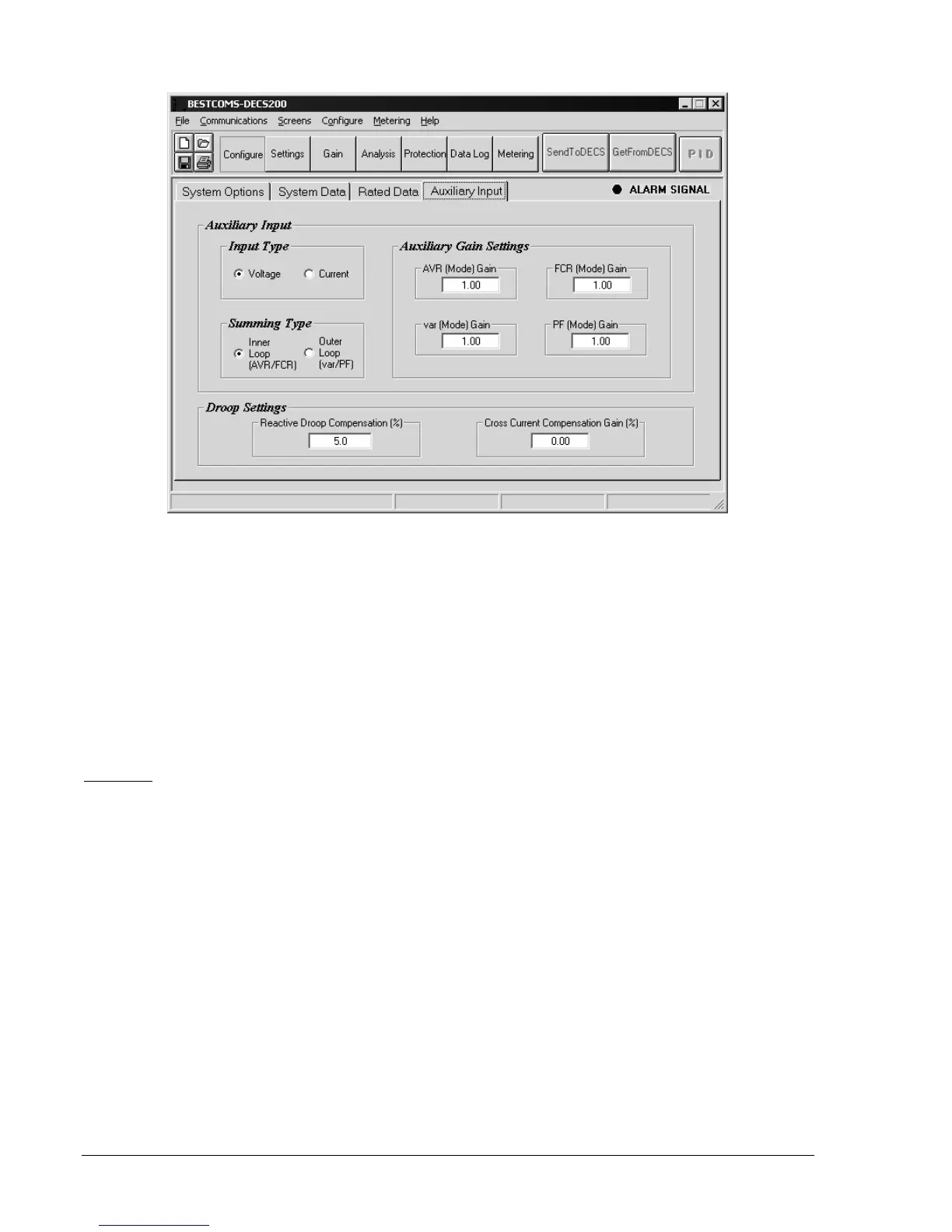

Figure 6-4. Auxiliary Input Tab
Enter the accessory input gain (multiplier) setting for var mode................................................... ________
Enter the accessory input gain (multiplier) setting for Power Factor mode .................................. ________
Enter the droop compensation level for paralleled generators or line-drop compensation .......... ________
Enter the cross-current compensation (reactive differential) gain for paralleled generators ........ ________
Setting Adjustments Screen
Enter the desired settings and enable the desired functions on each tab of the BESTCOMS Setting
Adjustments screen. Figures 6-5 through 6-9 illustrate the settings of each System Configuration screen
tab.
AVR/FCR
Configure the AVR mode and FCR mode settings illustrated in Figure 6-5. During commissioning, review
setpoints unique for starting; especially review those for the FCR (manual) mode where the system would
be started at the no-load excitation value or less. If pre-position is used, set the pre-position values as
required.
Enter the AVR setpoint based on the generator terminal voltage ................................................ ________
Enter the minimum desired AVR mode setpoint, expressed as a percent of nominal ................. ________
Enter the maximum desired AVR mode setpoint, expressed as a percent of nominal ................ ________
Enter the AVR mode traverse rate................................................................................................ ________
Enter the AVR mode pre-position setpoint ................................................................................... ________
Select either maintain or release as the AVR pre-position mode ................................................. ________
Enter the field current setpoint for FCR mode .............................................................................. ________
Enter the minimum desired FCR mode setpoint, expressed as a percent of nominal ................. ________
Enter the maximum desired FCR mode setpoint, expressed as a percent of nominal ................ ________
Enter the FCR mode traverse rate................................................................................................ ________
