DECS-200 Setup 6-5

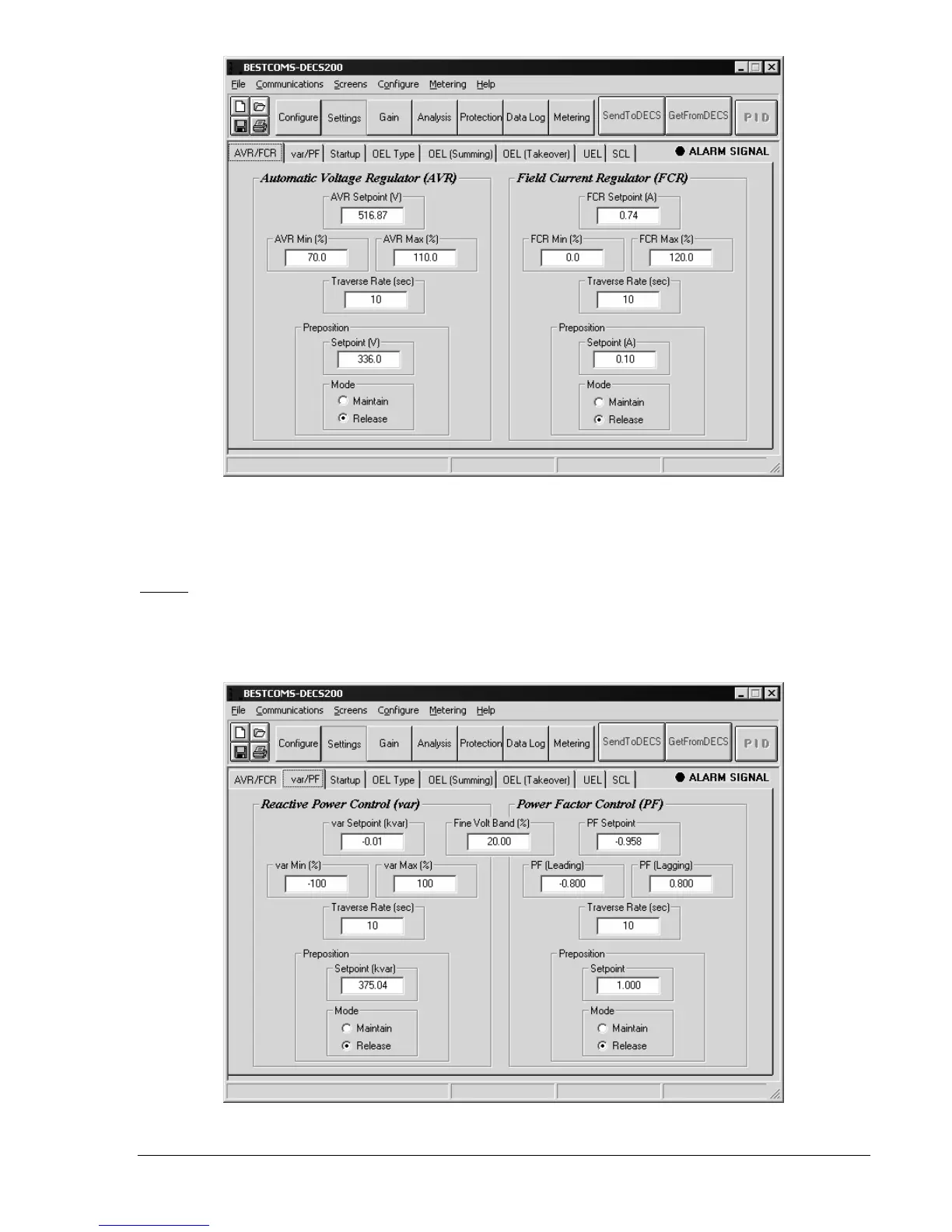

Figure 6-5. AVR/FCR Tab
Enter the FCR mode pre-position setpoint ................................................................................... ________
Select either maintain or release as the FCR pre-position mode ................................................. ________
Var/PF
Configure the var mode and power factor mode settings illustrated in Figure 6-7. If var or PF mode is
enabled, the setpoint will be active only after transfer occurs into the specific mode because autotracking
always forces a null condition to any operating mode.
Figure 6-6. Var/PF Tab
