DECS-200 Installation 4-7
Front Panel Connections
Front panel terminations consist of a nine-pin, female, D-type connector (Com 0) that is intended for
short-term, RS-232 serial communication with a PC operating BESTCOMS software. Refer to Section 5,
BESTCOMS Software
for information about using BESTCOMS to communicate with the DECS-200.
Left-Hand Panel Connections
Left-hand panel terminations consist of screw compression terminals. These terminals are illustrated in
Figure 4-6. Table 4-2 lists the wire size capacity and maximum screw torque for each terminal on the left-
hand panel.

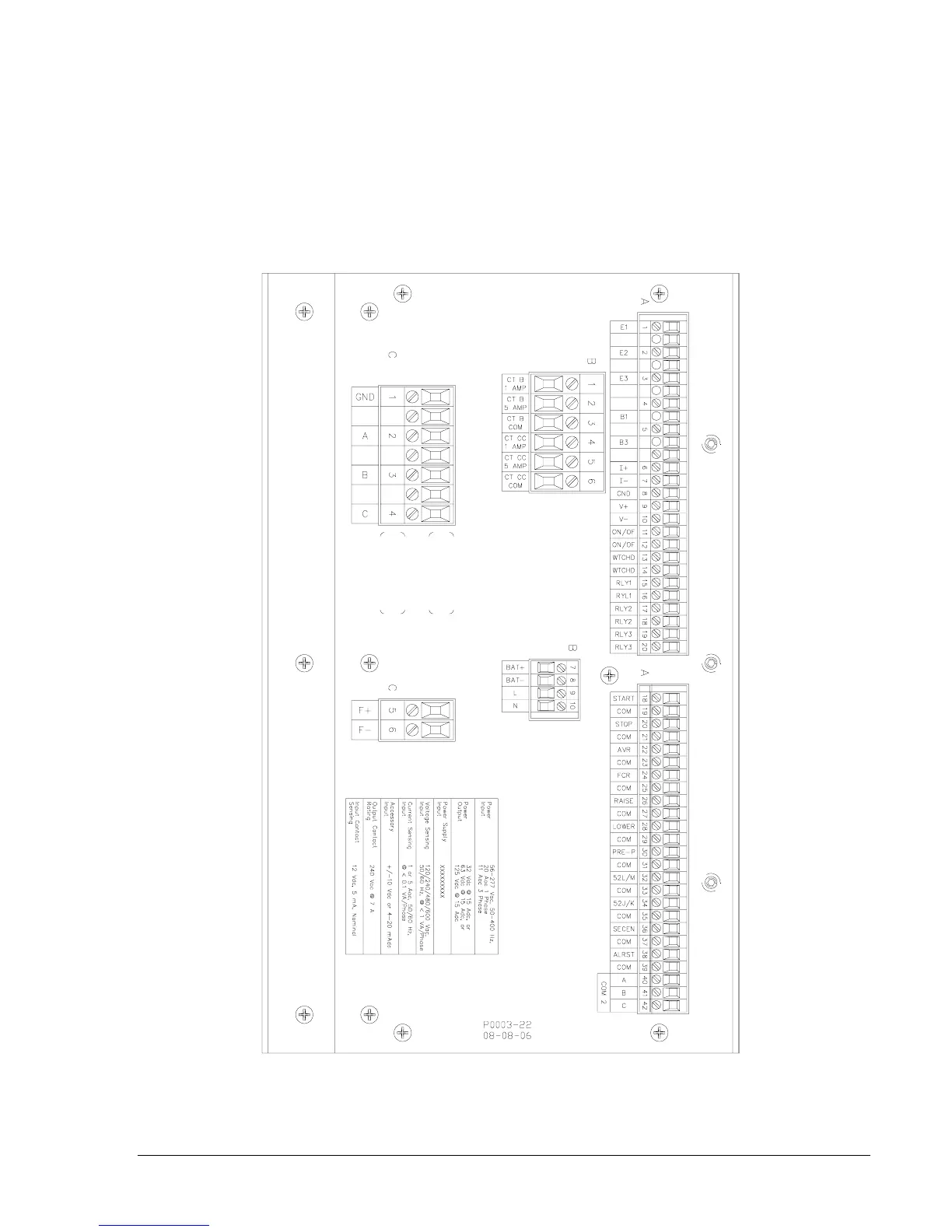

Figure 4-6. DECS-200 Left-Side Terminals
