baxter Auto Syringe AS50 Service Manual

Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES
7 - 6
7.2.4.2 Specific Barrel Clamp Assembly Instructions
1. Place a new Barrel Clamp Zebra Strip (1) in the pocket on the pump located beneath
the zebra strip support (2). Ensure that, during installation, the metallic strips face
toward the top of the pump.
2. Lay the pump face down on a smooth surface so that the pump’s plunger driver (3) is
facing the outside edge of the work surface. With the Barrel Clamp Assembly (4)
positioned so that the words “PRESS HERE” on the Clamp Face Decal also face the
outside edge of the work surface, gently place the Barrel Clamp Assembly (4) into the
recessed area on the case (5).
OUTSIDE EDGE OF
WORK SURFACE
3
4
5
6
7
8
1
METALLIC SIDE
9
2

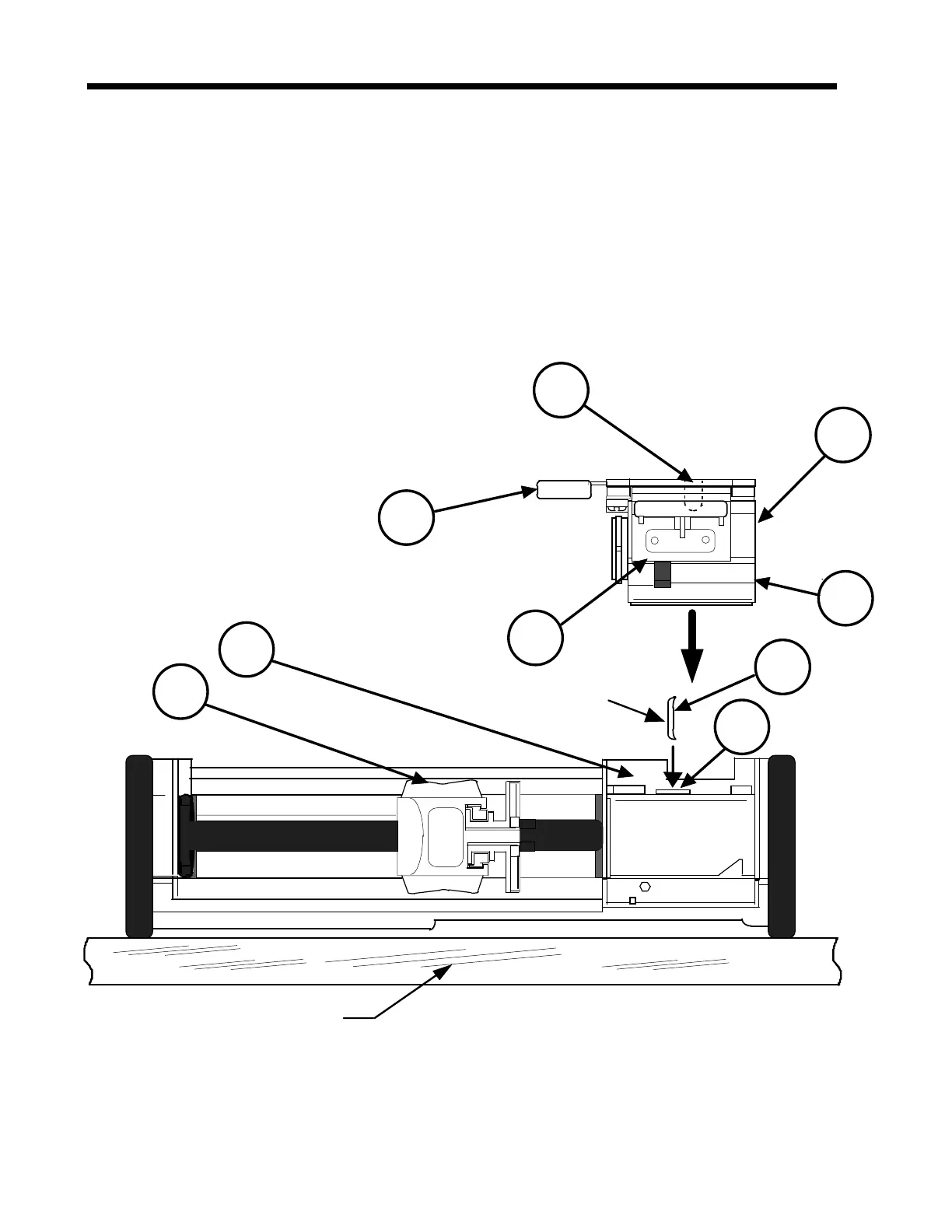

Figure 7-5 Barrel Clamp Assembly Installation
