8.1.6. Dismantling the top tray

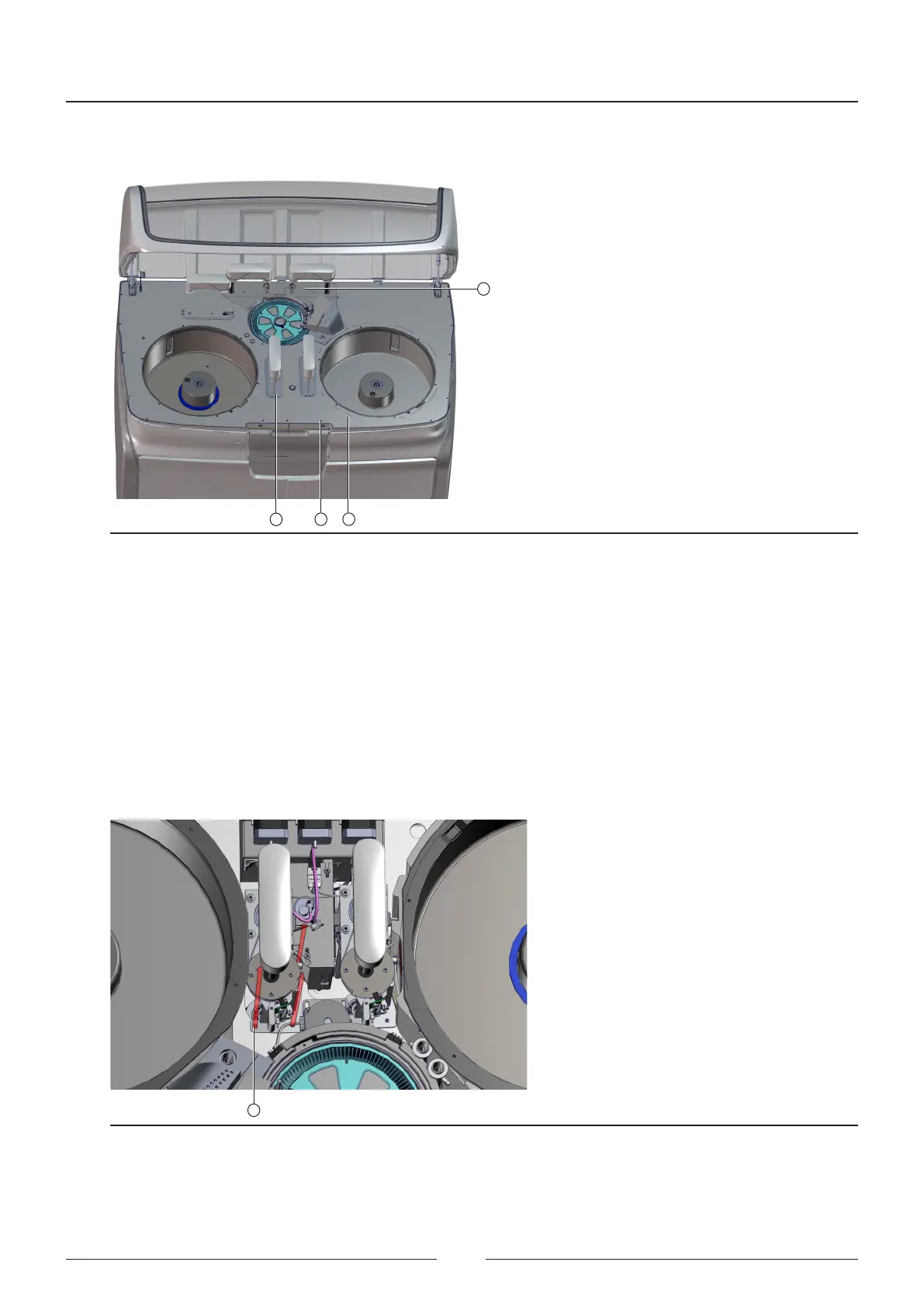

Figure 8.36 Dismantling the top cover
3
1
2
4
1. Lift all the arms and the wash station manually.
2. Remove the plastic protective caps (1) from the base of the arms.
3. Remove the plastic cap from the base of the stirrers (4).
4. Remove all the screws (2) securing the cover.
5. Lower the arms manually to the lowest level.
6. Remove the top cover(3). Take care in handling it, as it is very large.
8.2. Remove the sample and reagent arms and the stirrers
Figure 8.37 Dismantling the arm assembly
1
1. Remove the top cover.
