biosystems BA 400 - Dismantling the Reaction Rotor

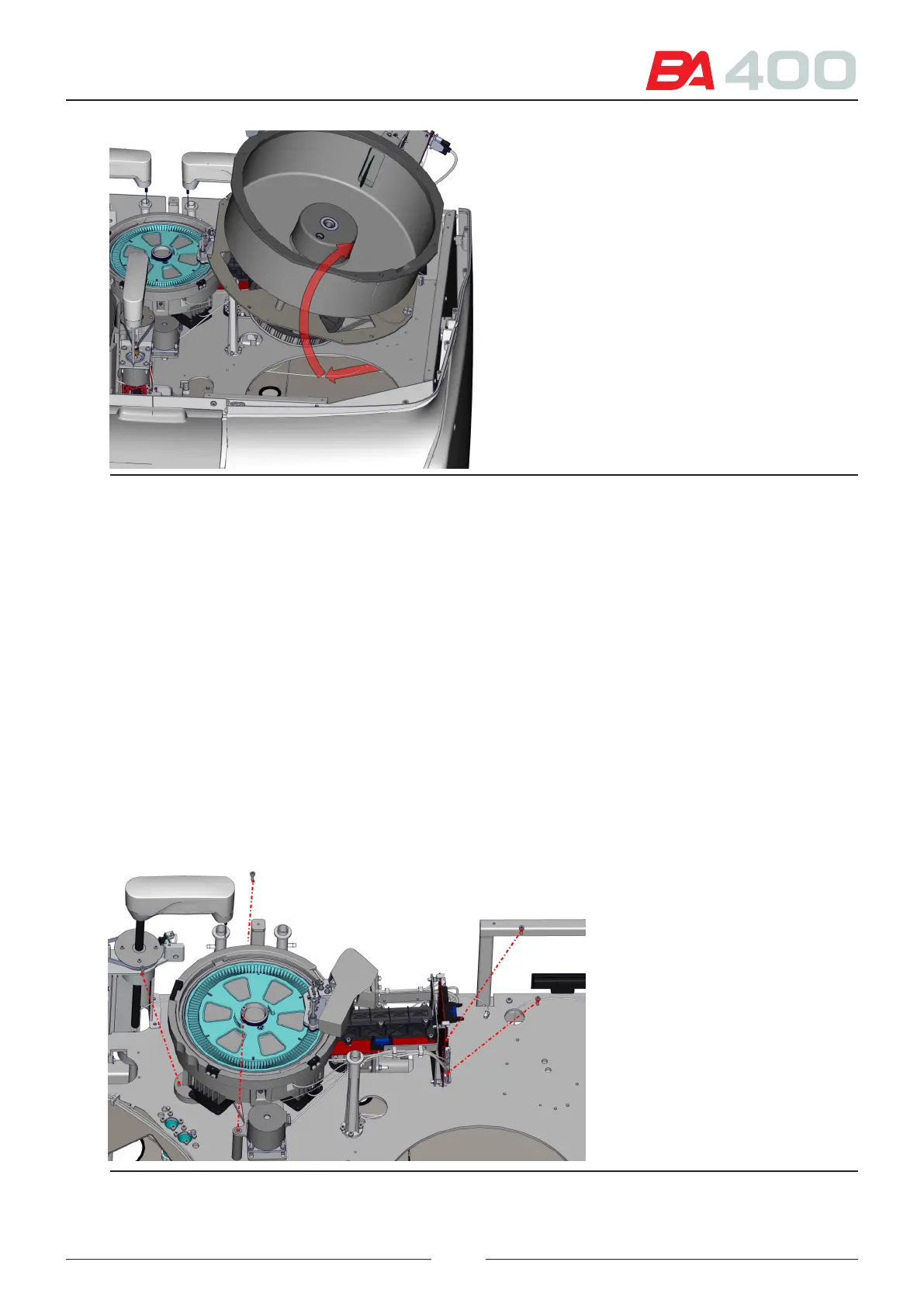

Figure 8.41 Movements required to take the rotor out of the analyser
8.5. Dismantling the reaction rotor
1. Remove the top cover.
 See chapter 8.1.6
2. Unplug the CAN cable.
3. Remove the stirrer 2 arm
 See chapter 8.2
4. Remove the sample rotor
 See chapter 8.4
5. Loosen the 5 screws shown in Figure 8.11
6. Take the rotor assembly out of the analyser
Figure 8.42 Reaction rotor anchoring screws
103
