Page 26
3 Specifications of the Devices
3.2.3 Front & Rear View

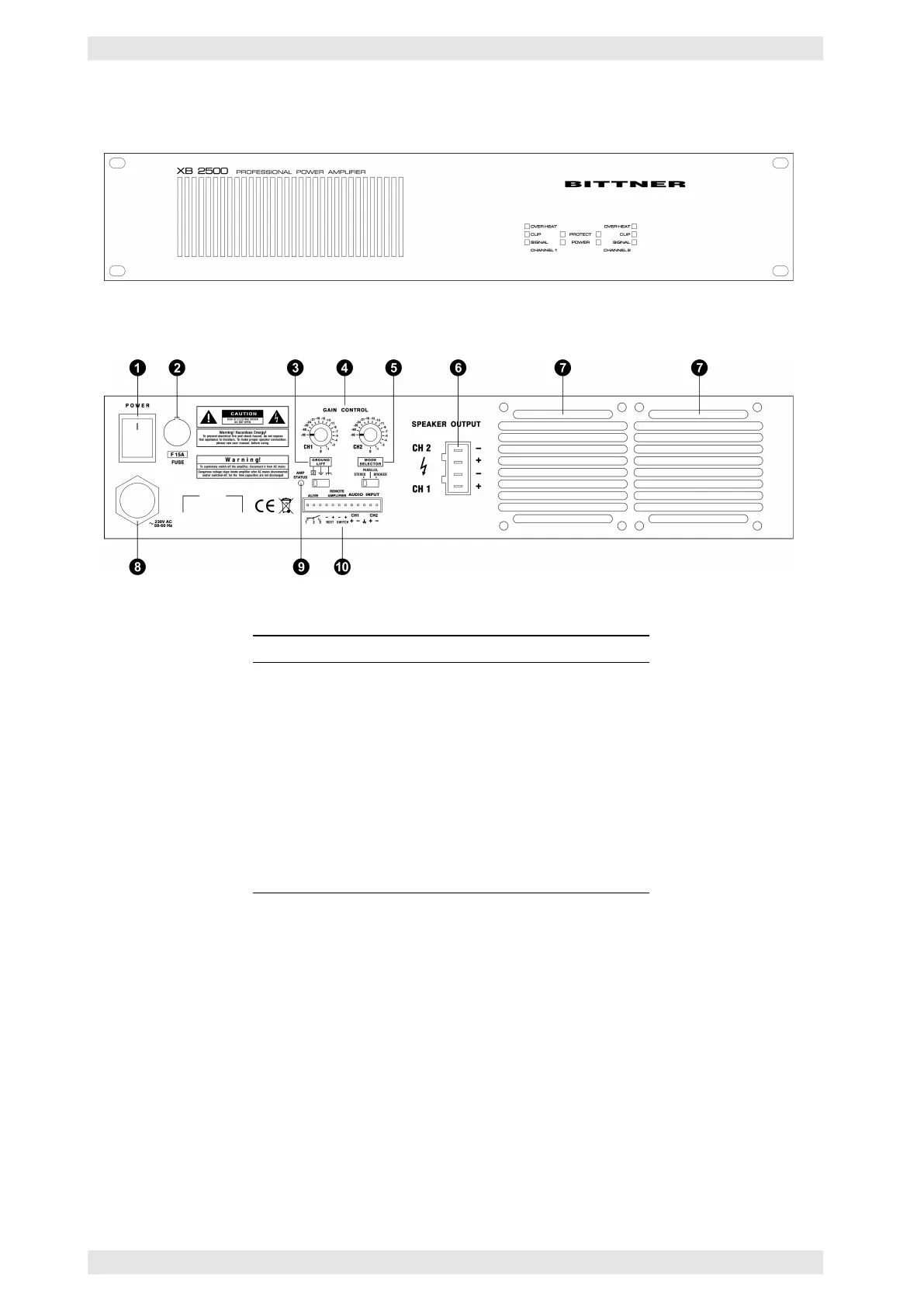

Figure 3.3: XB Series - Front View
Figure 3.4: XB Series - Rear View
Connectors and Controls of the rear panel Reference
1 Mains Power Switch section 2.1
2 Fuse Mains Supply
3 Ground Lift section 2.7
4 Volume Controls section 2.5.1
5 Operation Mode section 2.9
6 Loudspeaker Outputs section 2.8.1
7 Fan
8 Pluggable Mains Cord
9 Status LED section 2.4.2
10 Alive Contact section 2.10
10 Remote Power On/Off section 2.3.1
10 Audio Inputs section 2.6.1
