3 Specifications of the Devices
Page 45

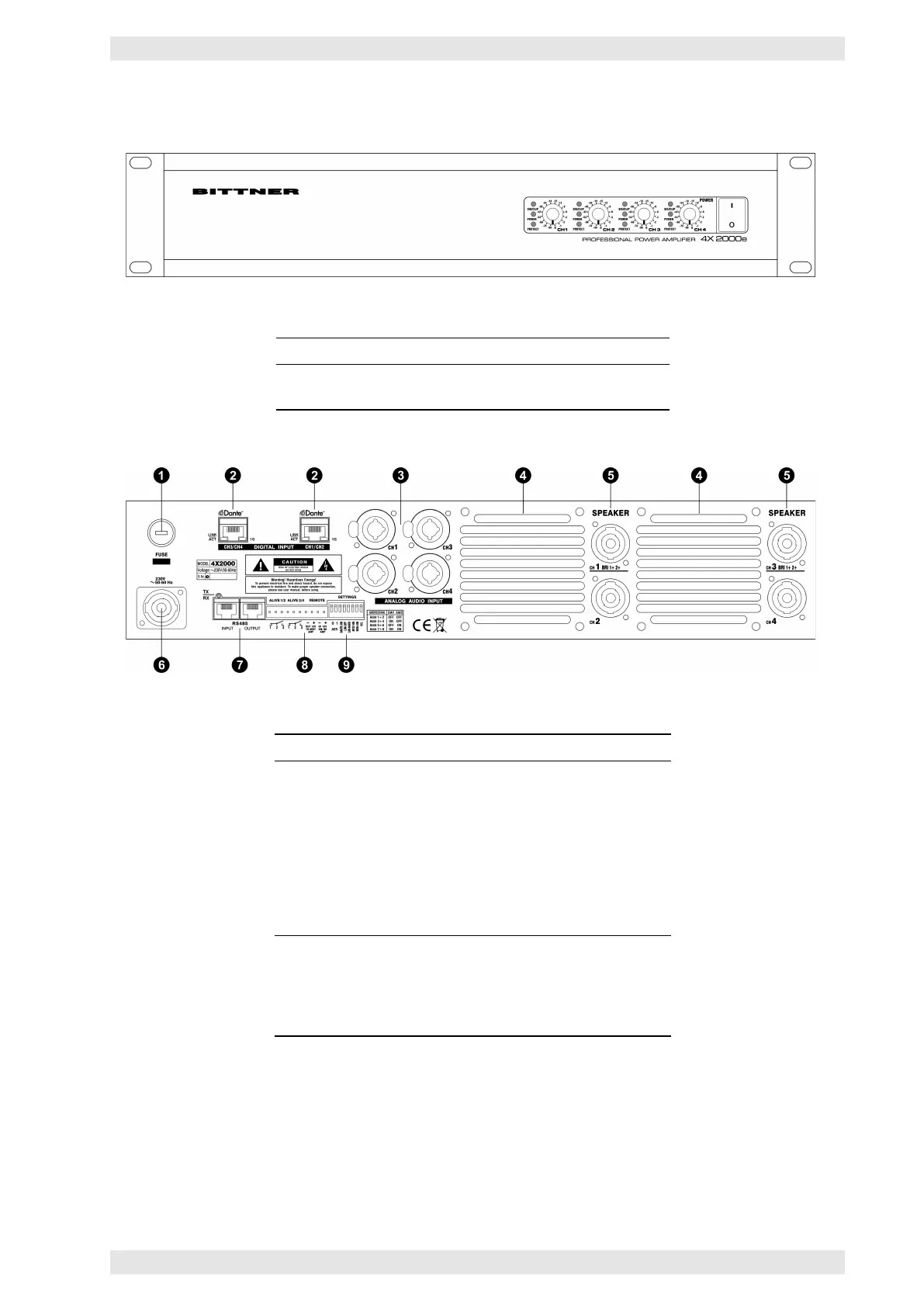

3.7.4 Front & Rear View 4Xe
Figure 3.22: 4Xe Series - Front View
Connectors and Controls of the front panel Reference
Mains Power Switch section 2.1
Volume Controls section 2.5.2
Figure 3.23: 4Xe Series - Rear View
Connectors and Controls of the rear panel Reference
1 Fuse Mains Supply
2 Audio Inputs Dante
TM
(optional) section 3.7.8
3 Audio Inputs COMBO section 2.6.2
4 Fan
5 Loudspeaker Outputs SPEAKON section 3.7.6
6 powerCON Connector
7 RS–485 Data Port section 2.11
8 Alive Contacts section 2.10
8 Remote Power On/Off section 2.3.1
9 DIP Switches
Address-ID section 2.12
DANTE
TM
On/Off section 3.7.8
Clip Limiter section 3.7.7
Operation Mode section 2.9
c
 2016 Bittner Audio Int. GmbH
