bittner XB400 - Front & Rear View

3 Specifications of the Devices
Page 61
3.13.3 Front & Rear View

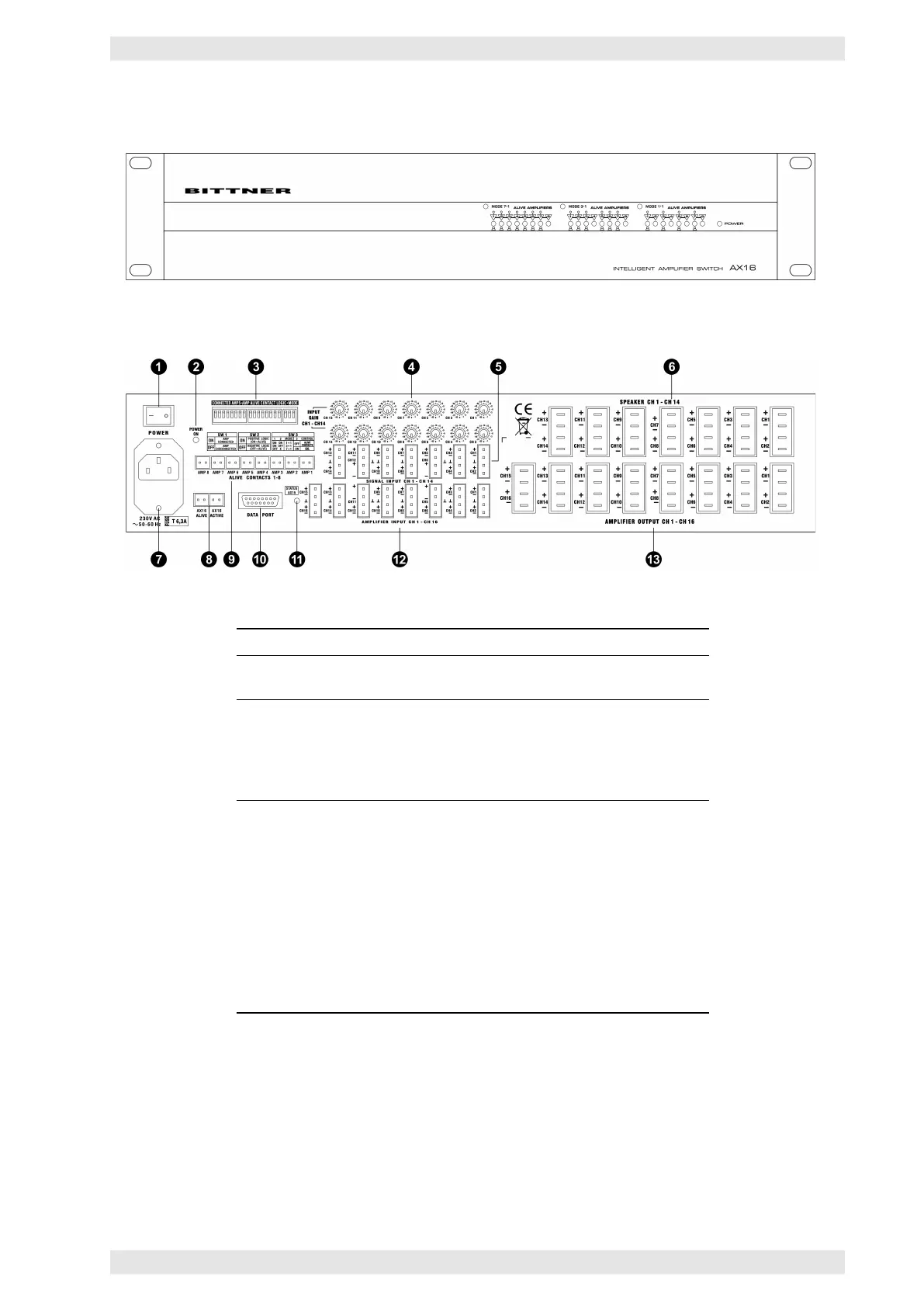

Figure 3.38: AX16 - Front View
Figure 3.39: AX16 - Rear View
Anschlüsse und Bedienelemente auf der Rückseite Referenz
1 Mains Power Switch
2 Power On LED section 3.13.4
3 DIP Switch
Apmlifier connected section 3.13.5.2
Logic Alive Contact section 3.13.5.3
Switching Mode section 3.13.5.1
Control Mode section 3.13.5.4
4 Volume Controls section 3.13.8
5 Audio Inputs section 3.13.6.1
6 Loudspeaker Outputs section 3.13.6.2
7 Pluggable Mains Cord
7 Fuse Mains Supply
8 Alive Contacts section 3.13.9
9 Alive Inputs section 3.13.6.3
10 I
2
C Data Port section 3.13.7
11 Status LED section 3.13.4
12 Amplifier Inputs section 3.13.6.1
13 Amplifier Outputs section 3.13.6.2
