bittner XB400 - Front and Rear View

Page 72
3 Specifications of the Devices
3.14.3 Front and Rear View

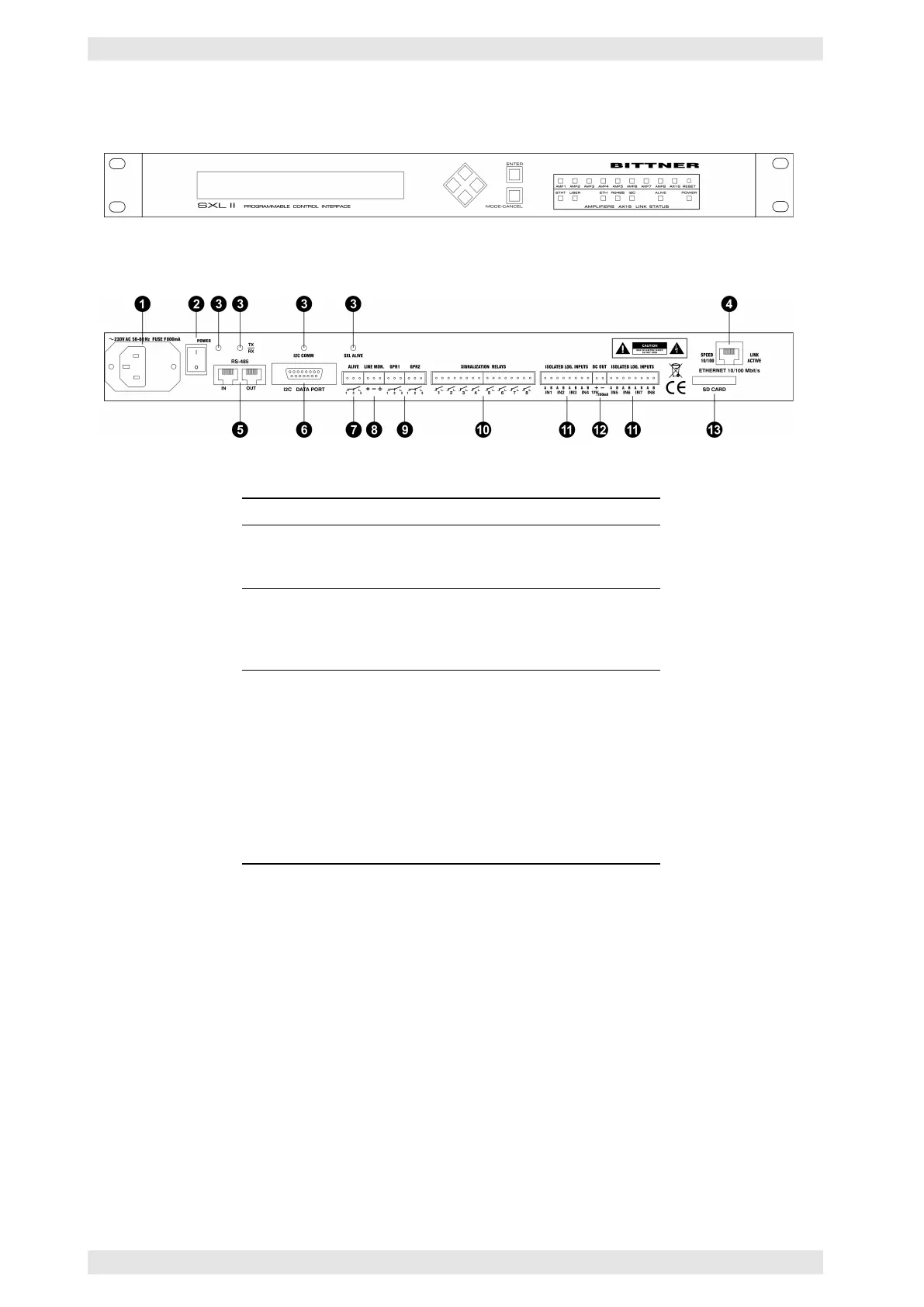

Figure 3.54: SXL II - Front View
Figure 3.55: SXL II - Rear View
Connectors and Controls of the rear panel Reference
1 Pluggable Mains Cord
1 Fuse Mains Supply
2 Mains Power Switch
3 LED Power On section 3.14.5
LED RS–485 Activity section 3.14.5
LED I
2
C Activity section 3.14.5
LED SXL II Alive section 3.14.5
4 Ethernet Connector section 3.14.4.1
5 RS–485 Data Port section 3.14.4.2
6 I
2
C Data Port section 3.14.4.2
7 Alive Contact section 2.10
8 Audio Output Signal Generator section 3.14.6.4
9 General Purpose Relay Outputs section 3.14.6.3
10 Relay Outputs Signalization section 3.14.6.2
11 Logical Inputs section 3.14.6.1
12 Auxiliary Voltage section 3.14.6.1
13 SD Card Slot section 3.14.10
c
