3 Specifications of the Devices
Page 53

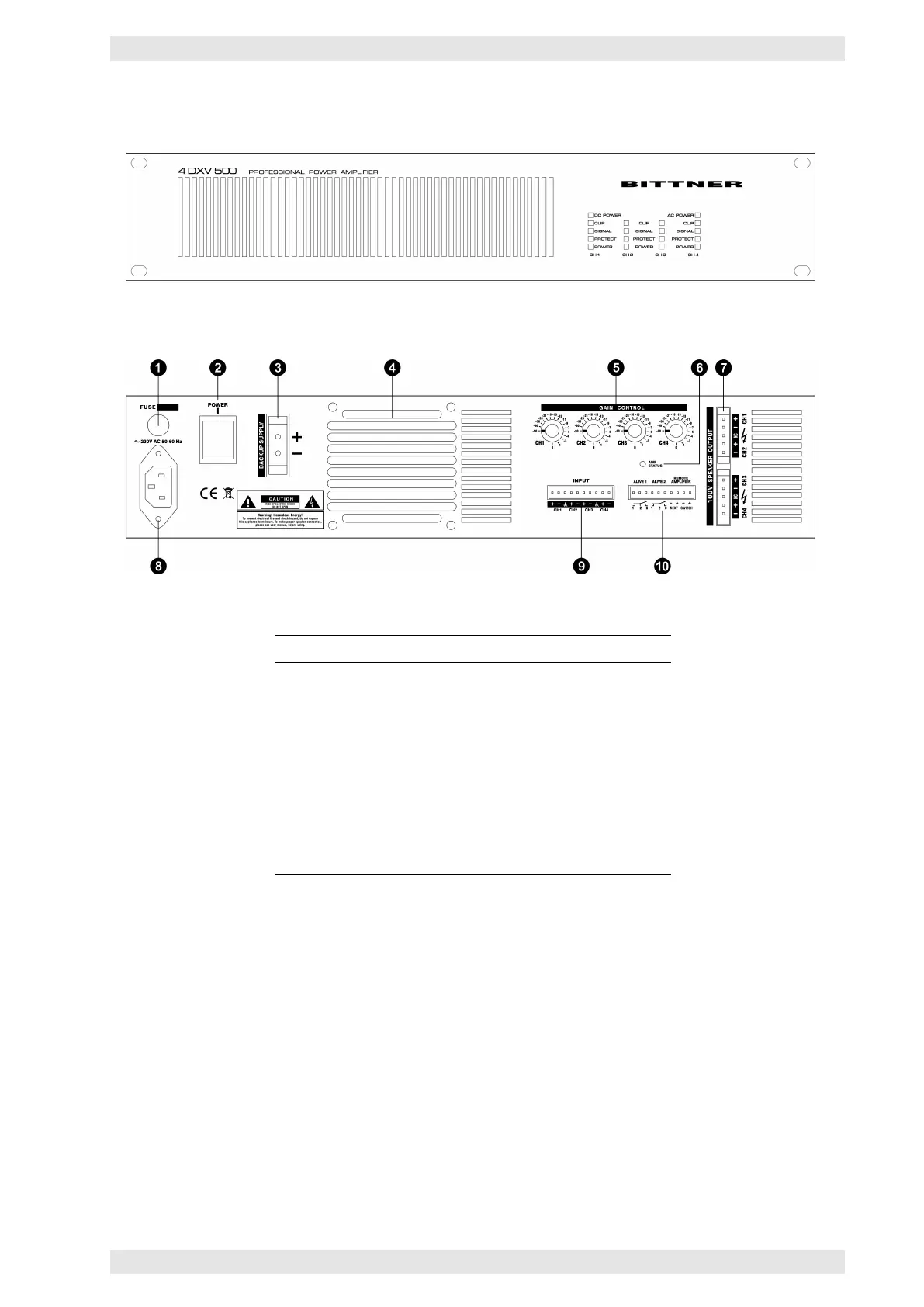

3.9.3 Front & Rear View
Figure 3.29: 4DXV Series - Front View
Figure 3.30: 4DXV Series - Rear View
Connectors and Controls of the rear panel Reference
1 Fuse Mains Supply
2 Mains Power Switch section 2.1
3 Backup Power Connector section 2.2
4 Fan
5 Volume Controls section 2.5.1
6 Status LED section 2.4.2
7 100V Loudspeaker Outputs section 2.8.1
8 Pluggable Mains Cord
9 Audio Inputs section 2.6.1
10 Alive Contacts section 2.10
10 Remote Power On/Off section 2.3.1
