3 Speciﬁcations of the Devices

3.13.10 Application Examples

3.13.10.1 Mode 7+1 with Alive Contacts

In this example all 8 ampliﬁers are connected to the AX16 via their alive contacts. Ampliﬁer no. 8 is the

backup ampliﬁer.

Bittner Amp 1

Bittner Amp 2

Bittner Amp 3

Bittner Amp 4

Bittner Amp 5

Bittner Amp 6

Bittner Amp 7

Bittner Amp 8

AX16 Connection

Alive Contacts

AX16

Input Gain

AX16 Connection

Signal Input

AX16 Connection

Ampliﬁer Input

AX16 Connection

Ampliﬁer Output

AX16 Connection

Speaker

Program Amp

Backup Amp

Cable Connection

Internal AX16 Connection

AX16 DIP Switch Settings

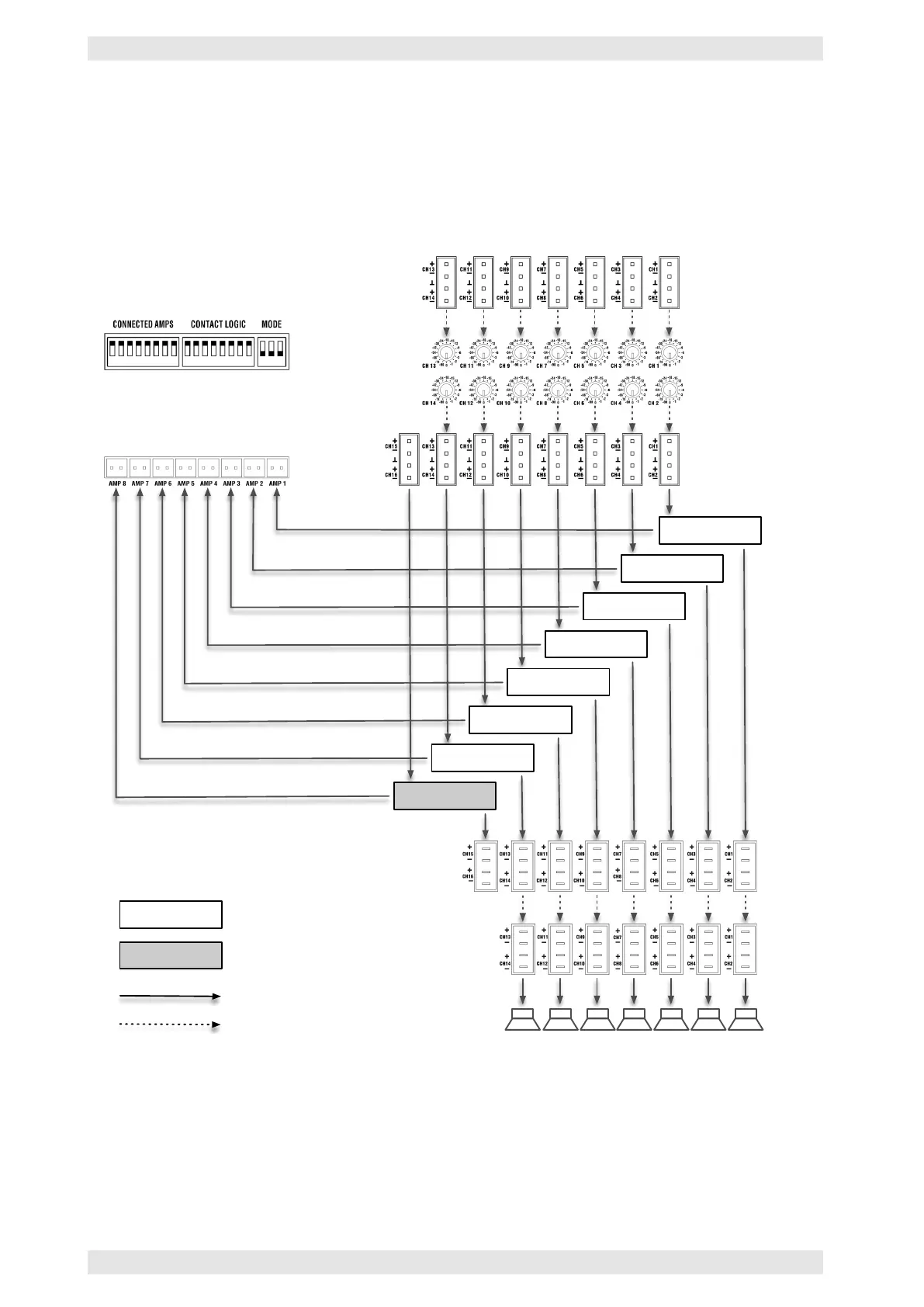

Figure 3.51: AX16 - Mode 7+1 with Alive Contacts
