Page 32
3 Specifications of the Devices
3.4.3 Front & Rear View

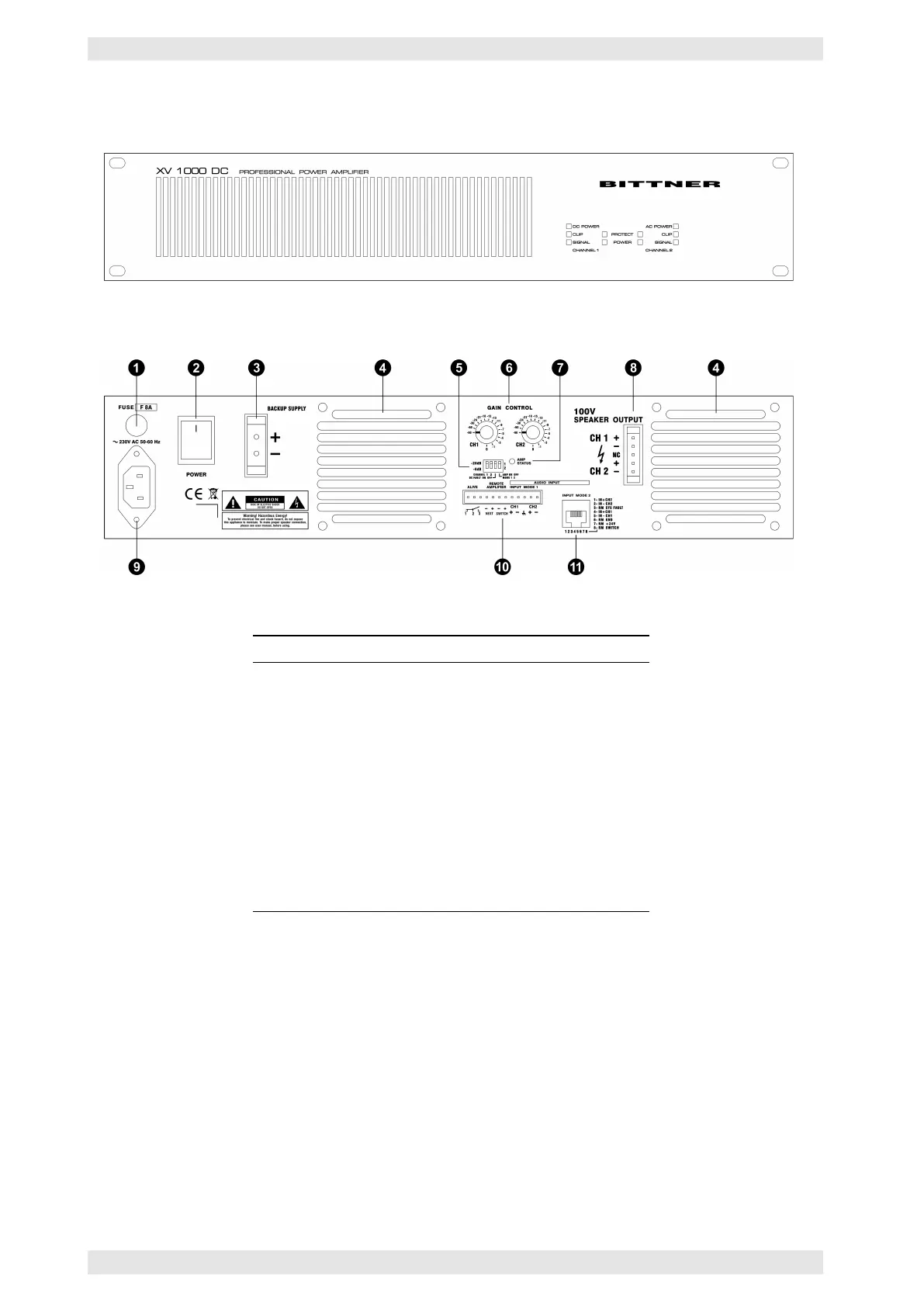

Figure 3.9: XV DC Series - Front View
Figure 3.10: XV DC Series - Rear View
Connectors and Controls of the rear panel Reference
1 Fuse Mains Supply
2 Mains Power Switch section 2.1
3 Backup Power Connector section 2.2
4 Fan
5 DIP Switch section 3.4.5
6 Volume Controls section 2.5.1
7 Status LED section 2.4.2
8 100V Loudspeaker Outputs section 2.8.1
9 Pluggable Mains Cord
10 Alive Contact section 2.10
10 Remote Power On/Off section 2.3.1
10 Audio Inputs section 2.6.1
11 Multifunction Connector section 3.4.4
