3 Specifications of the Devices
3.8.3 Front & Rear View

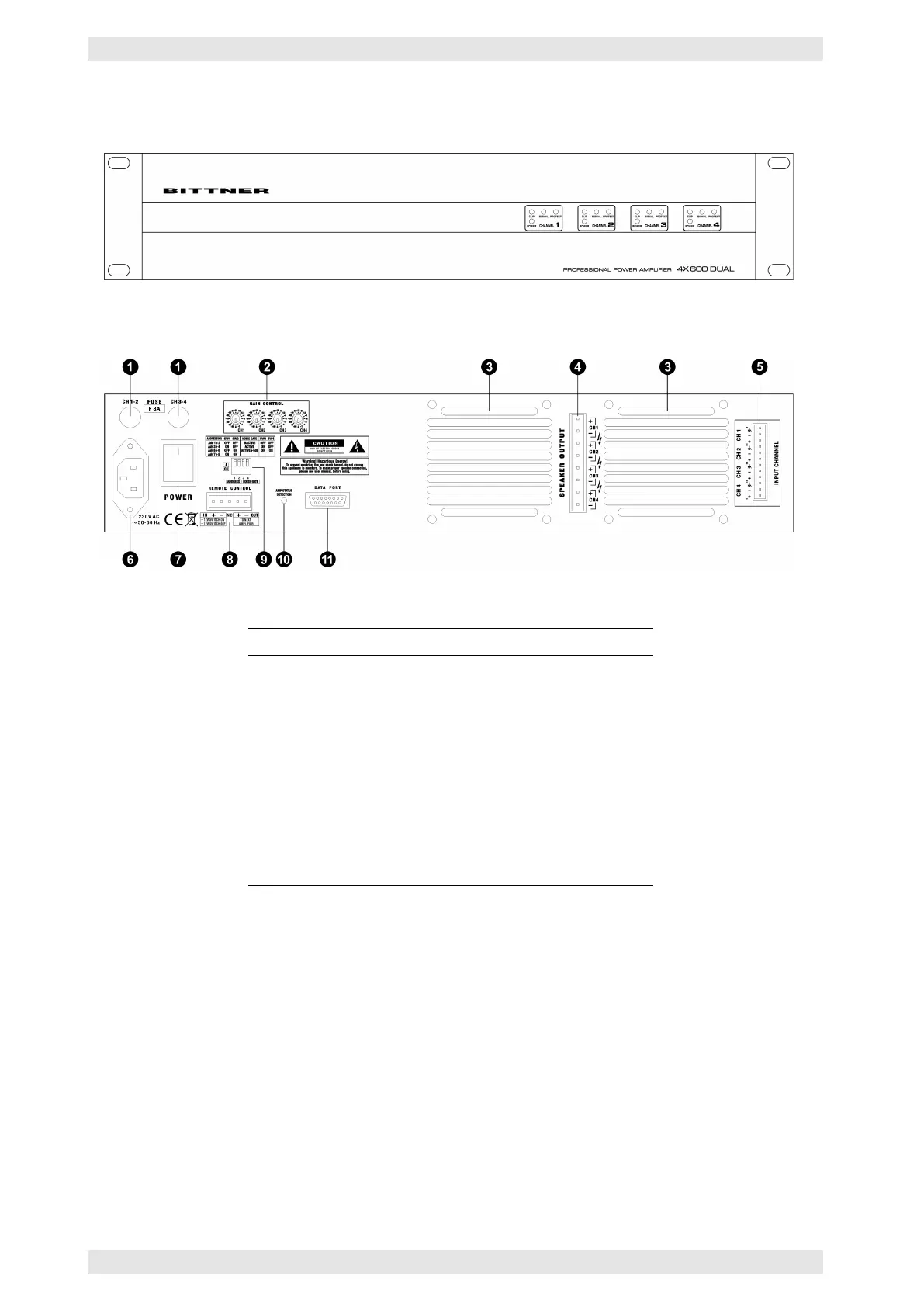

Figure 3.26: 4X DUAL Series - Front View
Figure 3.27: 4X DUAL Series - Rear View
Connectors and Controls of the rear panel Reference
1 Fuse mains Supply
2 Volume Controls section 2.5.3
3 Fan
4 Loudspeaker Outputs section 2.8.1
5 Audio Inputs section 2.6.1
6 Pluggable Mains Cord
7 Mains Power Switch section 2.1
8 Remote Power On/Off section 2.3.1
9 Address-ID section 2.12
9 Noise Gate section 2.13
10 Status LED section 2.4.2
11 I
2
C Data Port section 2.11.1
c
