3 Specifications of the Devices
Page 29

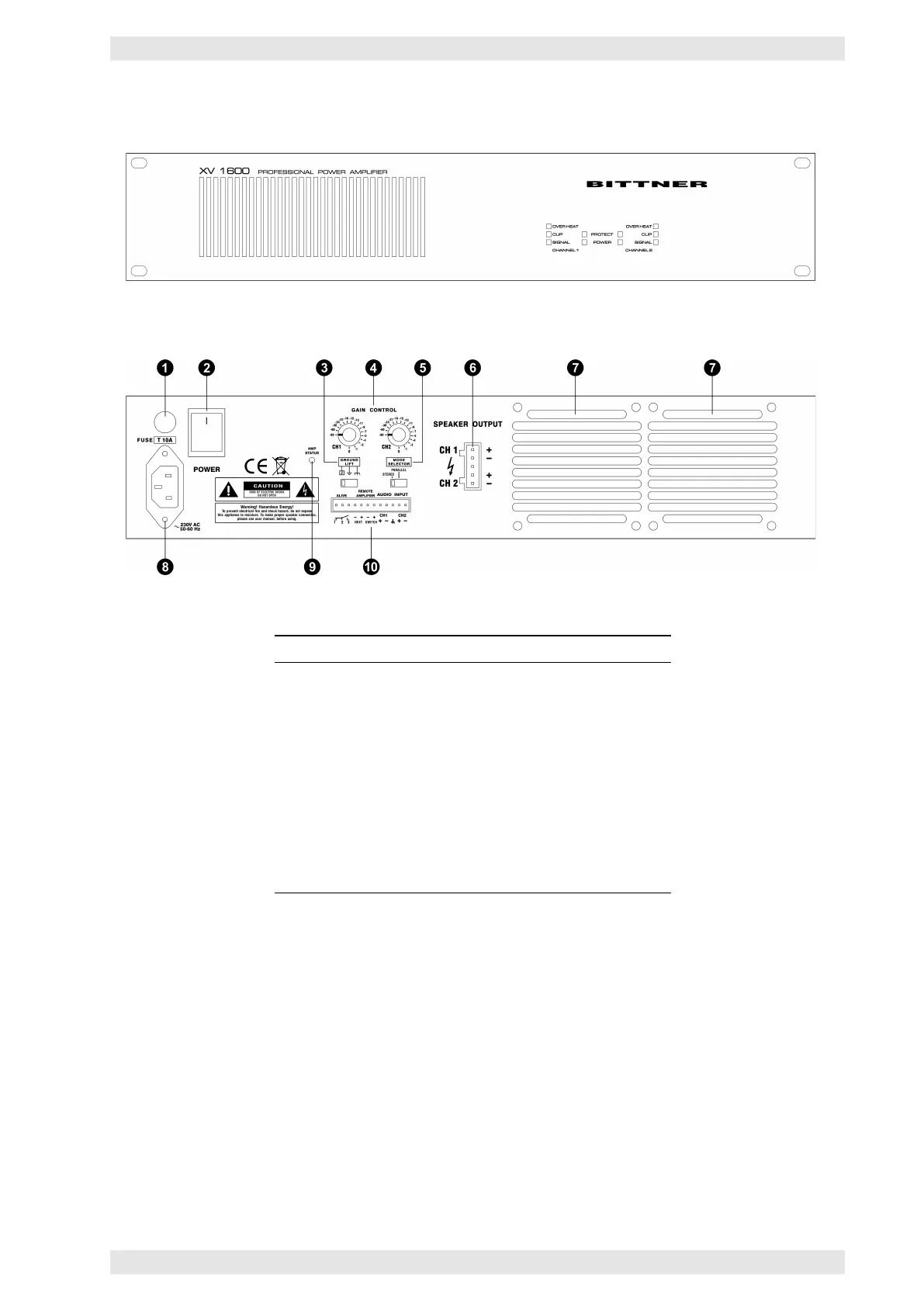

3.3.3 Front & Rear View
Figure 3.6: XV Series - Front View
Figure 3.7: XV Series - Rear View
Connectors and Controls of the rear panel Reference
1 Fuse Mains Supply
2 Mains Power Switch section 2.1
3 Ground Lift section 2.7
4 Volume Controls section 2.5.1
5 Operation Mode section 2.9
6 Loudspeaker Outputs section 2.8.1
7 Fan
8 Pluggable Mains Cord
9 Status LED section 2.4.2
10 Alive Contact section 2.10
10 Remote Power On/Off section 2.3.1
10 Audio Inputs section 2.6.1
