Page 48
3 Specifications of the Devices
3.7.8 Dante
TM
Inputs
The amplifier may be optionally equipped with a Dante
TM
(audio) interface. The interface complements the
amplifier with 4 additional inputs.
Older Dante
TM
cards use two RJ–45 input with 2 audio channels each. Newer cards provide one RJ–45 input
for all 4 audio channels.

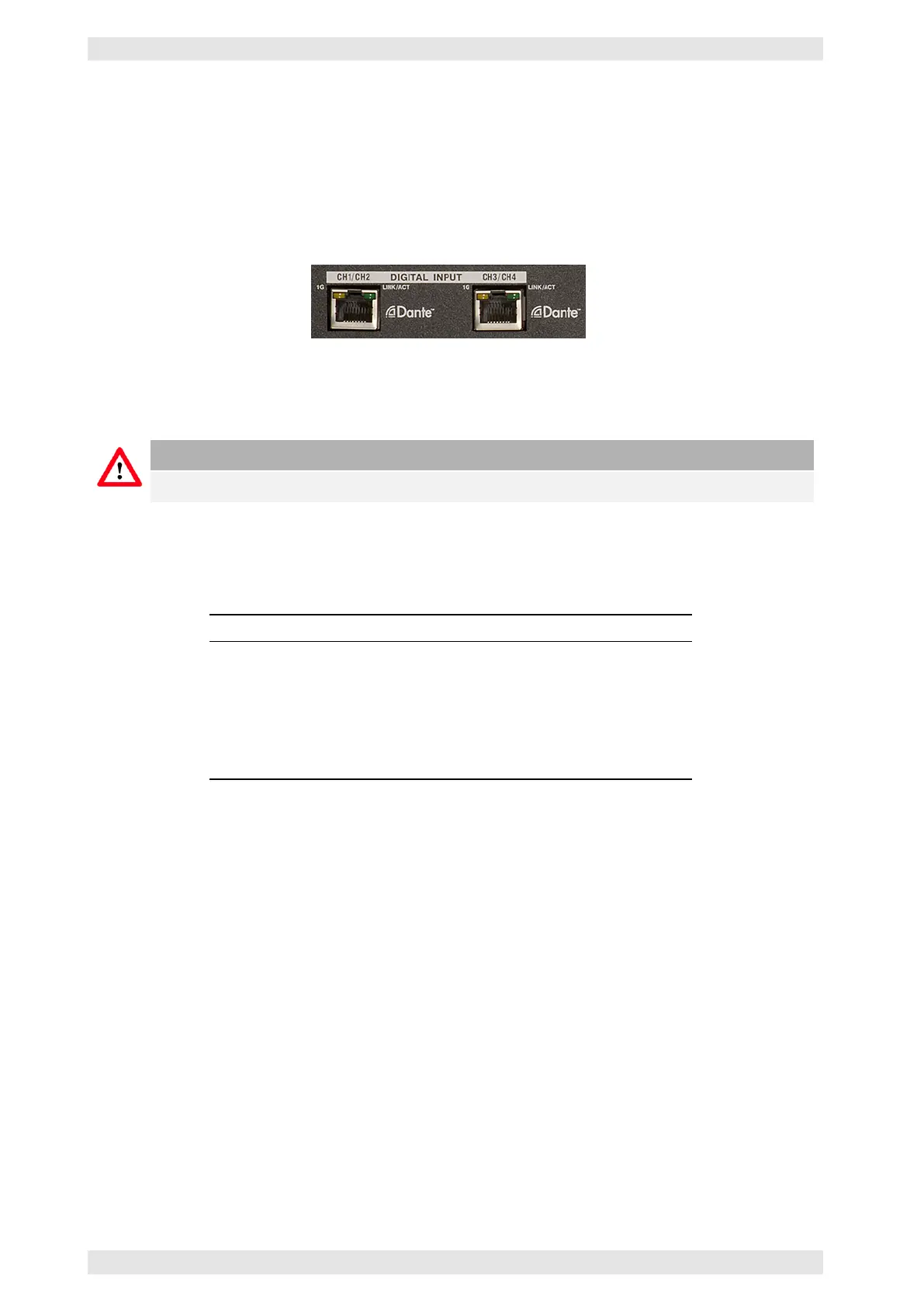

Figure 3.25: 4Xi/4Xe Series - Dante
TM
Ports
The digital inputs may be engaged by means of a DIP switch (refer to section 3.7.9).
Caution
The analog inputs remain active regardless of the use of the Dante
TM
interface.
3.7.9 DIP Switches
The amplifier backside features a block of 8 DIP switches:
Switch Function
1 + 2 Address-IDs (refer to section 2.12)
3 Dante
TM
Inputs On/Off
4 Clip Limiter On/Off
5 Characteristic Clip Limiter: Soft = OFF /Hard = ON
6 Bridged Operation for channel 1 and 2 (refer to section 2.9.3)
7 Bridged Operation for channel 3 and 4 (refer to section 2.9.3)
8 not in use
c
2016 Bittner Audio Int. GmbH
