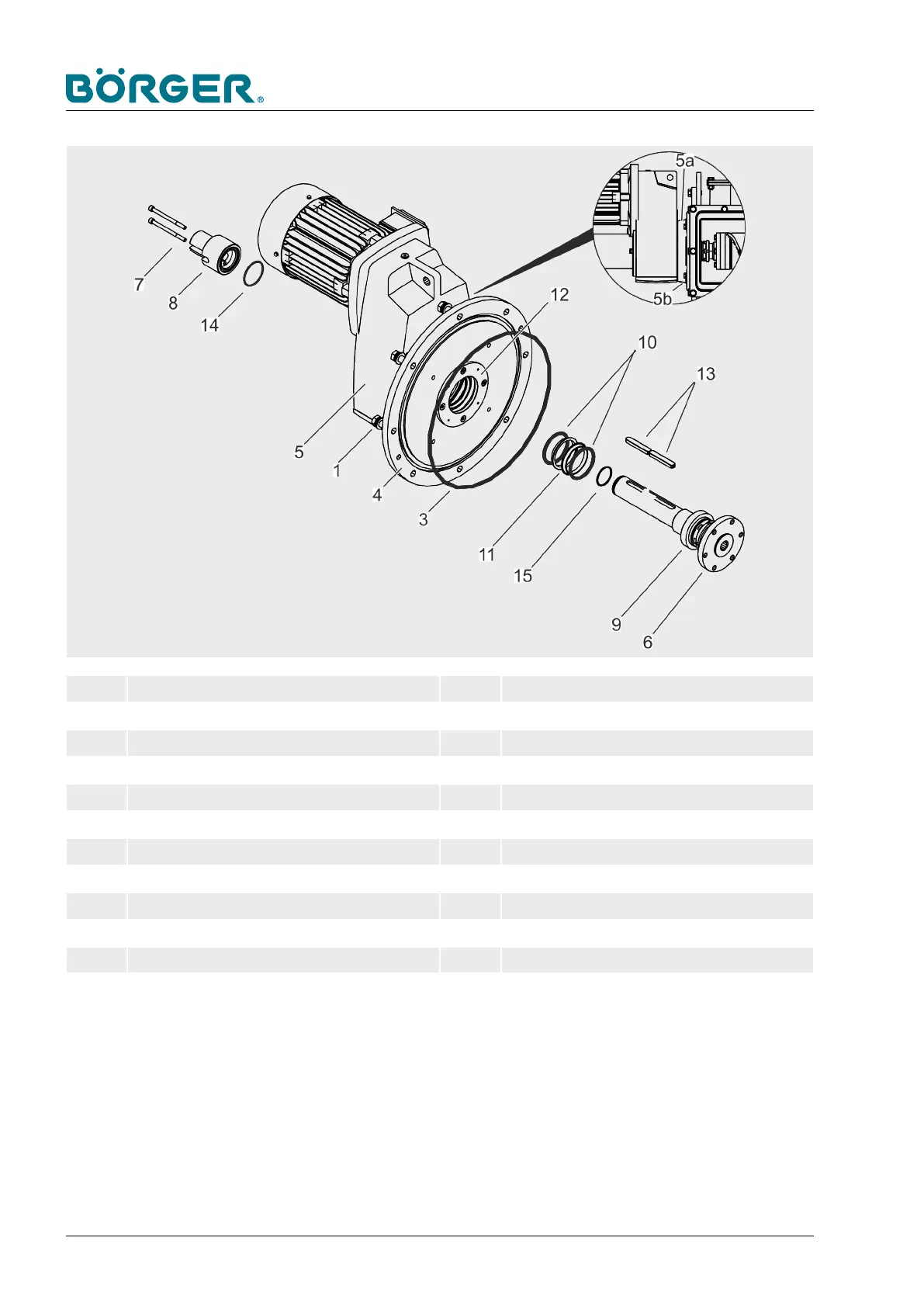

1 Hexagon head screws with washers (8x) 11 Mechanical seal
3 O-ring 12 Stationary seal holding bush
4 Motor plate 13 Parallel key A 14x9x80
5 Parallel shaft helical gear motor 14 O-ring 60
5a safety plug 15 O-ring 60
5b Screw plug 16 Hexagon head screws
6 Drive shaft with flange 17 Drive flange
7 Hexagon socket head cap screw, M8 18 Hexagon head screws with washers
8 Spring guide bolt 19 Cover for maintenance opening
9 Rotating seal holding bush, FL with thread 20 O-ring
10 O-ring
A long service life of the mechanical seal can be expected, if the
unit is used as intended and the limits are not exceeded. The
mechanical seal only needs to be replaced if substrate has entered
the intermediate chamber and the quench fluid runs out, e.g. after
feeding aggressive substrates or substrate admixtures that have
attacked the O-rings of the mechanical seal or the mechanical
seal.
Maintenance and repairs
