6.3.2 Removing/repairing the clamping unit
CAUTION!
Risk of injury due to tensioned spring!
During dismantling of the clamping unit, compression spring ten-
sion can be released uncontrollably.
— Release the spring tension before starting work on the
clamping unit!
— Only perform work at the clamping unit as described in this
operating manual!

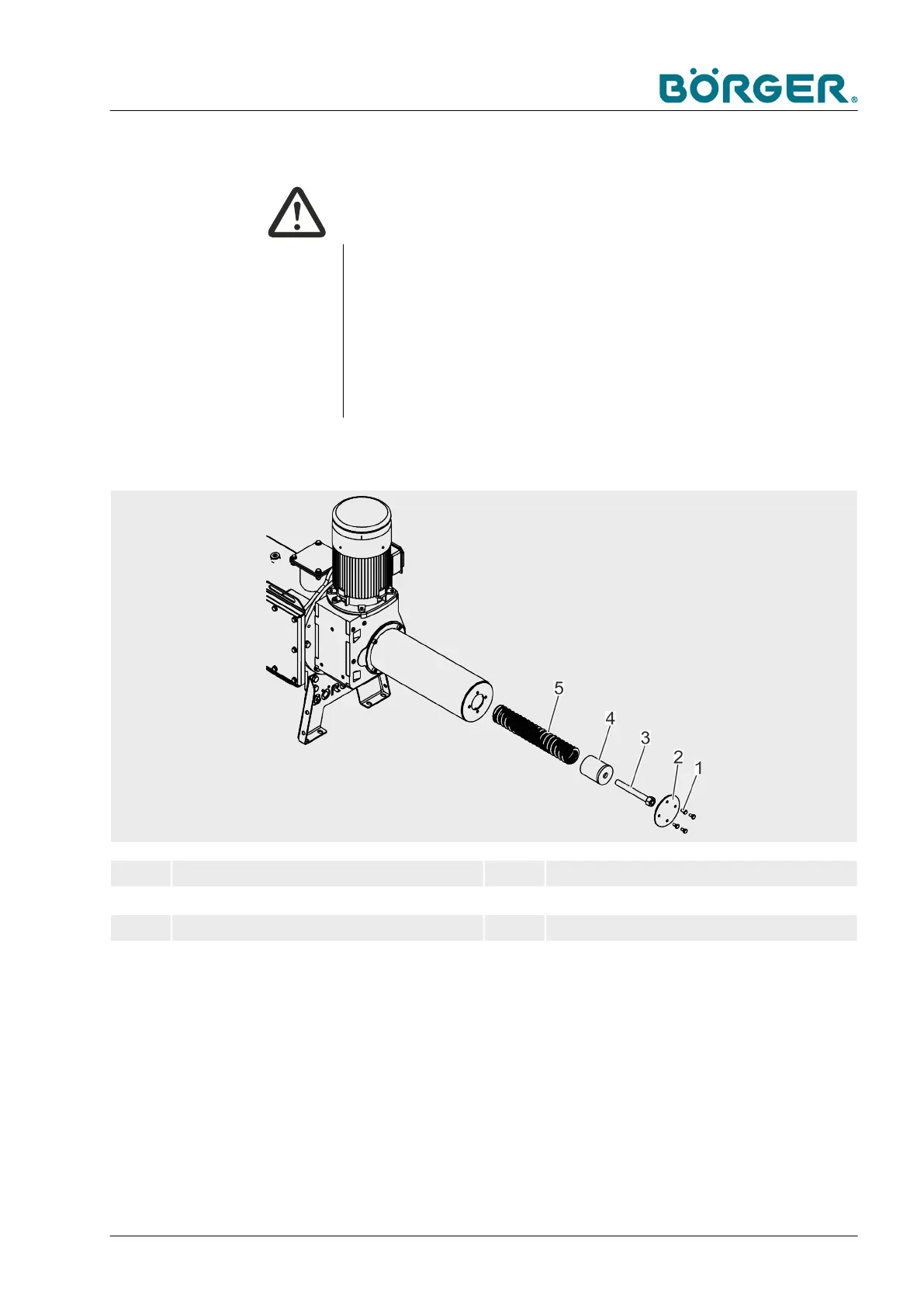

Clamping unit with mechanical adjustment
1 Hexagon head screw 4 Roll pin
2 Cover plate 5 Tension spring
3 Clamping screw
— Read and follow the safety instructions detailed in
Ä
Chapter
2.12 “Safety instructions for maintenance and rectifying mal-
functions” on page 37.
— Empty the Börger machine as described in
Ä
Chapter 6.3.1
“Notes on repair work” on page 129.
— Shut down the Börger machine and downstream and upstream
system components as described in
Ä
Chapter 5.4 “Down-
times” on page 100.
