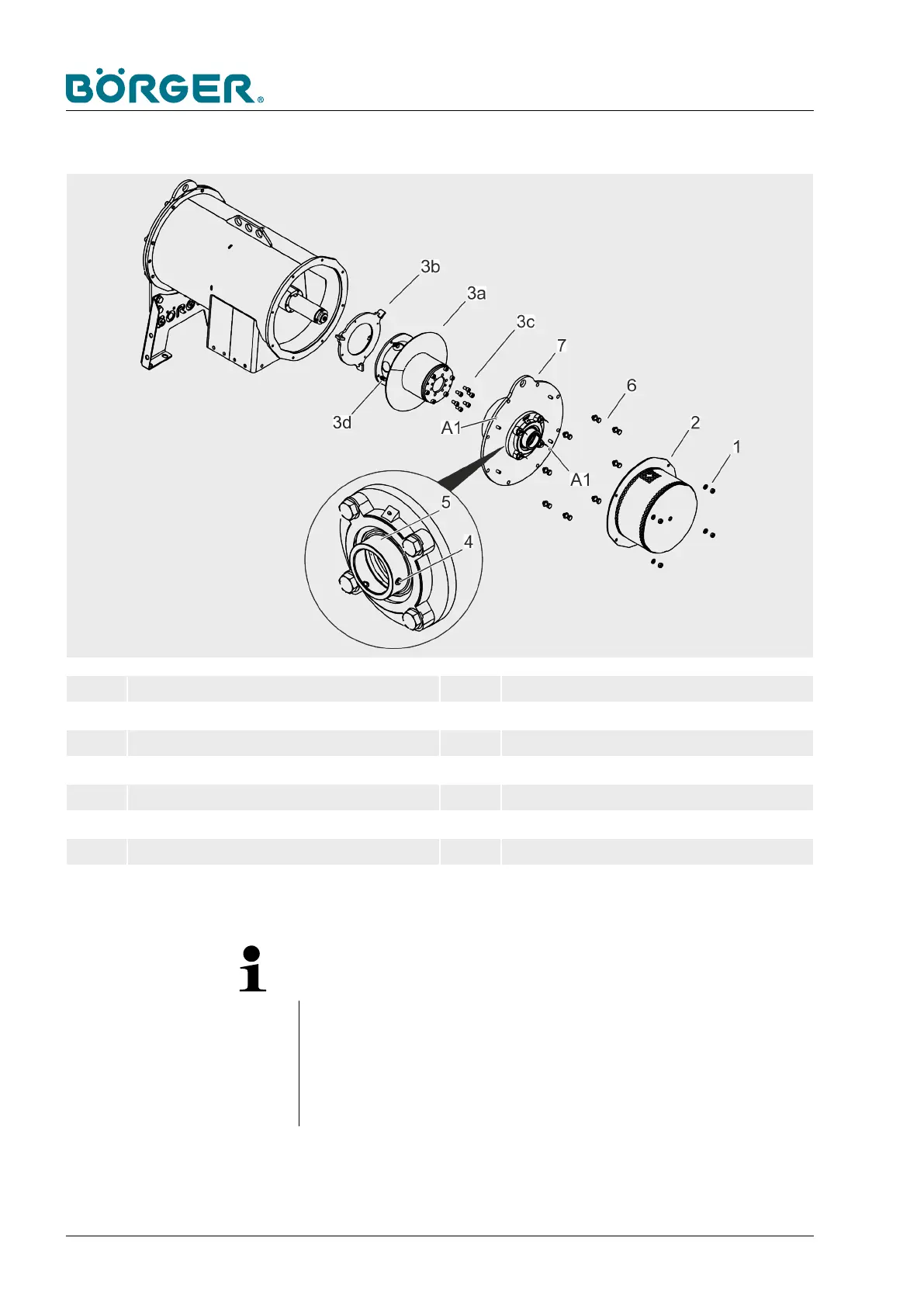

6.3.4 Changing the Multi Disc plate
1 Hexagon nuts with washers 6 Hexagon head screws with washers
2 Counter bearing cover 7 Counter bearing plate
3a Multi Disc cap 8 Hexagon head screw
3b Multi Disc plate with peeling tabs 9 Cover plate
3c Hexagon socket head cap screws with washers 10 Clamping screw
3d Hexagon head screws with washers A1 Jacking thread - Multi Disc cap
4 Grub screw A1 Jacking thread - Counter bearing plate
5 Counter bearing inner ring AH Drive sleeve
NOTE!
Replacement of the Multi Disc plate
Check the wear limit for the Multi Disc plate!
— The peeling tabs of the Multi Disc plate should have a residual
height of at least 2.5 mm!
— Otherwise, replace the Multi Disc plate!
Maintenance and repairs
BA-RC40_EN, 17.01.2024www.boerger.de / www.boerger.com146
