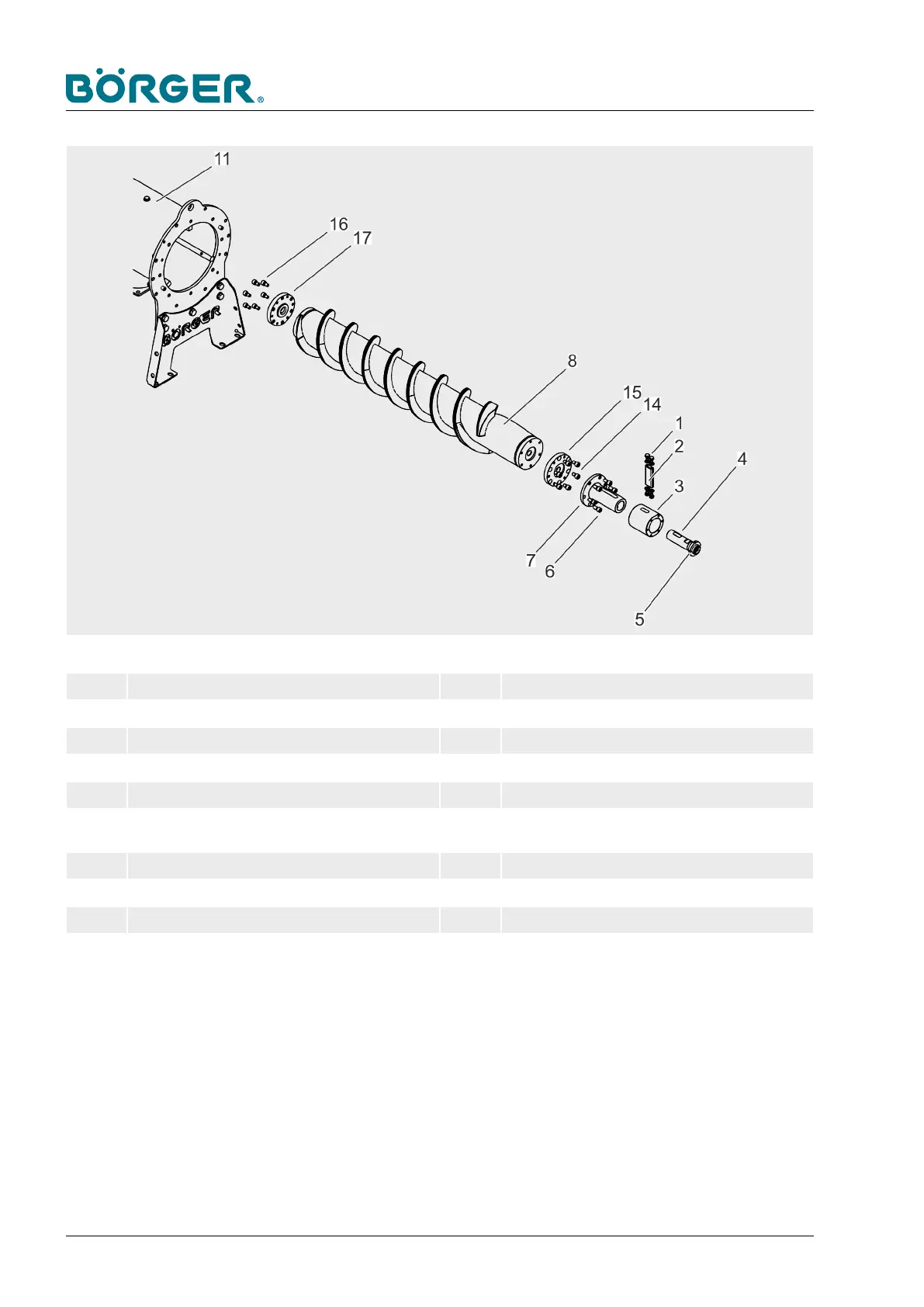

1 Hexagon head screws with washers 10 Cover for maintenance opening
2 Drive block 11 Pipe casing
3 Drive sleeve 12 Hexagon head screws
4 Drive pin with slotted nuts 13 Drive flange
N Slotted nut 14 Hexagon socket head cap screws
6 Hexagon socket head cap screws with washers
(2x)
15 Auger adapter
7 Mounting flange 16 Hexagon socket head cap screws
8 Brush auger 17 Auger adapter
9 Hexagon head screws with washers 18 O-ring
S Wrench flats
Tool:
n
Torque wrench
n
Hoists
Maintenance and repairs
