Printer Settings using Jumpers
Notes:
– The jumpers BR2, BR3 and BR4 must not be inserted if connecting to the FPA-5000.
– Caution: Inserting jumper BR1 changes the character set from Western to Cyrillic.

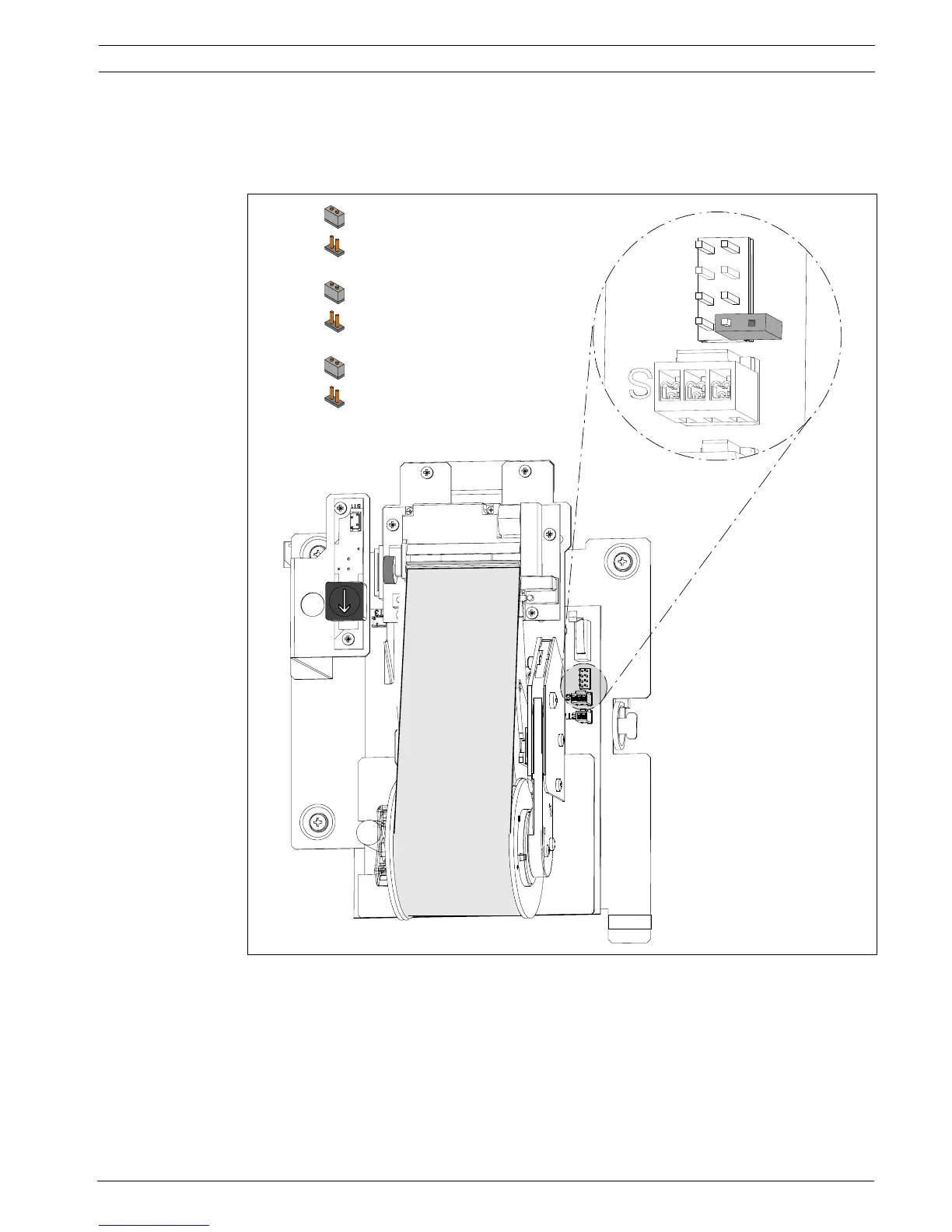

Figure 4.87 THP 2020 A jumpers
=
= A, B, C, D
(Western)
= Б, И, Ф, Ш
(Русский)
BR1
BR2
= 2400 bit/s (UEZ 2000)
= 9600 bit/s
(FPA-5000)
BR4
= DR 2020
= THP 2020 A
(FPA-5000)
BR1
BR2
BR3
BR4
