144 en | Installation Modular Fire Panel
F.01U.028.089 | 8.0 | 2011.07 System Description Bosch Sicherheitssysteme GmbH
Wiring
1. Place the shield wire on the support point (step 1)
2. Secure the cable with cable ties (step 1 to 4).

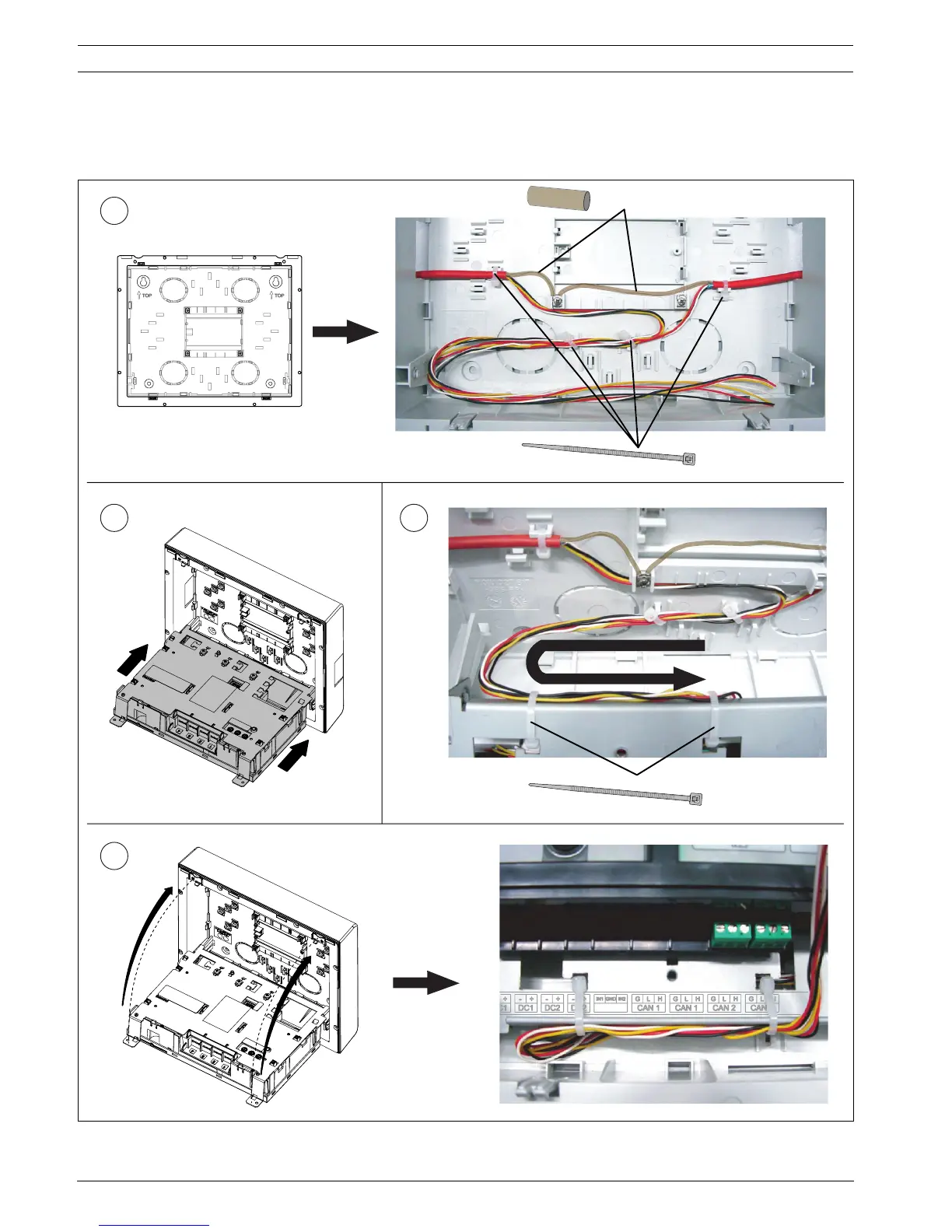

Figure 4.99 FMR-5000 wiring
1
SHIELD
4x
2x
2
3
4
