Bus Topology
In bus topology, the CAN cable is always connected to the same CAN terminals:
–CAN1 ⇒ CAN1 for non-redundant bus
–CAN2 ⇒ CAN2 for redundant bus

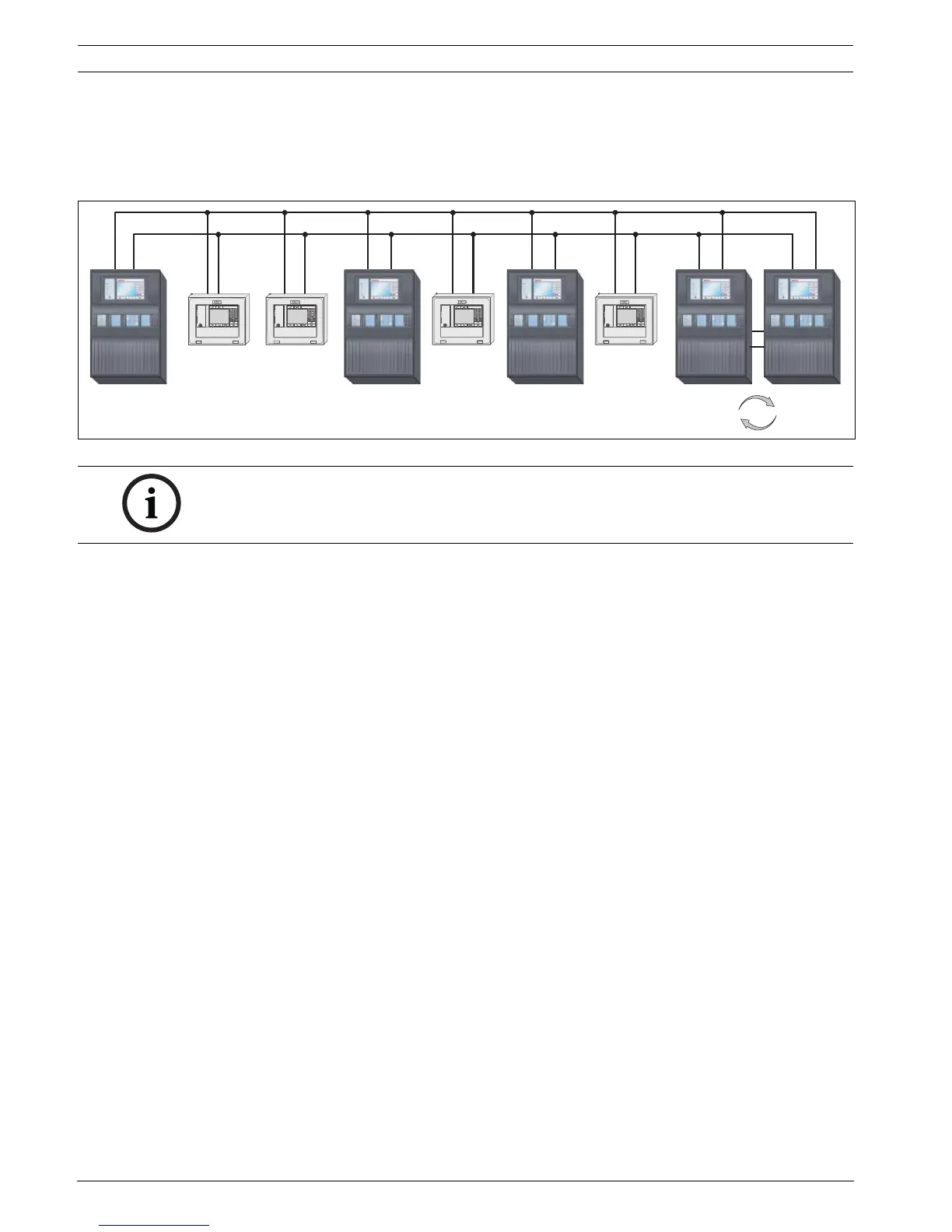

Figure 3.1 Network (redundant bus topology) with a redundant panel (8/8*)
1
23
8*
57
46 8
NOTICE!
The maximum cable length is 1000 m, from the first to the last node. The cable length
depends on the cable cross section and the number of nodes.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
