Brother DCP-8152DN User Manual

3-56
Confidential
<Non touch panel models>

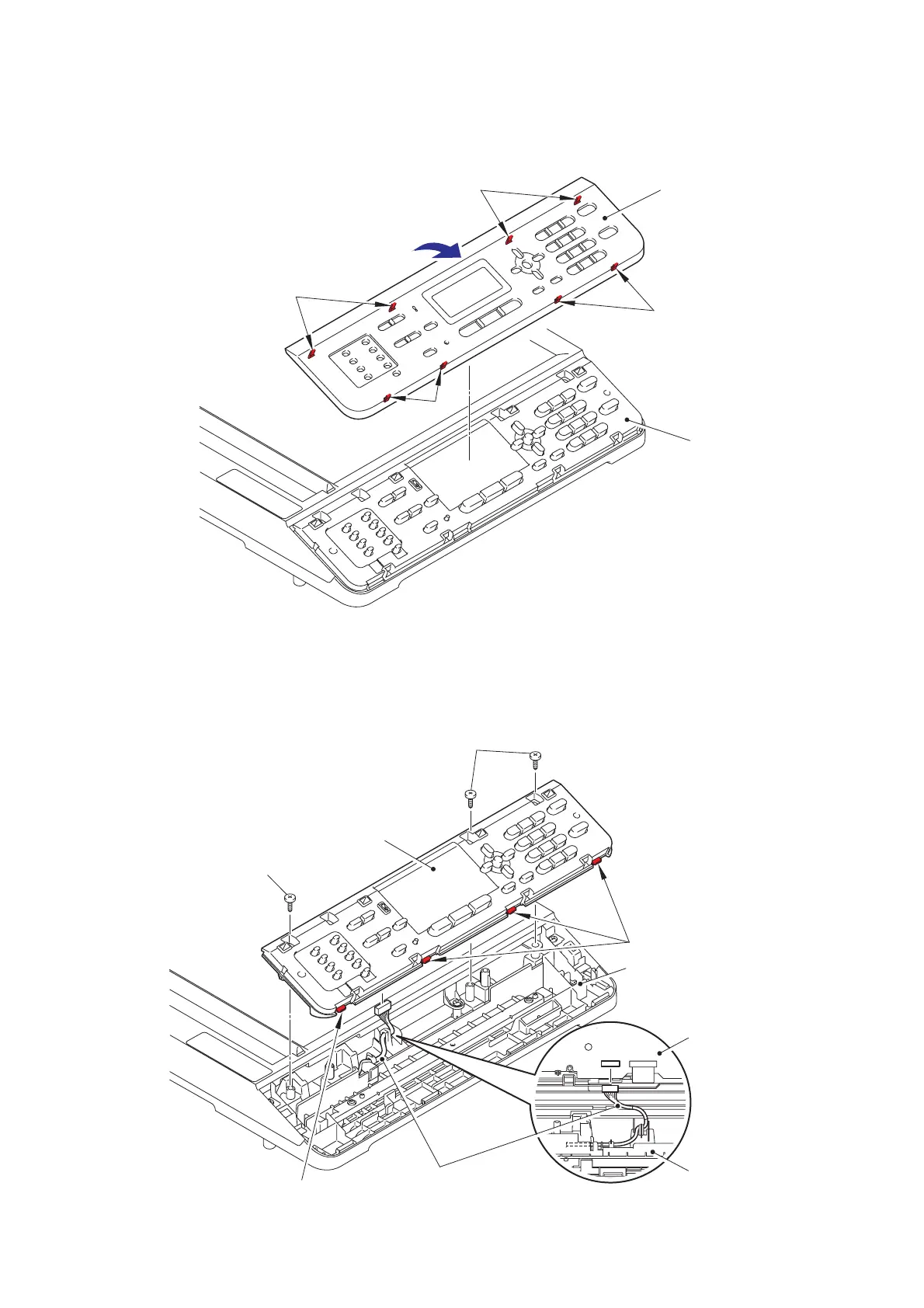

(1) Release the eight hooks, and remove the panel cover from the control panel ASSY.
Fig. 3-71
(2) Remove the three taptite bind B M4x12 screws from the control panel ASSY.
(3) Release the four hooks, and remove the control panel ASSY from the machine.
(4) Remove the panel PCB harness from the panel PCB ASSY.
Fig. 3-72
Hooks
Hooks
Hooks
Hooks
Panel cover
Control panel
ASSY
Taptite bind B M4x12
Control panel ASSY
Taptite bind B M4x12
Hooks
Machine
Panel PCB ASSY
Machine
Panel PCB harness
Hook
