Brother DCP-8152DN User Manual

3-57
Confidential

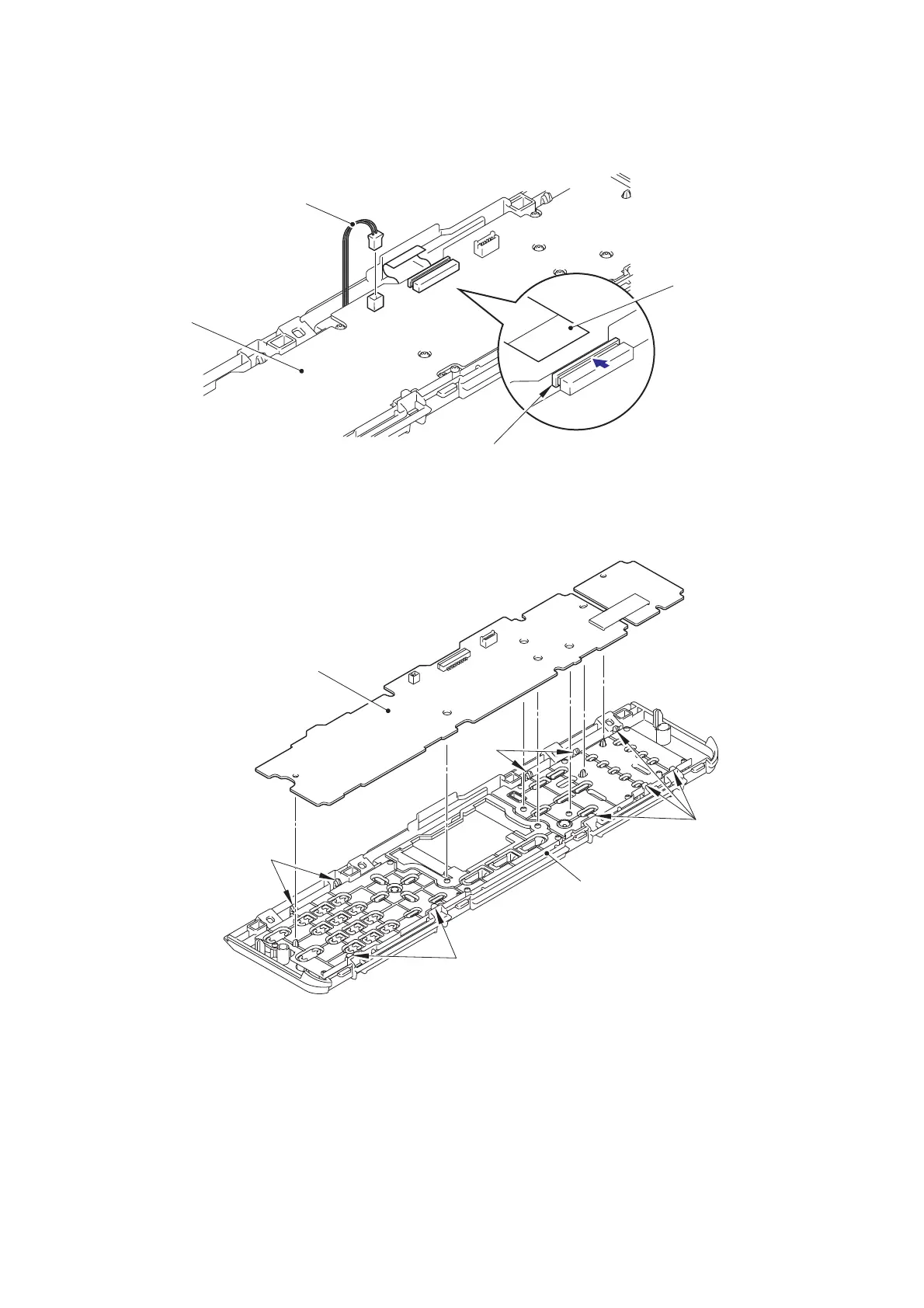

(5) Release the lock, and disconnect the LCD flat cable from the panel PCB ASSY.
(6) Disconnect the back light harness from the panel PCB ASSY.
Fig. 3-73
(7) Release the ten hooks (six for DCP models), and remove the panel PCB ASSY from the
control panel ASSY.
Fig. 3-74
LCD flat cable
Back light harness
Panel PCB ASSY
Lock
Panel PCB ASSY
Hooks
Hooks
Hooks
Control panel ASSY
Hooks

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
