3-64
Confidential

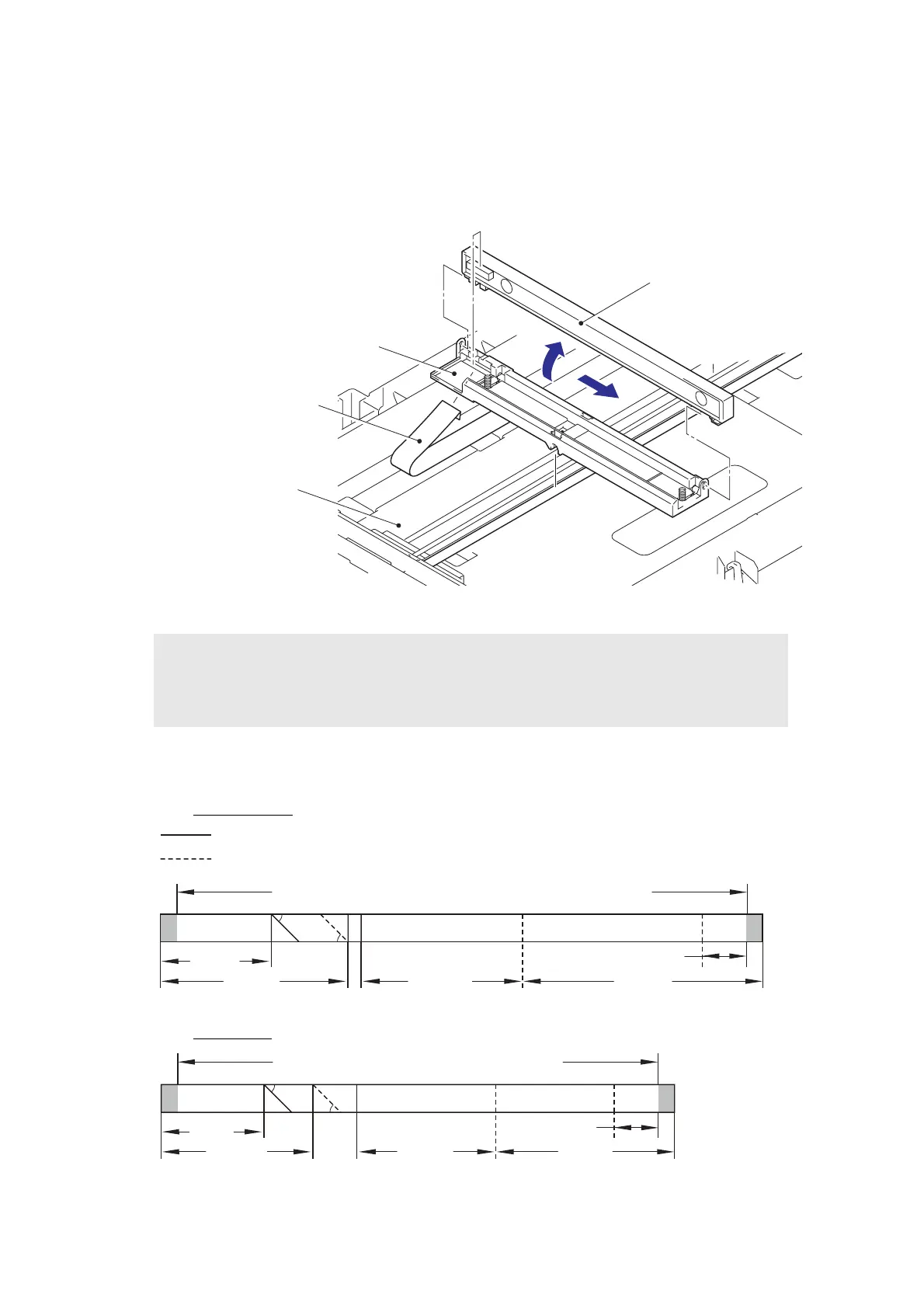

(6) Raise the first side CIS unit from the CIS carriage for 90 degrees, and slide the first side
CIS unit in the direction of the arrow to remove it. Remove the first side CIS flat cable
from the first side CIS unit.
(7) Pull out the first side CIS flat cable from the CIS carriage, and remove it from the
document scanner bottom cover ASSY.
Fig. 3-86
<Attachment Procedure>
1) Fold the first side CIS flat cable as shown in the illustration below.
Legal models
Fig. 3-87
A4 models
Fig. 3-88
Assembling Note:
• The first side CIS flat cable may have been damaged when the first side CIS unit was
replaced. Be sure to replace the first side CIS flat cable with a new one. Follow the
procedure below to attach the new first side CIS flat cable.
First side CIS unit
CIS carriage
First side CIS flat cable
Document scanner
bottom cover ASSY
Mountain fold
Fold at the edge of reinforcing plate
93mm
140mm
27mm
Valley fold
Fold at the edge of reinforcing plate
210mm 312mm
45°
45°
Reinforcing
plate
To be
connected
to main
PCB
Reinforcing
plate
To be
connected
to CIS unit
Fold at the edge
of reinforcing plate
Fold at the edge
of reinforcing plate
88mm
118mm 196mm
27mm
45°
45°
Reinforcing
plate
Reinforcing
plate
265mm
To be connected
to CIS unit
To be
connected
to main
PCB

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
